200mm Height Magnetic Separator Conveyor , Magnetic Pulley Separator RCYD Series

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO9001:2008
Model Number: RCYD-8
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Self-Cleaning Permanent Magnet Separator RCYD)
Supply Ability: 90 Perch/Perches per Month self-cleaning permanent magnet separator rcyd
Condition: New Type: Magnetic Separator, Permenent Type
Power(W): 2.2KW Dimension(L*W*H): 2350*1280*796mm
Weight: 1790kg, 1790kg Product Name: Self-Cleaning Permanent Magnet Separator RCYD
Color: Red Unload Trigger Spec.: 2.7
Duty Cycle: TD-100% Belt Width: 800mm
Standard Erection Height: 250mm Dimension: 2350*1280*796mm
Application: Applied For Power Industry,metallurgical Industry,etc. Warranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machinery Overseas Port: Shanghai/Shenzhen/Guangzhou
High Light:

permanent magnet alternator

,

small strong magnets

Self-Cleaning Permanent Magnet Separator  RCYD Series



--Self-unloading Permanent Type RCYD Series



Product Description

Brief Introduction :



Self-discharge permanent-magnet separator series RCYD is energy

economizing type separator equipment using the latest third generation rare-earth permanent-magnet material NdFeB to form magnetic system which produces strong magnet field attraction.

This product series links up with transferring equipments to form  a  complete set to remove the

 iron magnetic materials under weight of 0.1-25kg mixed among the non-magnetic materials.



Application:



It can be used for improving the material quality and purification as well as recovering the magnetic

materials. This product series is widely applied for power industry, metallurgical industry, mining  industry,

papermaking industry, building industry, food industry, cement industry, coal picking-up industry, chemical

industry and so on.



Features:

  • High magnetic field intensity, usually used in occasions with plenty of iron.
  • The wholly sealed structure makes the separator water-proof, dust-proof and corrosion resisting.
  • Made of rare earth NdFeB
  • High gauss
  • Energy saving
  • Easy to install and convenient to use.
  • High efficiency and stable performance.
  • Good operational reliability and flexibility

Technical Data:



(Power-on sustaining rate TD-100%)



Mode

Usable belt

width (mm)

Standard erection

height(mm)

Mass(kg) Overall dimension(mm)

Unload

trigger

spec.

Driving motor

power(kw)

A B C D E
RCYD-6 650 200 880 2100 950 420 888 900 2.7 2.2
RCYD-8 800 250 1790 2050 1105 650 1038 1280 2.7 2.2
RCYD-10 1000 300 3060 2240 1310 785 1238 1370 3.3 2.2
RCYD-12 1200 350 4680 2440 1585 875 1512 1350 3.3 4
RCYD-14 1400 400 6600 2700 1765 970 1690 1550 4.1 4
RCYD-16 1600 450 8060 2900 1965 1050 1890 1750 4.2 4
RCYD-18 1800 500 10250 3150 2230 1150 2150 1960 6.8 5.5
RCYD-20 2000 500 12850 3380 2460 1280 2380 2170 16 5.5



Overall Dimension Drawing :

200mm Height Magnetic Separator Conveyor , Magnetic Pulley Separator RCYD Series 0



200mm Height Magnetic Separator Conveyor , Magnetic Pulley Separator RCYD Series 1200mm Height Magnetic Separator Conveyor , Magnetic Pulley Separator RCYD Series 2

200mm Height Magnetic Separator Conveyor , Magnetic Pulley Separator RCYD Series 3

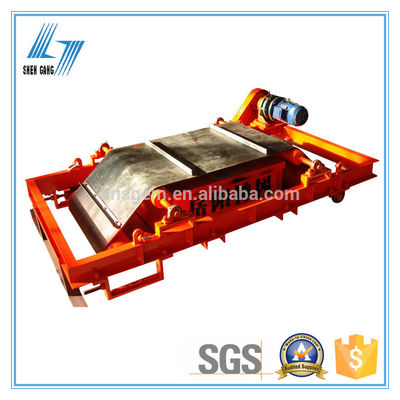

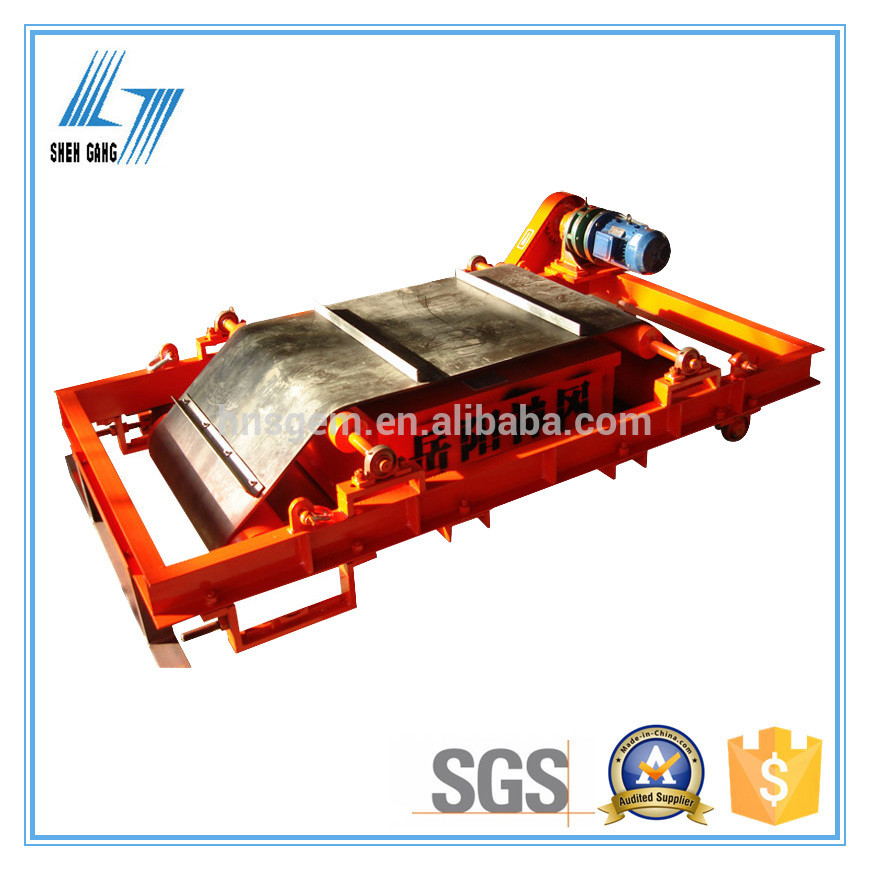

Physical Product Photo:



200mm Height Magnetic Separator Conveyor , Magnetic Pulley Separator RCYD Series 4



200mm Height Magnetic Separator Conveyor , Magnetic Pulley Separator RCYD Series 5



FAQ

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.what kind of material need to process separation?



2.does it work with belt? if yes, how about the belt width? belt speed?



3.how about the handling capacity you require? and the separation material size?



4.do you need self-discharging type or manual discharge type?



5.rectangular shape or round shapepermanent magnet type or electromagnet type?



For our relate products you may interested in, kindly click for details:



1. Manual Discharging Type Rectangular Electromagnetic Separator



2. Manual Discharging Type Circular Electromagnetic Separator



3. Self-Discharging Conveyor Belt Electromagnetic Separator



 4Self- Discharging Oil Cooling Type Rectangular Electromagnetic Separator



5. Manual Discharging Type Rectangular Permanent Magnetic Separator



6. Self-discharging Type Conveyor Belt Permanent Magnetic Separator



7. Lifting Electromagnet for Billet Lifting



8. Lifting Electromagnet for Sheet Plate





*Lifting Magnet Series:

--application for transporating steel scraps, steel plates, billets,etc.

200mm Height Magnetic Separator Conveyor , Magnetic Pulley Separator RCYD Series 6

*Cable Reel Series:

--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..

200mm Height Magnetic Separator Conveyor , Magnetic Pulley Separator RCYD Series 7

Company Information

We are a professionl lifting electromagnet equipment manufacturer and exporter. Very sincerely looking for long-term win-win business here!



Major exports include lifting electromagnet, magnetic lifter, electromagnetic separator, cable reel, control cabinet and magnetic stirr, etc. with more than 15 years export experience.



Our factory also pass the SGS audit per year with certification issued.



We warmly welcome you to enquiry or visit us, and also appreciate any of your comments!



We also have our own brand as "SHENGANG"



200mm Height Magnetic Separator Conveyor , Magnetic Pulley Separator RCYD Series 8 200mm Height Magnetic Separator Conveyor , Magnetic Pulley Separator RCYD Series 9

200mm Height Magnetic Separator Conveyor , Magnetic Pulley Separator RCYD Series 10200mm Height Magnetic Separator Conveyor , Magnetic Pulley Separator RCYD Series 11

Packaging & Shipping

 (fixed iron frame with five-plywoodboard packing to keep self-cleaning permanent magnet separator rcyd with a safety and long-distance transportation and no need fumigation when clear custom )
