2018 High Efficient Automatic Magnetic Separator

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO9001
Model Number: RCDD-5
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Automatic Magnetic Separator )
Supply Ability: 80 Piece/Pieces per Month Automatic Magnetic Separator
Condition: New Type: Magnetic Separator, Electromagnet Type
Production Capacity: Based On Customer Work Condition Voltage: DC-110V, DC-110V
Power(W): 1.4kw Dimension(L*W*H): 2020*1040*775mm
Weight: 1160kg, 1160kg Product Name: Automatic Magnetic Separator
Color: Red Belt Width: 500mm
Power: 1.4kw Duty Cycle: TD-100%
Standard Erection Height: 170mm Application: Magnet Separator To Remove Magnetic Tramp Iron From Material Bed
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
Port: Shanghai/Shenzhen/Guangzhou
High Light:

permanent magnet alternator

,

magnetic lifting tool

2018 High Efficient Automatic Magnetic Separator

Product Description

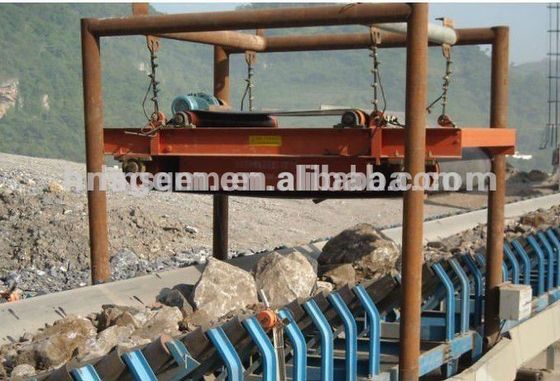

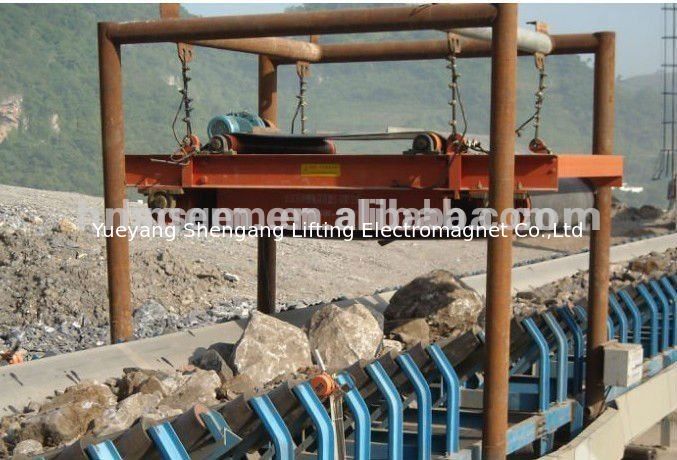

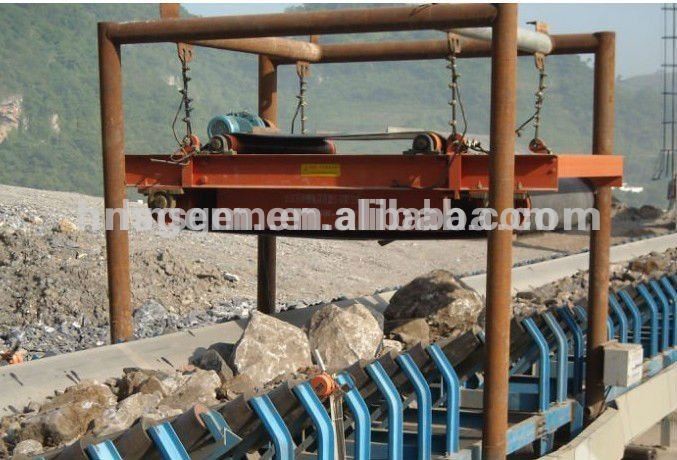

RCDD series is self-unloading type magnet separator in long-term system. It is added platform, iron removing belt and etc, which is suspended over the belt conveyer. Through the conveyance of the iron unloading belt, the separator will auto discarge the iron magnetic articles which are absorbed by the magnet into the iron collecting box. Thus removing the iron magnetic articles is gained. Which is the one of the most common used types of separator.

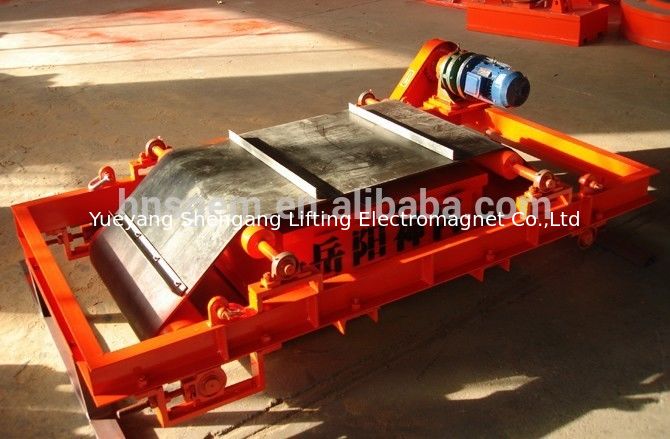

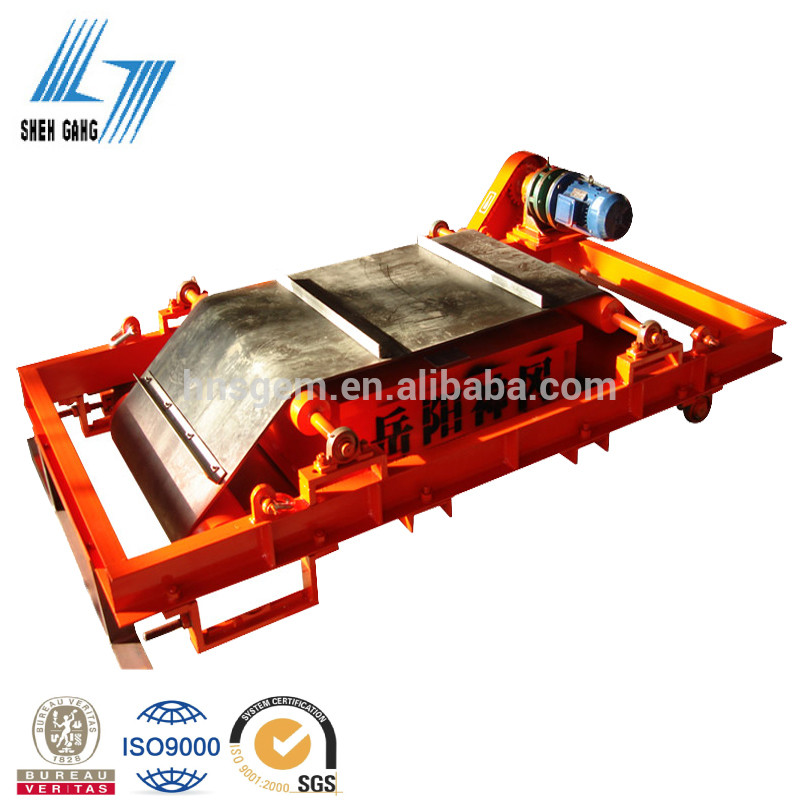

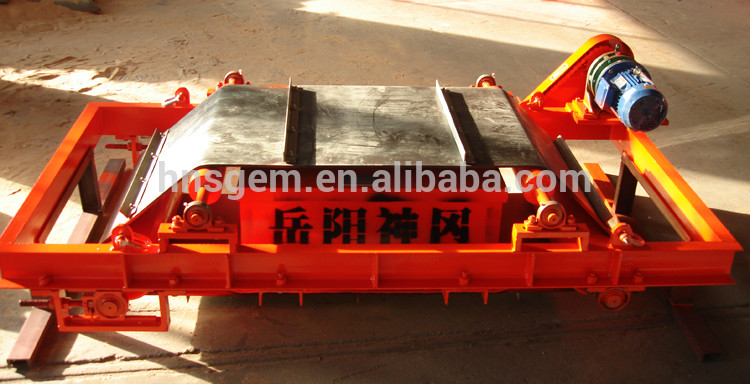

2018 High Efficient Automatic Magnetic Separator 0

2018 High Efficient Automatic Magnetic Separator 1

Product NameSelf-discharge Automatic Magnetic Separator
Series No.RCDD Series (Self-Discharge Magnetic Separator)
Belt Width500mm
Hanging Height160mm
Cold State Power1.03KW
Rated VoltageDC-110V
Duty Cycle100%
Weight1074KG
Cooling TypeAir Cooling Magnetic Separator
CompositeIron core, aluminum coil,Q235 steel plate, motor, belt,carbon steel,mica sheet,ethoxyline resin,etc.
Pakaging of Magnetfixed iron frame with five-plywoodboard and no need fumigation
Lead Timewithin 15 work days after deposit cofirmed
PaymentT/T, Western Union, LC at sight
Warranty12 months
Notes  1. Please let us know your belt width, separate material,we can make different dimension magnet based on your different requirements.
 2. Our MOQ is 1 set. (Different quantity will with different price.)



Series No.: RCDD

Keywords: Self-discharge Conveyor Belt Magnetic Separator



Application:
RCDD series used for removing iron magnetic articles from thicker bed and granularity of the materials as ores, coal, hard coke, limestone, spells, etc.



Classification:
--Electromagnetic Type (with control panel)
--Permanent Type (without control panel)

Discharging Type

--Manual Discharge Type (without motor and belt)

--Self-Discharging Type (with motor and belt)



Cooling Type:
--Air Cooling
--Oil Cooling

--Fan Cooling

International

Standard

model

Standard

Erection T(mm)

width of Conveyer belt(mm)

Rated voltage

(v)

Cold

state

Consumption

Power(kw)

Weight

(kg)

Overall dimension (mm)

Driving

Motor

capacity

(kw)

Corollary control

panel

ABCDEF
RCDD-51605001101.0310742300133011009145005201.5SSTM-1.5D1-D
RCDD-61705001101.4116024001400115010686505201.5
RCDD-62206501101.8133024001250125011206505551.5SSTM-3.1D1-D
RCDD-82508001102.6147027501600136012708005802.2
RCDD-82508001102.9200027501770146514809006252.2
RCDD-1026010001102.9200029001770146514809006252.2SSTM6.2D1-D
RCDD-1231012002204.22700320020001590168010006254
RCDD-1641016002208.26020380026201850199014007254SSTQ-12D1-D
Company Information

2018 High Efficient Automatic Magnetic Separator 2

2018 High Efficient Automatic Magnetic Separator 3



2018 High Efficient Automatic Magnetic Separator 4

We provide professional service for customers from over 30 countries. And we exported our main products as lifting magnet, cable reel, magnetic separator to the market as North America, South America, Europe, Southeast Asia/ Mideast,Africa, Australia and so on.



We are also looking for clients in different market to agent our products.Once you have interesting, welcome to contact with us at your convenient time.

Packaging & Shipping

2018 High Efficient Automatic Magnetic Separator 5

(fixed iron frame with five-plywoodboard packing to keep Automatic Magnetic Separator with a safety and long-distance transportation and no need fumigation when clear custom )

FAQ

 2018 High Efficient Automatic Magnetic Separator 6

2018 High Efficient Automatic Magnetic Separator 7

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :



1.what kind of material need to process separation?

2.does it work with belt? if yes, how about the belt width? belt speed?

3.how about the handling capacity you require? and the separation material size?

4.do you need self-discharging type or manual discharge type?

5.rectangular shape or round shape? permanent magnet type or electromagnet type?
