220V AC Motorized Cable Reel Steadily Electric Continuously Energy Universal

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG 220v Power Cord Cable
Model Number: JTB100-25-2 220v Power Cord Cable
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(220v Power Cord Cable)
Supply Ability: 100 Piece/Pieces per Month 220v Power Cord Cable
Product Name: 220v Power Cord Cable Reel AC Power Cord Cable Series: JTB Type
Type: Slip Ring Exterior Installed Current: 77A
Color: Blue Cable Length: 25m
Weight: 100kg Installation Patterns: Vertical Coiling Through Radial Reversing Wheel
Phase Number: 2 Application: Elastic Power Supply Cable Reel
Port: Shanghai/Shenzhen/Guangzhou
High Light:

retractable cord reel

,

industrial hose reel

220v Power Cord Cable Reel AC Power Cord Cable





Product Description

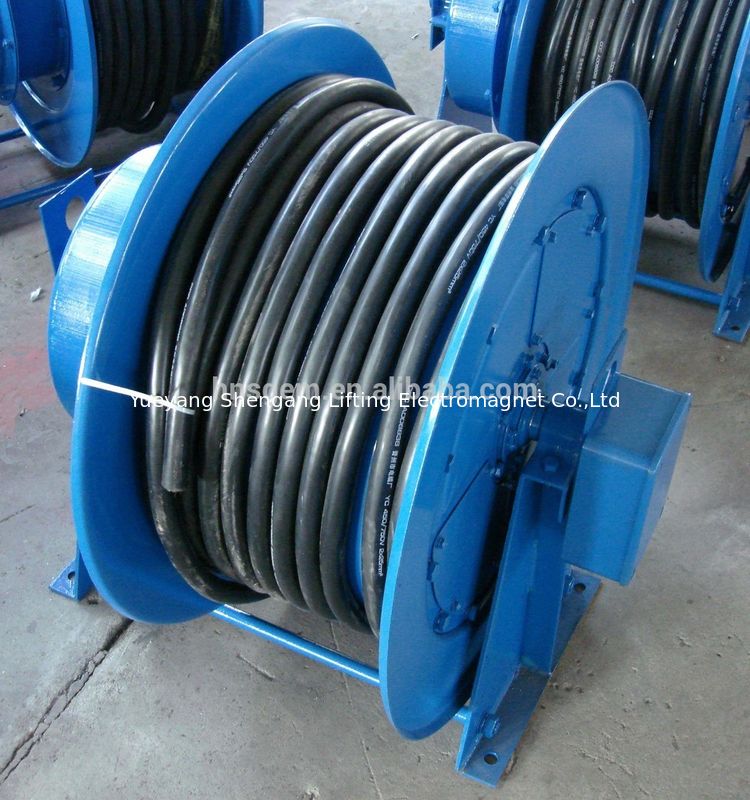

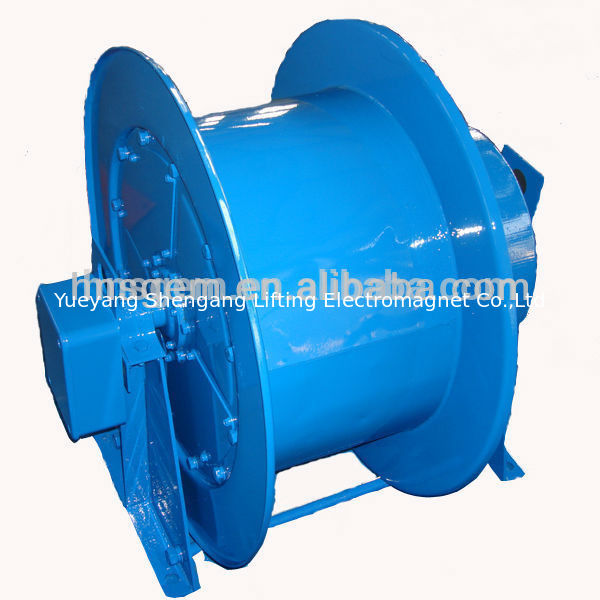

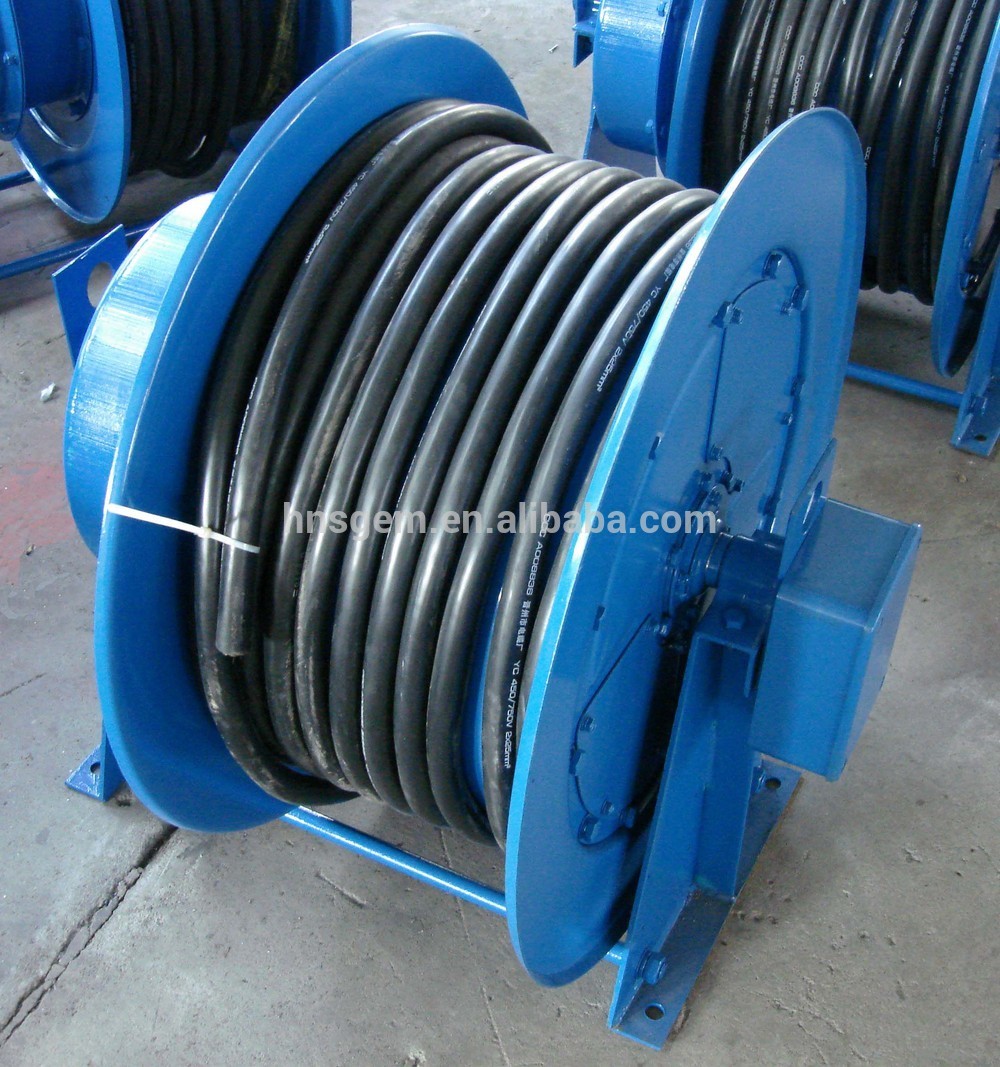

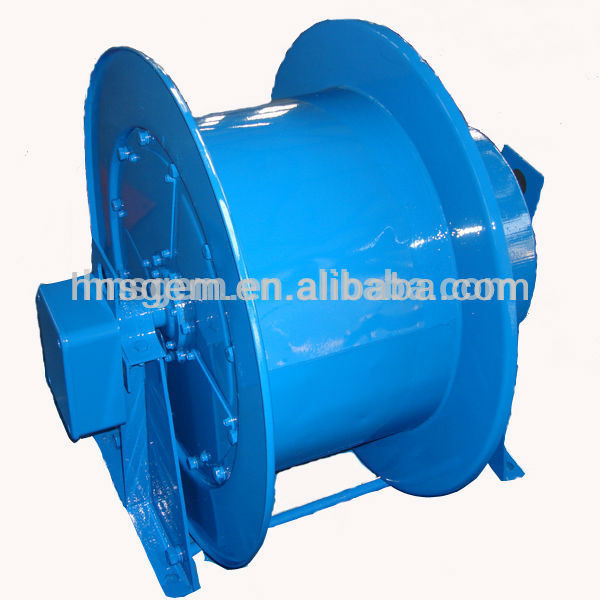

 Physical Product Photo :



220V AC Motorized Cable Reel Steadily Electric Continuously Energy Universal 0     220V AC Motorized Cable Reel Steadily Electric Continuously Energy Universal 1



220V AC Motorized Cable Reel Steadily Electric Continuously Energy Universal 2

Brief Introduction:



We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this reel has two types available as: Spring Type & Electrical Powered Type.



Features:

  • Using spiral springs as power without electric energy consumption to keep reliable in operation
  • Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
  • Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
  • Power supply easily, safety and reliability in operation, correct strs on the cables

Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself. There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service; over hanging type which can coil up much longer cables.



Benifits:

  • Easy installation and start of operation
  • Corrosion and water proof
  • Silver brush would prevent and reduce the noise by conductors friction

Technical Data:



Series item A B C D1 D2 d E F W Weight(kg)
15m,20m
Series
1 300 360 400 500 700 15 440 600 250 95
2 490 650 300 100
3 560 720 250 115
4 610 770 300 120
5 720 880 300 150



Cable Model Enabled Current   15m Series item 20m Series item 25m Series item
Core No.*Cross Section Continuously 1 min on/off
YC2*10 58 75 JTA75-15-2 1 JTA75-20-2 1 JTA75-25-2 2
JTB75-15-2 JTB75-20-2 JTB75-25-2
YC2*16 77 100 JTA100-15-2 1 JTA100-20-2 3 JTA100-25-2 2
JTB100-15-2 JTB100-20-2 JTB100-25-2
YC2*25 106 135 JTA135-15-2 4 JTA135-20-2 4 JTA135-25-2 3
JTB135-15-2 JTB135-20-2 JTB135-25-2
YC3*10+1*6 50 65 JTA65-15-4 2 JTA65-20-4 4 JTA65-25-4 2
JTB65-15-4 JTB65-20-4 JTB65-25-4



 Overall Dimension Drawing:

 220V AC Motorized Cable Reel Steadily Electric Continuously Energy Universal 3



FAQ

 In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.Do you have special requirement about the power types?

spring type / motor powered/hysteresis?



2.What is the cable specification?

cable core number and cross section, coil length of cable, electric current)?



3. What kind of mobile equipment will the cable reel be applied with?

lifting magnet, crane or others



4. What kind of installation patterns you prefer?

Vertical coiling or Horizontal coiling?



For our relate products you may interested in, kindly click for details:



1. JTA Series Spring Driven Cable Reel



2. JT Series Hose Reel



3. Motor Type Cable Reel



4. Hyster Type Cable Reel



5. Motorized Couple Type Cable Reel



6. Magnetic Coupling Type Cable Reel







*Lifting Magnet Series:

--application for transporating steel scraps, steel plates, billets,etc.

220V AC Motorized Cable Reel Steadily Electric Continuously Energy Universal 4

*Cable Reel Series:

--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..

220V AC Motorized Cable Reel Steadily Electric Continuously Energy Universal 5

Company Information

We are a professionl lifting electromagnet equipment manufacturer and exporter with more than 15 years export experience. Very sincerely looking for long-term win-win business here!



Major exports include lifting electromagnet, magnetic lifter, electromagnetic separator, cable reel, control cabinet and magnetic stirr, etc.



Our factory also pass the SGS audit per year with certification issued.



We warmly welcome you to enquiry or visit us, and also appreciate any of your comments!



We also have our own brand as "SHENGANG"

220V AC Motorized Cable Reel Steadily Electric Continuously Energy Universal 6 220V AC Motorized Cable Reel Steadily Electric Continuously Energy Universal 7

220V AC Motorized Cable Reel Steadily Electric Continuously Energy Universal 8220V AC Motorized Cable Reel Steadily Electric Continuously Energy Universal 9

Packaging & Shipping

 (fixed iron frame with five-plywoodboard packing to keep 220v Power Cord Cable with a safety and long-distance transportation and no need fumigation when clear custom )

220V AC Motorized Cable Reel Steadily Electric Continuously Energy Universal 10

Our Services

 Quick Response:

We highly appreciate your any enquiry by email, fax or instant message.

We will reply your email or fax within 24 hours.

Please fell free to call us at any time if there is any questions.



Convenient Transportation:



All available shipping ways could be applied, by courier, air or sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you till the goods arrive.
