| Place of Origin: | Hunan, China (Mainland) |
|---|---|
| Brand Name: | SHENGANG |
| Certification: | ISO9001:2008 |
| Model Number: | MW5-110L/1 |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable |
| Packaging Details: | Standard export package ( 300kg Lifting Electromagnet ) |
| Delivery Time: | 5-10 working days after confirmed the order. |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 80 Piece/Pieces per Month 300kg Lifting Electromagnet |
| Condition: | New | Dimension(L*W*H): | Standard |
|---|---|---|---|
| Product Name: | 300kg Lifting Electromagnet | Shape: | Circular Magnet |
| Current: | 35A | Rated Voltage: | 220V |
| Power: | 7.7KW | Lifting Capacity For Steel Scrap: | 450/400kg |
| Lifting Capacity For Steel Ball: | 6500kg | Lifting Capacity For Cast Iron: | 1000/800kg |
| Weight: | 1350kg | Application: | Suitable For Transporting Steel Scraps Under Normal Temperature |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 12 Months |
| Port: | Any Port In China | ||
| High Light: | circular lifting magnet,magnetic lifting device |
||
300kg Lifting Electromagnet and Powerful Electromagnetic Lifting Device
1. It adopts a special magnetic circuit design which has large air space and magnetism density. It is made of aluminum wire or copper wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance and heat-proof. It also has the characteristics of light weight, low power consumption,high lifting capacity and long serving life.
2. This series has fine insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils.The insulation grade can reach class special C.
3. It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
4. With simple structure reliability, it is suitable for working with all kinds of lifting equipments
|
Product Name |
300kg Lifting Electromagnet ,Electromagnetic Lifting Device |
|
Series No. |
MW5 |
|
Diameter |
1100mm |
|
Current |
35A |
|
Cold State Power |
7.7KW |
|
Rated Voltage |
DC-220V |
|
Duty Cycle |
60% |
|
Weight |
1350KG |
|
Composite |
Iron core, aluminum coil,Q235 steel plate,carbon steel,mica sheet,ethoxyline resin,etc. |
|
Application |
Magnet used for lifitng and transporting magnet-conductive materials such as steels in metallurgy |
|
Pakaging of Magnet |
fixed iron frame with five-plywoodboard and no need fumigation |
|
Lead Time |
within 15 work days after deposit cofirmed |
|
Payment |
T/T, Western Union, LC at sight |
|
Warranty |
12 months |
|
Notes |
1. Please let us know your lifting capacity, we can make different diameter magnet based on your different requirements. |
Technical Data: (DC-220V, Duty Cycle:60%, Normal Temperature Type,Aluminum Coil)
|
Model |
Electric current |
Cold-state power |
lifting capacity (kg) cold/hot state |
Mass |
Overall dimension (mm) |
||||||
|
steel ball |
cast iron |
steel scrap |
A |
B |
C |
D |
E |
||||
|
MW5-70L/1 |
15 |
3.3 |
2500 |
380/200 |
120/100 |
490 |
700 |
800 |
160 |
90 |
30 |
|
MW5-80L/1 |
18 |
3.96 |
3000 |
480/250 |
150/300 |
620 |
800 |
800 |
160 |
90 |
30 |
|
MW5-90L/1 |
26.6 |
5.9 |
4500 |
650/440 |
250/200 |
800 |
900 |
1090 |
200 |
125 |
40 |
|
MW5-110L/1 |
35 |
7.7 |
6500 |
1000/800 |
450/400 |
1350 |
1100 |
1140 |
220 |
150 |
45 |
|
MW5-120L/1 |
45.5 |
10 |
7500 |
1300/1000 |
600/500 |
1700 |
1200 |
1100 |
220 |
150 |
45 |
|
MW5-130L/1 |
54 |
12 |
8500 |
1400/1100 |
700/600 |
2010 |
1300 |
1240 |
250 |
175 |
50 |
|
MW5-150L/1 |
71.2 |
15.6 |
11000 |
1900/1500 |
1100/900 |
2830 |
1500 |
1250 |
350 |
210 |
60 |
|
MW5-165L/1 |
75 |
16.5 |
12500 |
2300/1800 |
1300/1100 |
3200 |
1650 |
1590 |
370 |
230 |
75 |
|
MW5-180L/1 |
102 |
22.5 |
14500 |
2750/2100 |
1600/1350 |
4230 |
1800 |
1490 |
370 |
230 |
75 |
|
MW5-210L/1 |
129 |
28.4 |
21000 |
3500/2800 |
2200/1850 |
7000 |
2100 |
1860 |
400 |
250 |
80 |
|
MW5-240L/1 |
154 |
33.9 |
28000 |
4800/3800 |
2850/2250 |
9000 |
2400 |
2020 |
450 |
280 |
90 |

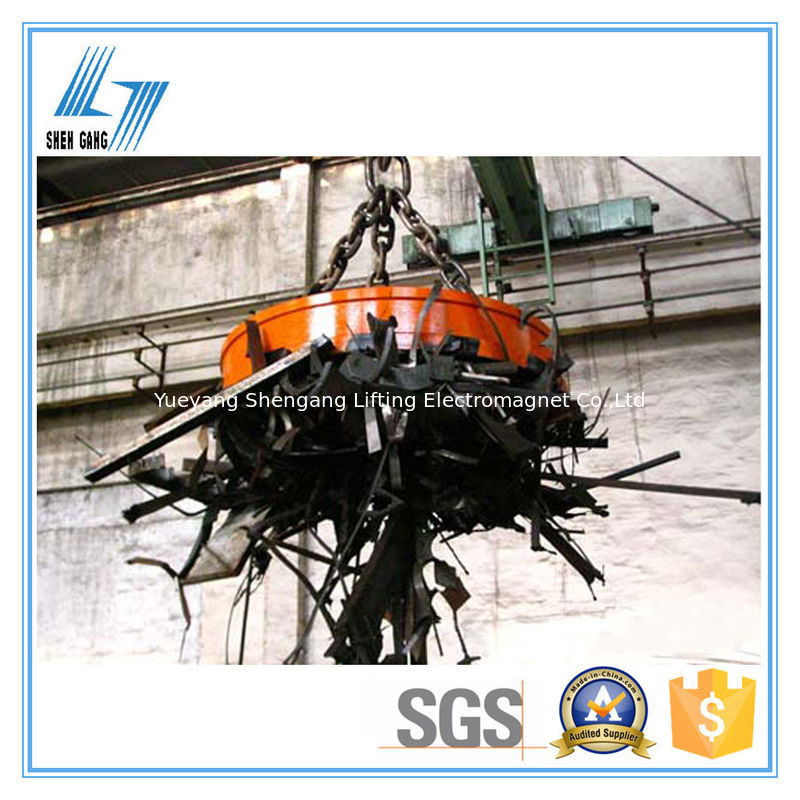

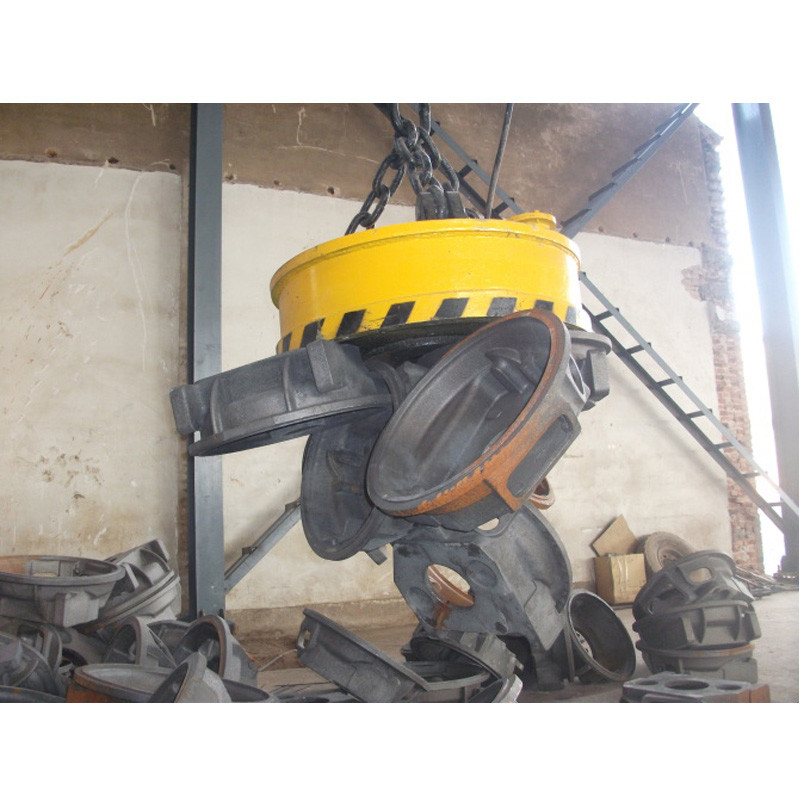

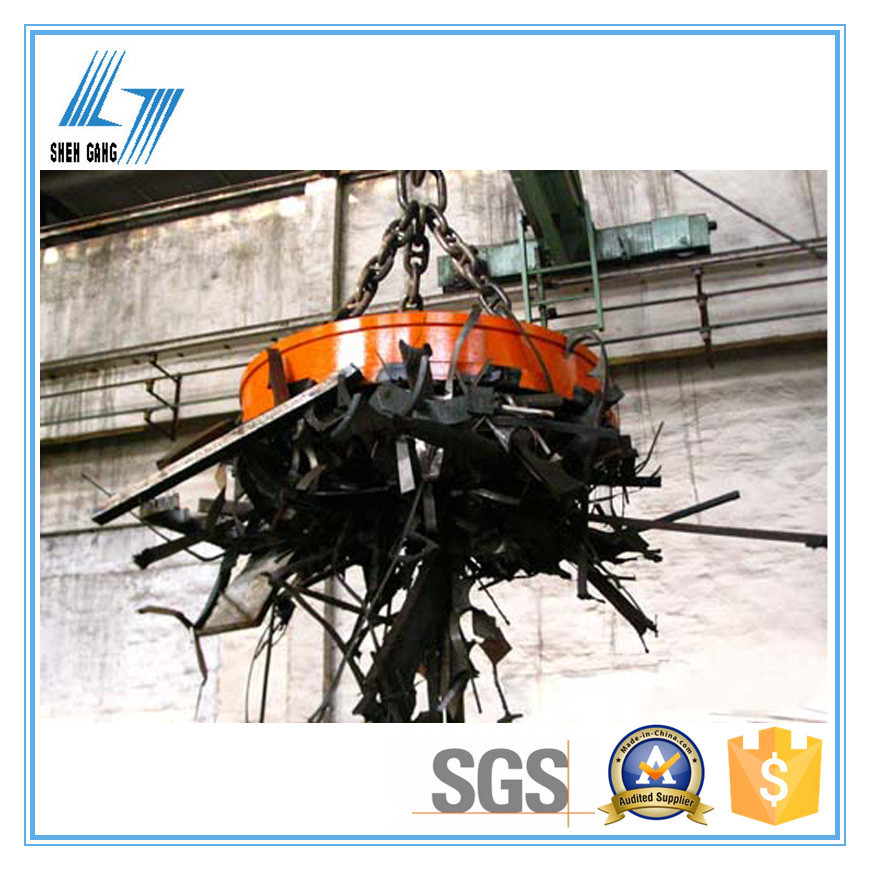

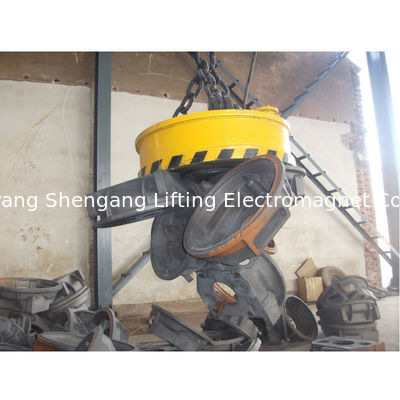

Application:

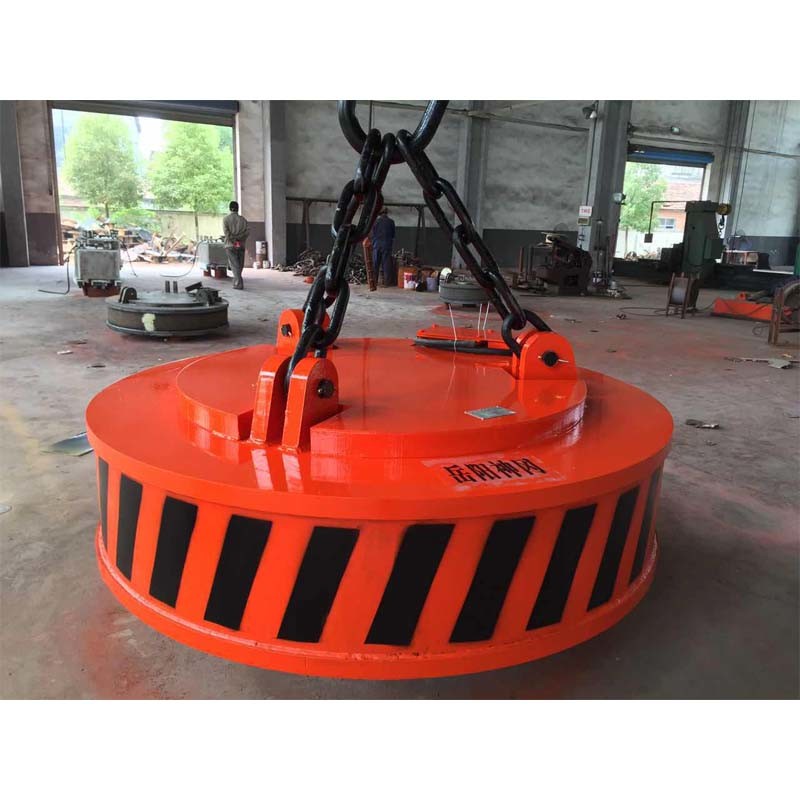

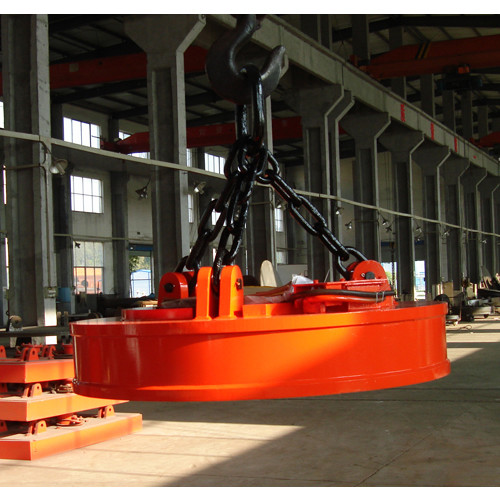

Production:
Packaging & Shipping
Q: Why customers choose us?
A: We are a professional lifting electromagnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.
Q: Can I have product with our design and nameplate?
A: Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.
Q: How long is your delivery time?
A: Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.
Q: What is your warranty and after service?
A: Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.
About Enquiry:
To help you get the best lifting electromagnet for your application, please kindly provide the following information:
1. What are the materials you want to lift?
Steel scraps,ingot,ball,steel billet, plate, rebas etc. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information:Voltage(V), DC/AC,Frequency(Hz), and information for overhead crane: single beam or double beam, single hook or double hook, how about its loading capacity?
5. Do you need only magnet or full set equipment with cable reel, control cabinet and cable connector?
6. Do you prefer FOB or CIF price, which is the destination port?
(More details, please feel free to contact us directly. )
Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.
Convenient Transportation:
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
