900mm Diameter Industrial Lifting Magnets High Safety Secured Maintenance Free

Basic Information
Place of Origin: Hunan, China (Mainland)
Certification: ISO9001:2008
Model Number: MW5-90L/2 Lifting Magnet
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Standard export package (900mm diameter lifting electromagnet)
Delivery Time: 15 workdays after signed the contract
Payment Terms: L/C, T/T
Supply Ability: 90 Piece/Pieces per Month 900mm diameter lifting electromagnet
Condition: New Dimension(L*W*H): 900*900*400mm
Product Name: High Temperature 900mm Diameter Lifting Electromagnet For Crane Shape: Circular
Current: 20.5A Rated Voltage: 220V
Power: 4.5KW Lifting Capacity For Steel Scrap: 250/200kg
Lifting Capacity For Steel Ball: 4500kg Lifting Capacity For Cast Iron: 600/400kg

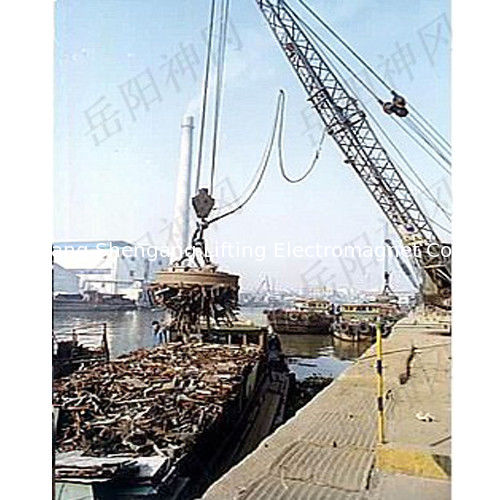

Weight: 900kg Application: Suitable For Transporting Steel Scraps Under Normal Temperature
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
Port: Shanghai/Shenzhen
High Light:

permanent lifting magnets


magnetic lifting equipment

Main Features:


Main Technical Data:


High temperature type(The attached material is below 650 centigrade;Rated voltage DC-220V;Power-on sustaining rate TD-60%)
Model Electric current (A) Cold-state power (kw) lifting capacity (kg) cold/hot state Mass (kg) Overall dimension (mm)
steel ball cast iron steel scrap A B C D E
MW5-70L/2 12.77 2.8 2500 380/200 120/100 520 700 820 160 90 30
MW5-80L/2 16.1 3.54 3000 480/250 150/300 650 800 820 160 90 30
MW5-90L/2 20.5 4.5 4500 600/400 250/200 900 900 1110 200 125 40
MW5-110L/2 27.5 6 6500 1000/800 450/400 1500 1100 1350 220 150 45
MW5-120L/2 33.6 7.4 7500 1300/1000 600/500 1800 1200 1280 220 150 45
MW5-130L/2 40.6 8.9 8500 1400/1100 700/600 2100 1300 1280 250 175 50
MW5-150L/2 51.4 11.3 11000 1900/1500 1100/900 3200 1500 1620 350 210 60
MW5-165L/2 60.6 13.3 12500 2300/1800 1300/1100 3500 1650 1630 370 230 75
MW5-180L/2 95 20.9 14500 2750/2100 1600/1350 4500 1800 1510 370 230 75
MW5-210L/2 104 22.9 21000 3500/2800 2200/1850 7500 2100 1910 400 250 80
MW5-240L/2 118.6 26 26000 4800/3800 2850/2250 9700 2400 2080 450 280 90

Overall Dimension Drawing:
900mm Diameter Industrial Lifting Magnets High Safety Secured Maintenance Free 0
Complete set of Equipment:
· Electro lifting magnet;
· Spring type cable reel with Cable;
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type);
· Cable connector / Quick coupling.

900mm Diameter Industrial Lifting Magnets High Safety Secured Maintenance Free 1
900mm Diameter Industrial Lifting Magnets High Safety Secured Maintenance Free 2
900mm Diameter Industrial Lifting Magnets High Safety Secured Maintenance Free 3

Packaging & Shipping

900mm Diameter Industrial Lifting Magnets High Safety Secured Maintenance Free 4
(fixed iron frame with five-plywoodboard packing to keep 300kg Lifting Electromagnet & Electromagnetic Lifting Device with a safety and long-distance transportation and no need fumigation when clear custom )

Q: Why customers choose us?
A: We are a professional lifting electromagnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.
Q: Can I have product with our design and nameplate?
A: Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.
Q: How long is your delivery time?
A: Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.
Q: What is your warranty and after service?
A: Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.

About Enquiry:
To help you get the best lifting electromagnet for your application, please kindly provide the following information:
1. What are the materials you want to lift?
Steel scraps,ingot,ball,steel billet, plate, rebas etc. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information:Voltage(V), DC/AC,Frequency(Hz), and information for overhead crane: single beam or double beam, single hook or double hook, how about its loading capacity?
5.Do you need only magnet or full set equipment with cable reel, control cabinet and cable connector?
6.Do you prefer FOB or CIF price, which is the destination port?
(More details, please feel free to contact us directly. )

Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.

Convenient Transportation:
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
