Added Platform Magnetic Separator Machine , Permanent Magnetic Separator Self Clean

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO9001
Model Number: RCDD-8
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package( Magnet Separator )
Supply Ability: 70 Piece/Pieces per Month Magnet Separator
Condition: New Type: Magnetic Separator, Electromagnet Type
Production Capacity: High Voltage: DC-110, DC-110
Power(W): 2.6kw Dimension(L*W*H): 2540*1480*865mm
Weight: 1470kg, 1470kg Product Name: Self Clean Overband Electro Magnet Separator
Color: Red Belt Width: 800mm
Power: 2.6kw Duty Cycle: TD-100%
Standard Erection Height: 250mm Application: Magnet Separator To Remove Magnetic Tramp Iron From Material Bed
Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas
Port: Shanghai/Shenzhen/Guangzhou
High Light:

cross belt magnetic separator

,

magnetic roll separator

Self Clean Overband Electro Magnet Separator



--- Series RCDD



Brief Introduction :



RCDD series is self-unloading type magnet separator in long-term system. It is added platform, iron removing belt and etc, which is suspended over the belt conveyer. Through the conveyance of the iron unloading belt, the separator will auto discarge the iron magnetic articles which are absorbed by the magnet into the iron collecting box. Thus removing the iron magnetic articles is gained. Which is the one of the most common used types of separator.



Application:



Most being suitable for removing iron magnetic articles from thicker bed and granularity of the materials as ores, coal, hard coke, limestone, spells, etc.



Features:



Improving and purifying non-magnetic materials; Recycling Iron

  • made of aluminum coil and iron core,etc.
  • high gauss
  • self-discharing type

Technical Data:



International

Standard

model

Standard

Erection T(mm)

width of Conveyer belt(mm)

Rated voltage

(v)

Cold

state

Consumption

Power(kw)

Weight

(kg)

Overall dimension (mm)

Driving

Motor

capacity

(kw)

Corollary control

panel

A B C D E F
RCDD-5 160 500 110 1.03 1074 2300 1330 1100 914 500 520 1.5 SSTM-1.5D1-D
RCDD-6 170 500 110 1.4 1160 2400 1400 1150 1068 650 520 1.5
RCDD-6 220 650 110 1.8 1330 2400 1250 1250 1120 650 555 1.5 SSTM-3.1D1-D
RCDD-8 250 800 110 2.6 1470 2750 1600 1360 1270 800 580 2.2
RCDD-8 250 800 110 2.9 2000 2750 1770 1465 1480 900 625 2.2
RCDD-10 260 1000 110 2.9 2000 2900 1770 1465 1480 900 625 2.2 SSTM6.2D1-D
RCDD-12 310 1200 220 4.2 2700 3200 2000 1590 1680 1000 625 4
RCDD-16 410 1600 220 8.2 6020 3800 2620 1850 1990 1400 725 4 SSTQ-12D1-D



Overall Dimension Drawing :

Added Platform Magnetic Separator Machine , Permanent Magnetic Separator Self Clean 0



Added Platform Magnetic Separator Machine , Permanent Magnetic Separator Self Clean 1Added Platform Magnetic Separator Machine , Permanent Magnetic Separator Self Clean 2

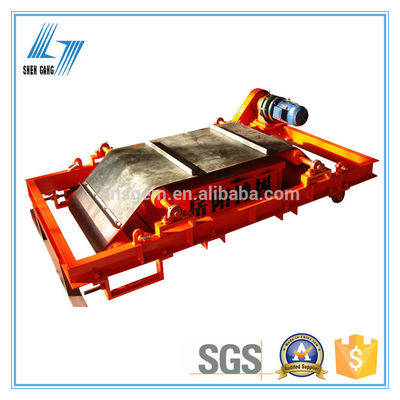

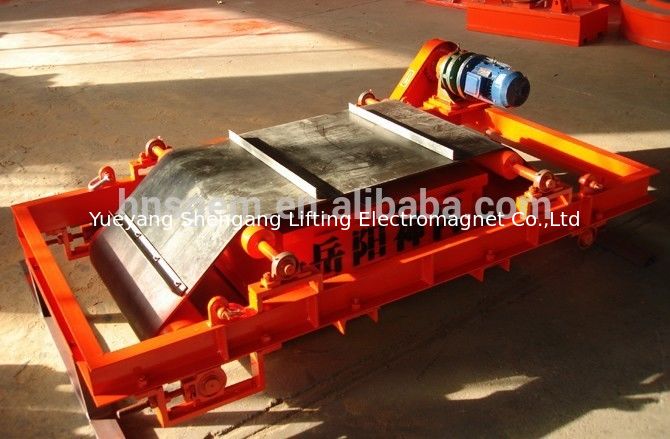

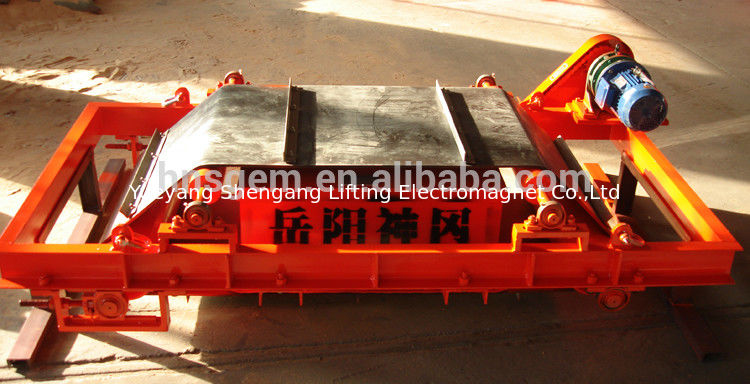

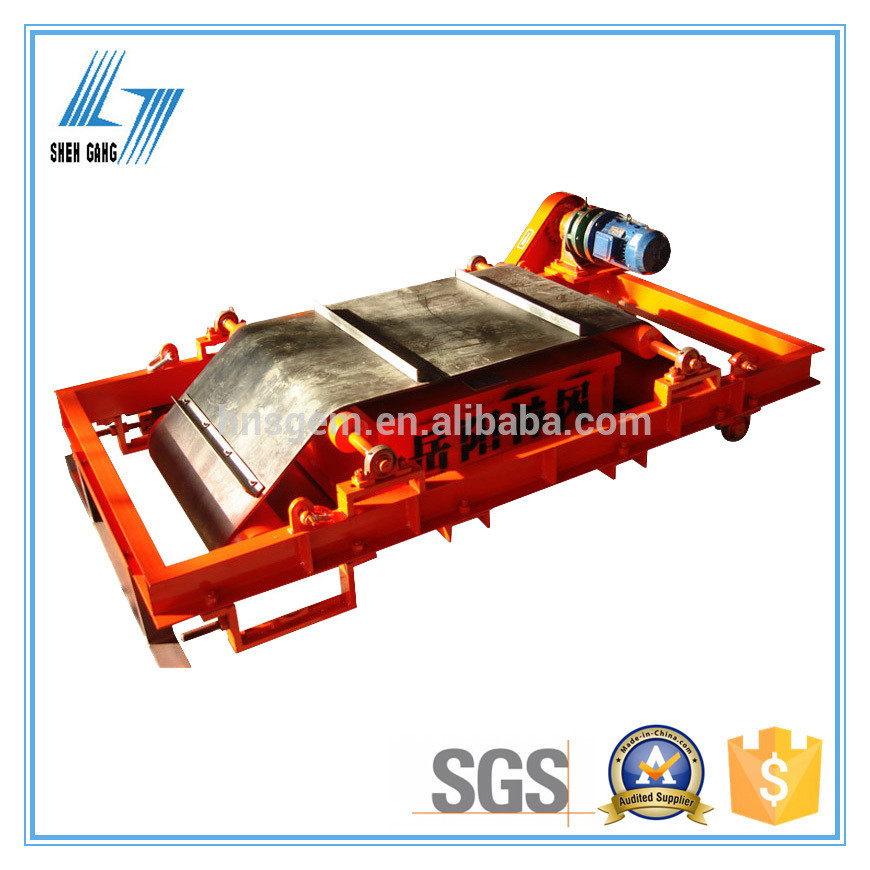

Physical Product Photo:



Added Platform Magnetic Separator Machine , Permanent Magnetic Separator Self Clean 3



Added Platform Magnetic Separator Machine , Permanent Magnetic Separator Self Clean 4



FAQ

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.what kind of material need to process separation?



2.does it work with belt? if yes, how about the belt width? belt speed?



3.how about the handling capacity you require? and the separation material size?



4.do you need self-discharging type or manual discharge type?



5.rectangular shape or round shapepermanent magnet type or electromagnet type?
