Auto Rewind Cable Reel with Exterior Slip Ring in China

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: JTA75-25-2-II
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Cable Reel with Exterior Slip Ring)
Supply Ability: 100 Piece/Pieces per Month auto rewind cable reel
Product Name: Auto Rewind Cable Reel With Exterior Slip Ring From China Current: 75A
Cable Length: 25m Series: JTA Type
Type: Slip Ring Exterior Installed Installation Patterns: Vertical Coiling
Core Number: 2 Cores Weight: 150kg
Application: Elastic Power Supply Cable Reel Application II: Industrial Cable Reel For Lifting Magnet, Crane,etc..
Port: Shanghai/Shenzhen/Guangzhou
High Light:

retractable cord reel

,

industrial hose reel

Auto Rewind Cable Reel with Exterior Slip Ring in China



Product Description

 Brief Introduction:



We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this reel has two types available as: Spring Type & Electrical Powered Type.



Features:

  • Using spiral springs as power without electric energy consumption to keep reliable in operation
  • Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
  • Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
  • Power supply easily, safety and reliability in operation, correct strs on the cables



Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself.  There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service, over hanging type which can coil up much longer cables.



Benifits:

  • Easy installation and start of operation
  • Corrosion and water proof
  • Silver brush would prevent and reduce the noise by conductors friction

Technical Data:



Overall Dimension:



Size(mm)

Overall series number

A

B

C

D1

D2

d

E

F

W

Weight

(kg)

25\30meter

series

1

400

460

450

600

800

18

525

675

300

120

2

641

795

300

150

3

751

905

300

180

4

892

1045

300

212

-

-

-

-

-



Main Technical Data:



Cable

model

Enable current

A(40°C)

15meter series

Overall series number

20meter series

Overall series number

25meter series

Overall series number

30meter series

Overall series number

Cores

square

(mm2)

Continues

1min

on

1min

off

YC type

2×6

40

50









JTA50-25-2-

1













JTB50-25-2-

1





YC type

2×10

58

 75

JTA75-15-2-

1

JTA75-20-2-

1

JTA75-25-2-

2

JTA75-30-2-

7

JTB75-15-2-

1

JTB75-20-2-

1

JTB75-25-2-

2

JTB75-30-2-

7



  Overall Dimension Drawing:



 Auto Rewind Cable Reel with Exterior Slip Ring in China 0

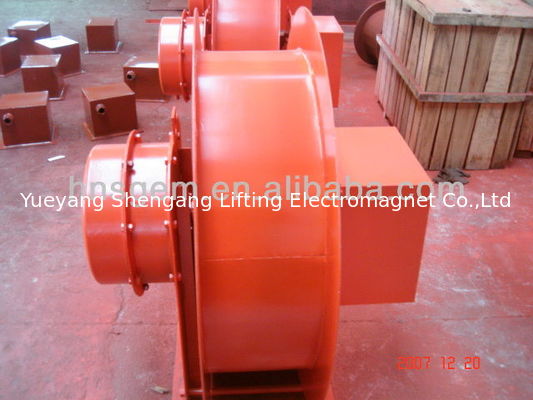

Physical Product Photo:

Auto Rewind Cable Reel with Exterior Slip Ring in China 1  Auto Rewind Cable Reel with Exterior Slip Ring in China 2

Auto Rewind Cable Reel with Exterior Slip Ring in China 3



FAQ

 In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :



1.Do you have special requirement about the power types?

spring type / motor powered/hysteresis?



2.What is the cable specification?

cable core number * cross section, coil length of cable, electric current?



3. What kind of mobile equipment will the cable reel be applied with?

lifting magnet, crane or others?



4. What kind of installation patterns you prefer?

Vertical coiling or Horizontal coiling?



For our relate products you may interested in, kindly click for details:



1. JTA Series Spring Driven Cable Reel



2. JT Series Hose Reel



3. Motor Type Cable Reel



4. Hyster Type Cable Reel



5. Motorized Couple Type Cable Reel



6. Magnetic Coupling Type Cable Reel



7.Manual Discharging Type Circular Electromagnetic Separator



8. Lifting Electromagnet for Billet Lifting



9. Lifting Electromagnet for Sheet Plate





*Lifting Magnet Series:

--application for transporating steel scraps, steel plates, billets,etc.

Auto Rewind Cable Reel with Exterior Slip Ring in China 4

*Cable Reel Series:

--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..

Auto Rewind Cable Reel with Exterior Slip Ring in China 6

Company Information

We are a professionl lifting electromagnet equipment manufacturer and exporter with more than 15 years export experience. Very sincerely looking for long-term win-win business here!



Major exports include lifting electromagnet, magnetic lifter, electromagnetic separator, cable reel, control cabinet and magnetic stirr, etc.



Our factory also pass the SGS audit per year with certification issued.



We warmly welcome you to enquiry or visit us, and also appreciate any of your comments!



We also have our own brand as "SHENGANG"



Auto Rewind Cable Reel with Exterior Slip Ring in China 8 Auto Rewind Cable Reel with Exterior Slip Ring in China 9

Auto Rewind Cable Reel with Exterior Slip Ring in China 10Auto Rewind Cable Reel with Exterior Slip Ring in China 11

Packaging & Shipping

 (fixed iron frame with five-plywoodboard packing to keep auto rewind cable reel with a safety and long-distance transportation and no need fumigation when clear custom )

Auto Rewind Cable Reel with Exterior Slip Ring in China 12

Our Services

 Quick Response:

We highly appreciate your any enquiry by email, fax or instant message.

We will reply your email or fax within 24 hours.

Please fell free to call us at any time if there is any questions.



Convenient Transportation:



All available shipping ways could be applied, by courier, air or sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you till the goods arrive.
