Automatic Winding Machine Automatic Cable Reel

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: JTD85-40-4
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package (Automatic Winding Machine Automatic Cable Reel)
Supply Ability: 100 Piece/Pieces per Month Automatic Cable Reel
Usage: Winding Product Name: Automatic Winding Machine Automatic Cable Reel
Color: Blue Cable Reel Cable Length: 50m Cable Pulling Reel
Weight: 162kg Reel Type: Cable Reel
Motor Type: Spring Type Installation Pattern: Horizontal Coiling On The Ground(reel Movable)
Phase Number: 4 Spring Type: Slip Ring Built-in
Application: Used With Movable Electrical Apparatus As Lifting Magnets,etc. Port: Shanghai/Shenzhen/Guangzhou
High Light:

extension cord reel


industrial hose reel


Automatic Winding Machine Automatic Cable Reel


Product Description

Brief Introduction:


We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this reel has two types available as: Spring Type & Electrical Powered Type.


  • Using spiral springs as power without electric energy consumption to keep reliable in operation
  • Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
  • Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
  • Power supply easily, safety and reliability in operation, correct strs on the cables

Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself. There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service; over hanging type which can coil up much longer cables.



  • Easy installation and start of operation
  • Corrosion and water proof
  • Silver brush would prevent and reduce the noise by conductors friction

Technical Data:


Overall Dimension
Technical Data
Cable ModelEnabled Current 40m Seriesitem50m Seriesitem100m Seriesitem
Core No.*Cross SectionContinuously1 min on/off

Overall Dimension Drawing:

 Automatic Winding Machine Automatic Cable Reel 0

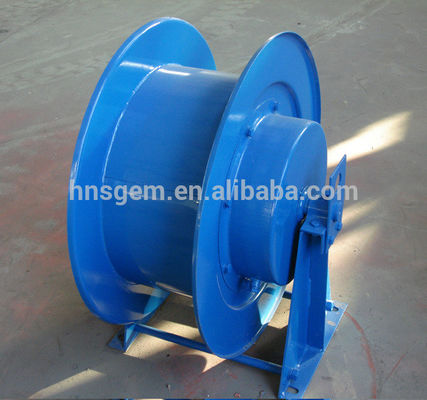

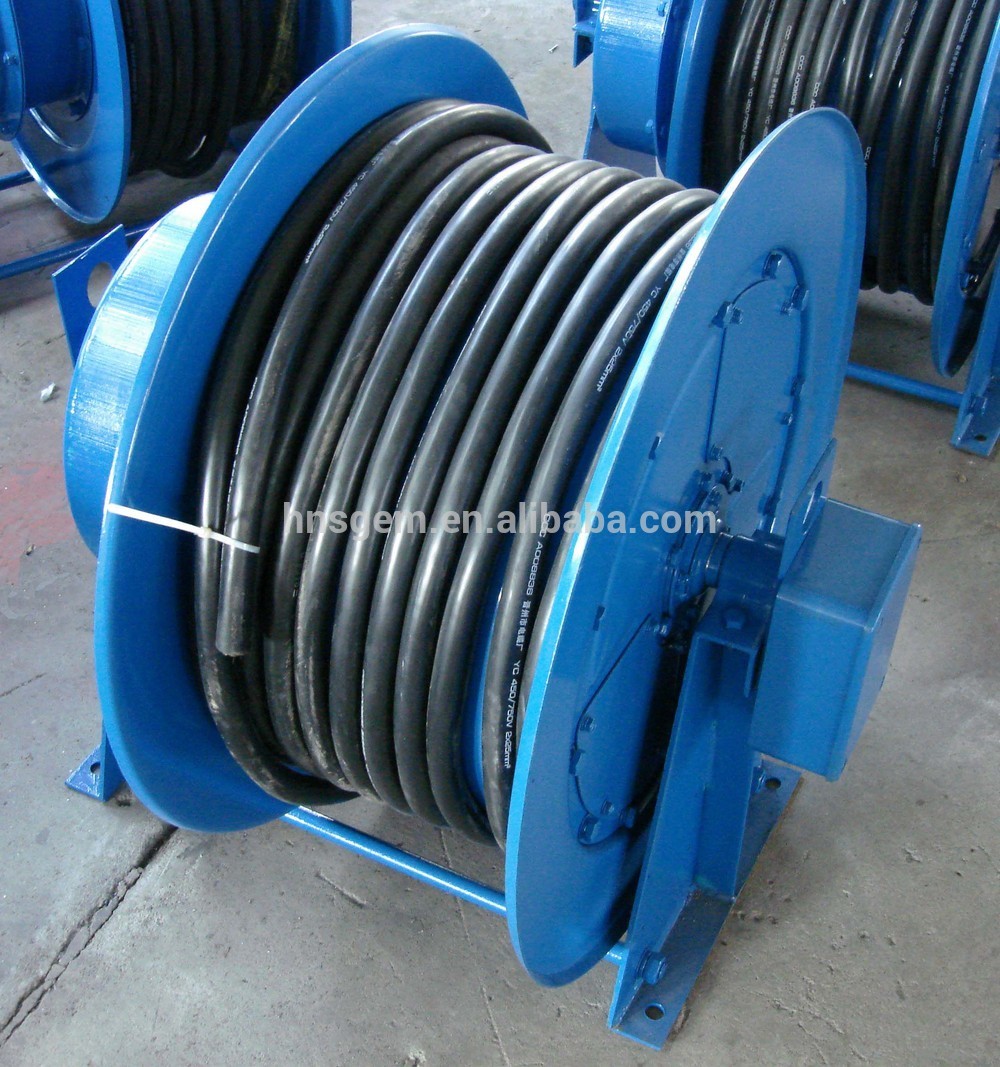

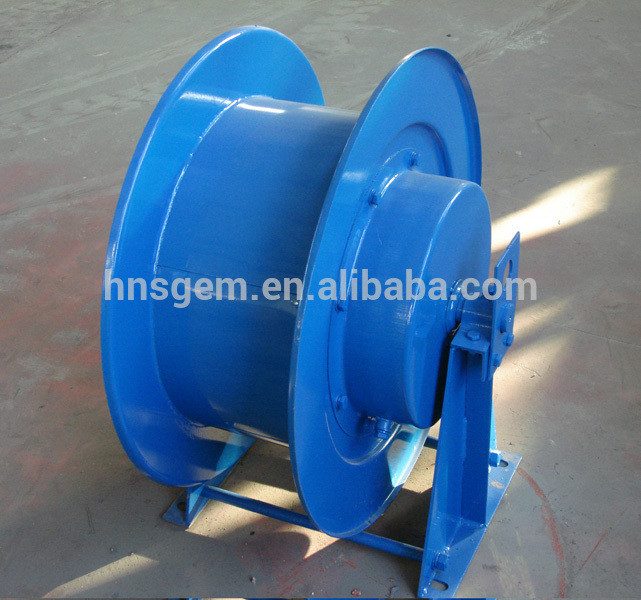

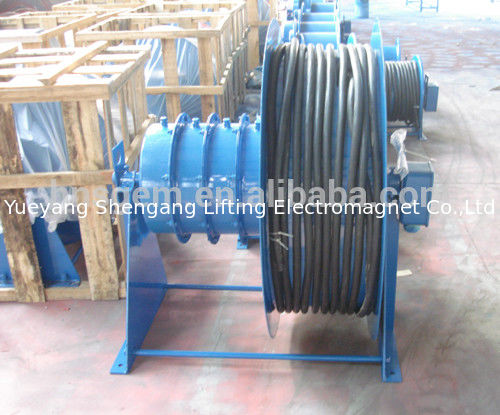

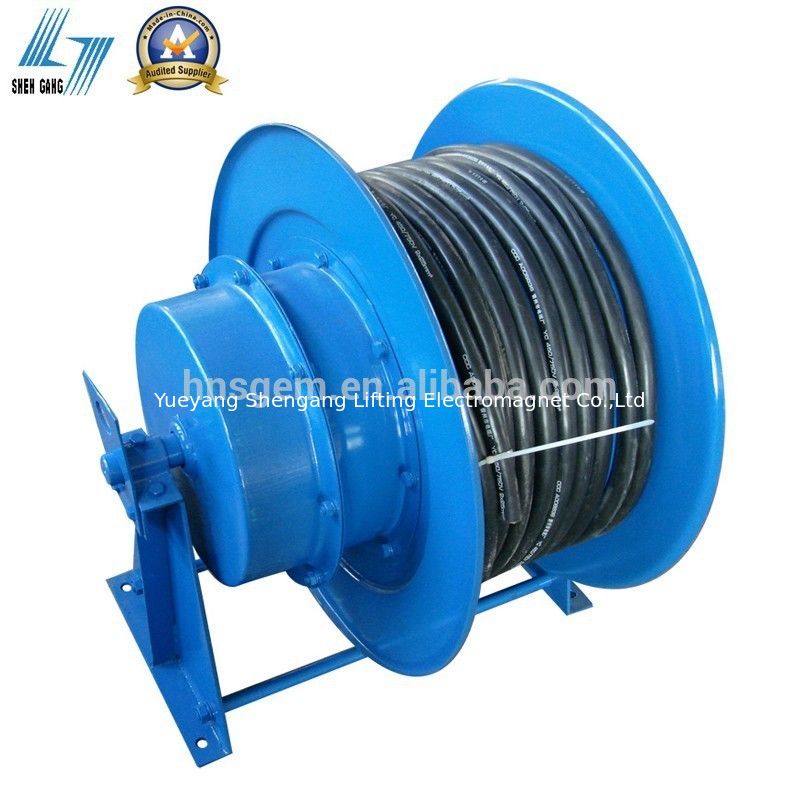

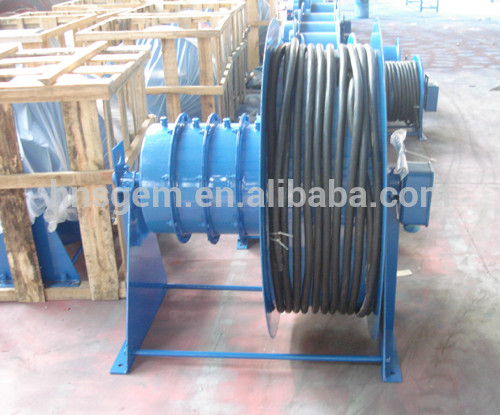

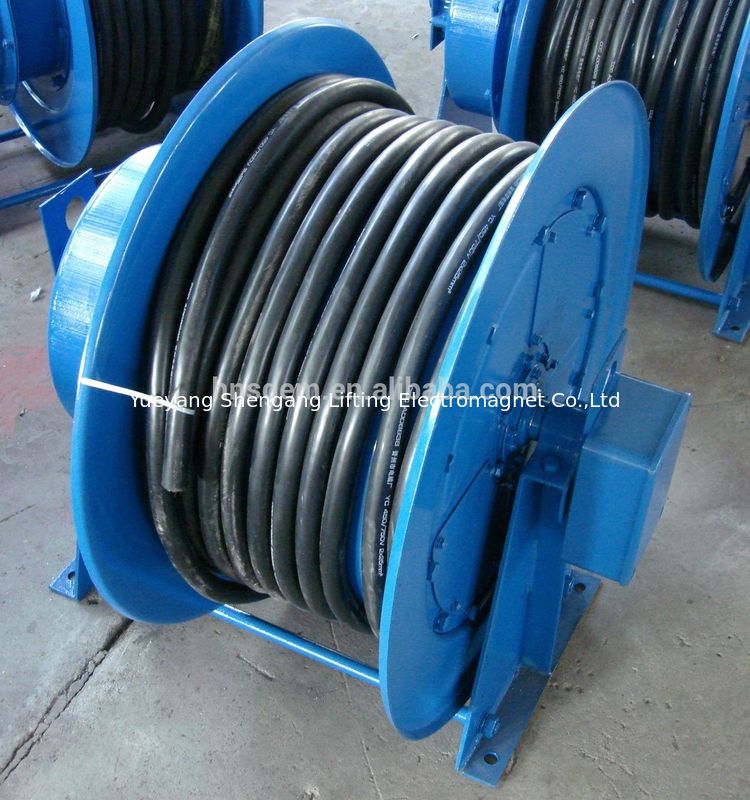

Physical Product Photo :


 Automatic Winding Machine Automatic Cable Reel 1     Automatic Winding Machine Automatic Cable Reel 2


Automatic Winding Machine Automatic Cable Reel 3     Automatic Winding Machine Automatic Cable Reel 4


Automatic Winding Machine Automatic Cable Reel 5



 In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :


1.Do you have special requirement about the power types?

spring type / motor powered/hysteresis?


2.What is the cable specification?

cable core number * cross section, coil length of cable, electric current?


3. What kind of mobile equipment will the cable reel be applied with?

lifting magnet, crane or others?


4. What kind of installation patterns you prefer?

Vertical coiling or Horizontal coiling?


For our relate products you may interested in, kindly click for details:


1. JTA Series Spring Driven Cable Reel


2. JT Series Hose Reel


3. Motor Type Cable Reel


4. Hyster Type Cable Reel


5. Motorized Couple Type Cable Reel


6. Magnetic Coupling Type Cable Reel


7.Manual Discharging Type Circular Electromagnetic Separator


8. Lifting Electromagnet for Billet Lifting


9. Lifting Electromagnet for Sheet Plate



*Lifting Magnet Series:

--application for transporating steel scraps, steel plates, billets,etc.

Automatic Winding Machine Automatic Cable Reel 6

*Cable Reel Series:

--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..

Automatic Winding Machine Automatic Cable Reel 8
