| Place of Origin: | Hunan, China (Mainland) |
|---|---|
| Brand Name: | SHENGANG |
| Model Number: | JTA170-15-2 |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | standard export package(Cable Reel Extension Cord Reel Cable Spooling Reel) |
| Supply Ability: | 100 Piece/Pieces per Month Cable Reel Extension Cord Reel Cable Spooling Reel |
| Conductor Material: | Copper | Insulation Material: | Rubber |
|---|---|---|---|
| Jacket: | Rubber | Number Of Conductors: | 2 Cores |
| Application: | Industry, Elastic Power Supply Cable Reel | Product Name: | Cable Reel Extension Cord Reel Cable Spooling Reel |
| Series: | JTA Type | Type: | Slip Ring Built-in Installed |
| Current: | 170A | Color: | Blue |
| Cable Length: | 15m | Weight: | 120kg |
| Installation Patterns: | Vertical Coiling | Phase Number: | 2 |
| Port: | Shanghai/Shenzhen/Guangzhou | ||
| High Light: | retractable cord reel,industrial hose reel |
||

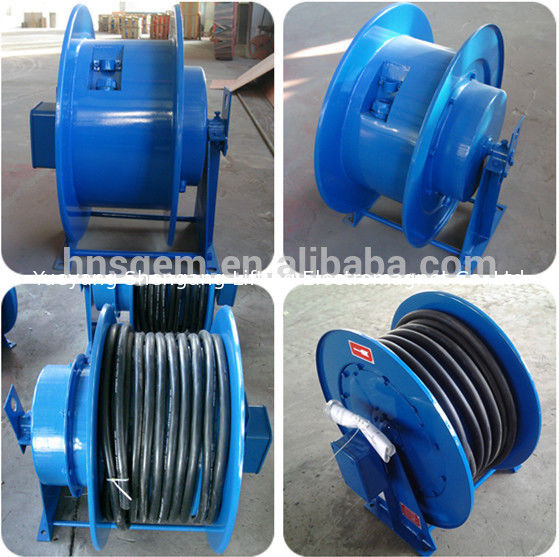

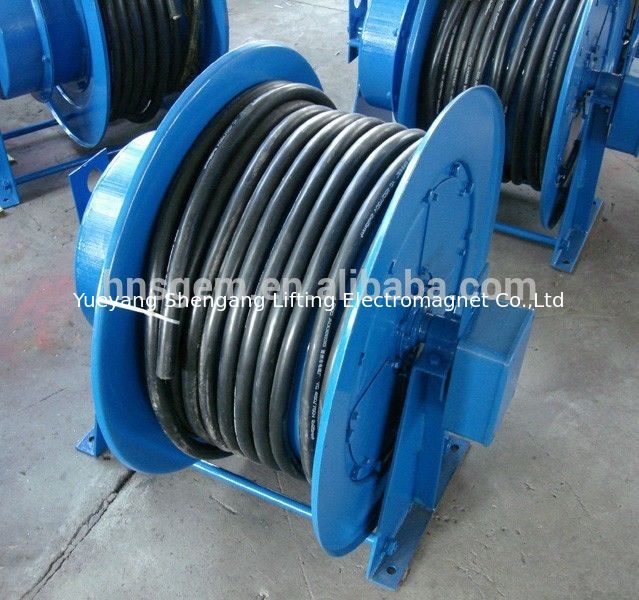

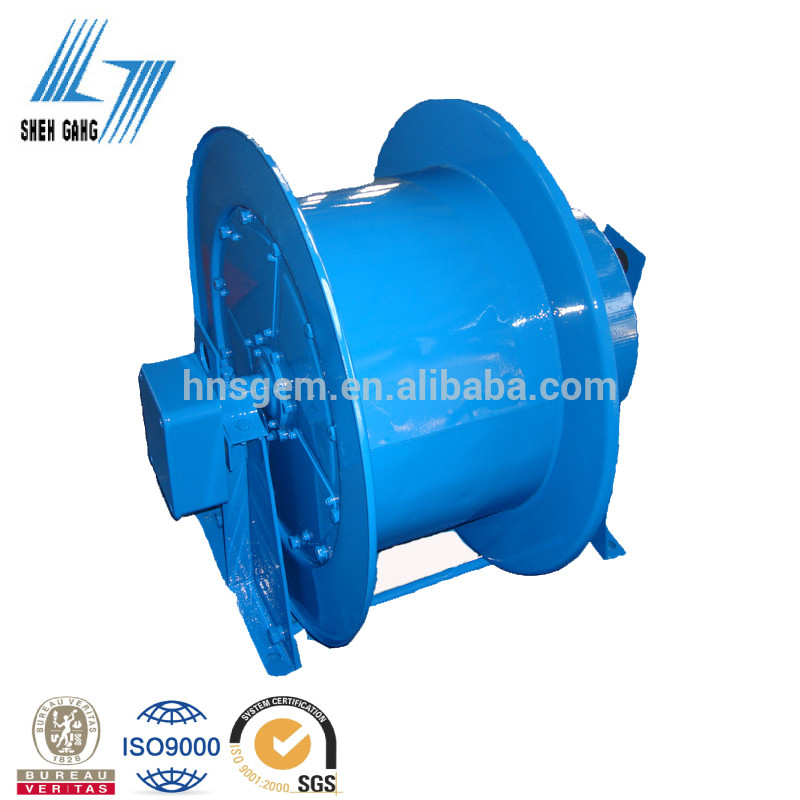

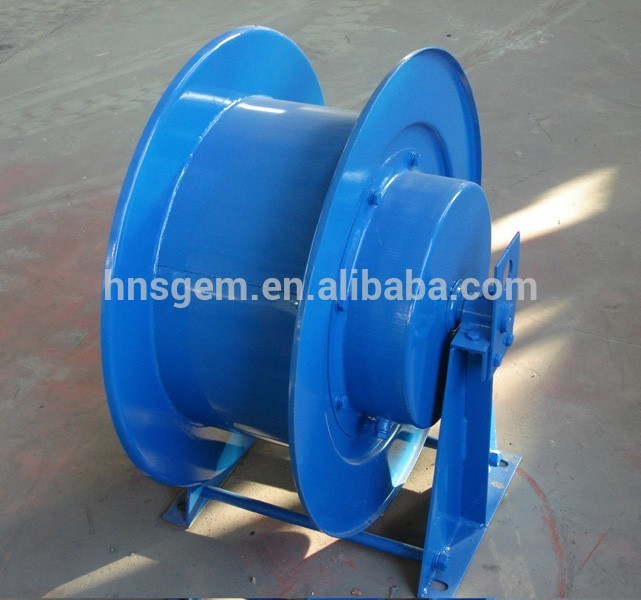

Cable Reel Extension Cord Reel Cable Spooling Reel
Brief Introduction:
We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this reel has two types available as: Spring Type & Electrical Powered Type.
Features:
Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself. There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service; over hanging type which can coil up much longer cables.
Benifits:
Technical Data:
| Series | item | A | B | C | D1 | D2 | d | E | F | W | Weight(kg) |
| 15m,20m Series | 1 | 300 | 360 | 400 | 500 | 700 | 15 | 440 | 600 | 250 | 95 |
| 2 | 490 | 650 | 300 | 100 | |||||||
| 3 | 560 | 720 | 250 | 115 | |||||||
| 4 | 610 | 770 | 300 | 120 | |||||||
| 5 | 720 | 880 | 300 | 150 |
| Cable Model | Enabled Current | 15m Series | item | 20m Series | item | 25m Series | item | ||
| Core No.*Cross Section | Continuously | 1 min on/off | |||||||
| YC2*10 | 58 | 75 | JTA75-15-2 | 1 | JTA75-20-2 | 1 | JTA75-25-2 | 2 | |
| JTB75-15-2 | JTB75-20-2 | JTB75-25-2 | |||||||
| YC2*16 | 77 | 100 | JTA100-15-2 | 1 | JTA100-20-2 | 3 | JTA100-25-2 | 2 | |
| JTB100-15-2 | JTB100-20-2 | JTB100-25-2 | |||||||
| YC2*25 | 106 | 135 | JTA135-15-2 | 4 | JTA135-20-2 | 4 | JTA135-25-2 | 3 | |
| JTB135-15-2 | JTB135-20-2 | JTB135-25-2 | |||||||
| YC3*10+1*6 | 50 | 65 | JTA65-15-4 | 2 | JTA65-20-4 | 4 | JTA65-25-4 | 2 | |
| JTB65-15-4 | JTB65-20-4 | JTB65-25-4 | |||||||
Overall Dimension Drawing:
In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :
1.Do you have special requirement about the power types?
spring type / motor powered/hysteresis?
2.What is the cable specification?
cable core number and cross section, coil length of cable, electric current)?
3. What kind of mobile equipment will the cable reel be applied with?
lifting magnet, crane or others
4. What kind of installation patterns you prefer?
Vertical coiling or Horizontal coiling?
