Convenient Industrial Magnetic Separators Strong Magnet Field Attraction Easy Install

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO9001
Model Number: RCDD-10
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Electro Overband Magnetic Separator )
Supply Ability: 80 Piece/Pieces per Month Electro Overband Magnetic Separator
Condition: New Type: Magnetic Separator, Electromagnet Type
Production Capacity: Based On Customer Work Condition Voltage: DC-110V, DC-110V
Power(W): 2.9kw Dimension(L*W*H): 2900*1480*768mm
Weight: 2000kg, 2000kg Product Name: Electro Overband Magnetic Separator With Self-Cleaning
Color: Red Belt Width: 1000mm
Power: 2.9kw Duty Cycle: TD-100%
Standard Erection Height: 260mm Application: Magnet Separator To Remove Magnetic Tramp Iron From Material Bed
Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas
Port: Shanghai/Shenzhen/Guangzhou
High Light:

magnetic separator conveyor belts

,

magnetic roll separator

Electro Overband Magnetic Separator with Self-Cleaning



--- Series RCDD

Brief Introduction :



RCDD series is self-unloading type magnet separator in long-term system. It is added platform, iron removing belt and etc, which is suspended over the belt conveyer. Through the conveyance of the iron unloading belt, the separator will auto discarge the iron magnetic articles which are absorbed by the magnet into the iron collecting box. Thus removing the iron magnetic articles is gained. Which is the one of the most common used types of separator.



Application:



Most being suitable for removing iron magnetic articles from thicker bed and granularity of the materials as ores, coal, hard coke, limestone, spells, etc.



Features:



Improving and purifying non-magnetic materials; Recycling Iron

  • made of aluminum coil and iron core,etc.
  • high gauss
  • self-discharing type

Technical Data:



International

Standard

model

Standard

Erection T(mm)

width of Conveyer belt(mm)

Rated voltage

(v)

Cold

state

Consumption

Power(kw)

Weight

(kg)

Overall dimension (mm)

Driving

Motor

capacity

(kw)

Corollary control

panel

A B C D E F
RCDD-5 160 500 110 1.03 1074 2300 1330 1100 914 500 520 1.5 SSTM-1.5D1-D
RCDD-6 170 600 110 1.4 1160 2400 1400 1150 1068 650 520 1.5
RCDD-8 250 800 110 2.9 2000 2750 1770 1465 1480 900 625 2.2
RCDD-10 260 1000 110 2.9 2000 2900 1770 1465 1480 900 625 2.2 SSTM6.2D1-D
RCDD-12 310 1200 220 4.2 2700 3200 2000 1590 1680 1000 625 4
RCDD-16 410 1600 220 8.2 6020 3800 2620 1850 1990 1400 725 4 SSTQ-12D1-D



Overall Dimension Drawing :

Convenient Industrial Magnetic Separators Strong Magnet Field Attraction Easy Install 0



Convenient Industrial Magnetic Separators Strong Magnet Field Attraction Easy Install 1Convenient Industrial Magnetic Separators Strong Magnet Field Attraction Easy Install 2

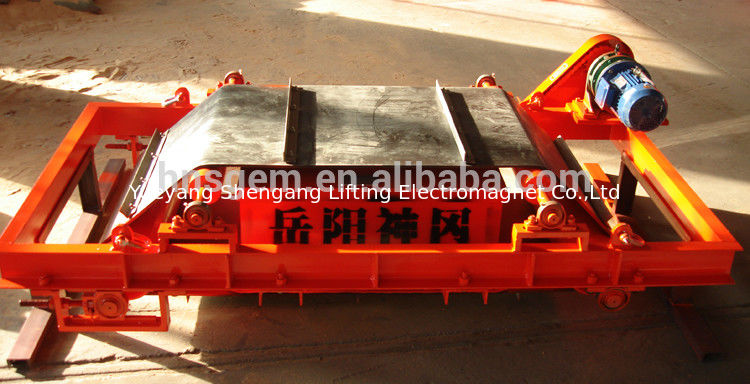

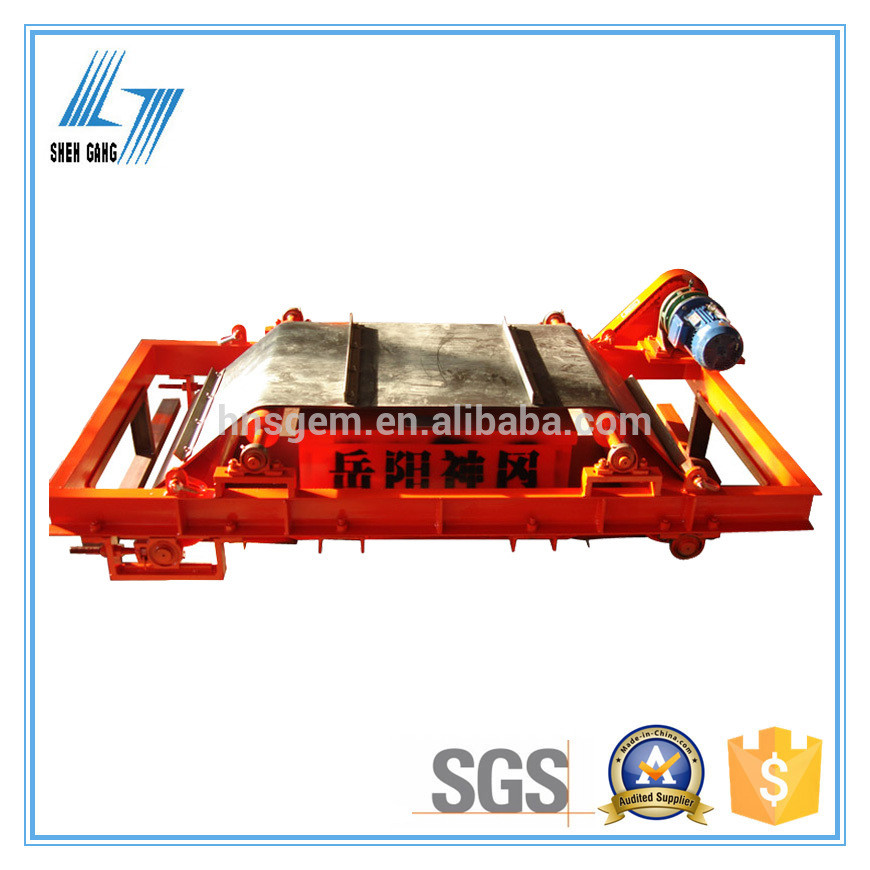

Physical Product Photo:



Convenient Industrial Magnetic Separators Strong Magnet Field Attraction Easy Install 3



Convenient Industrial Magnetic Separators Strong Magnet Field Attraction Easy Install 4



FAQ

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.what kind of material need to process separation?



2.does it work with belt? if yes, how about the belt width? belt speed?



3.how about the handling capacity you require? and the separation material size?



4.do you need self-discharging type or manual discharge type?



5.rectangular shape or round shapepermanent magnet type or electromagnet type?
