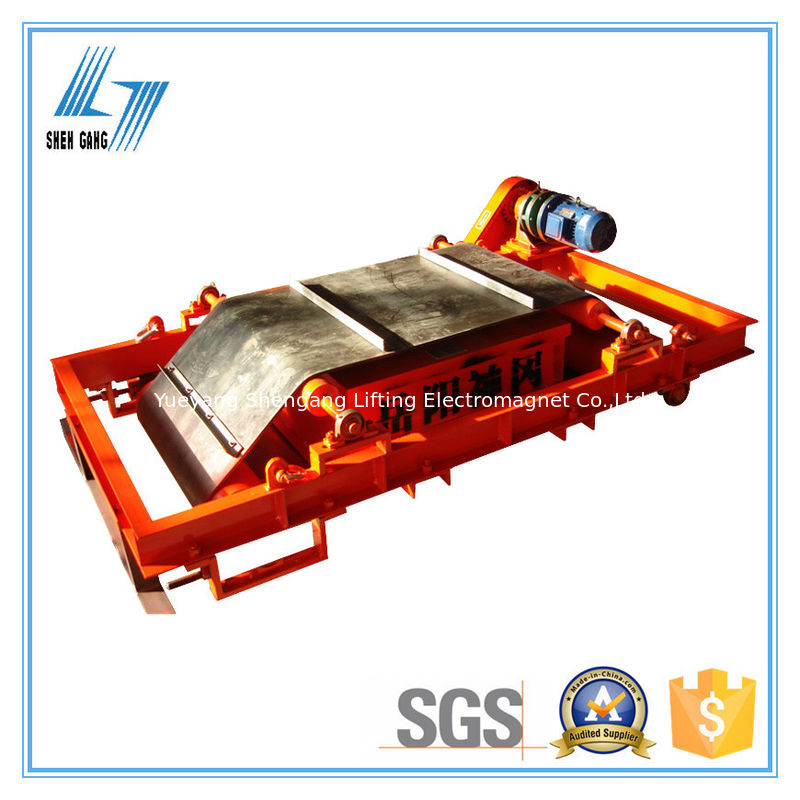

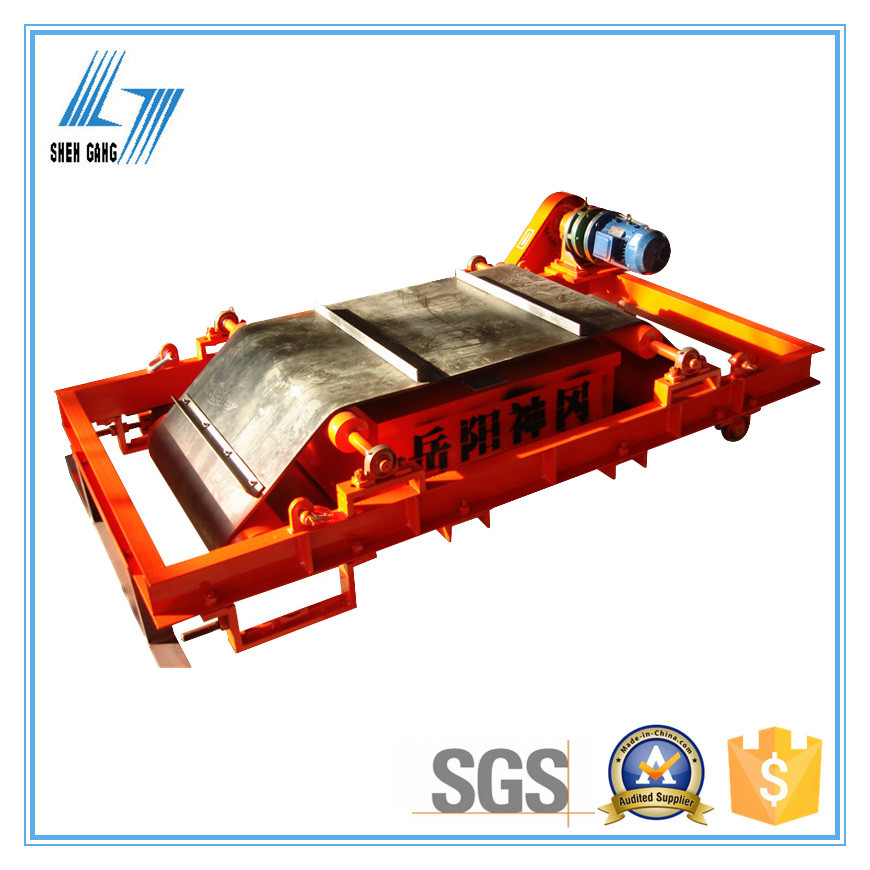

Conveyor Belt Magnetic Separator Iron

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO9001
Model Number: RCDD-8
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Magnetic Separator Iron)
Supply Ability: 70 Piece/Pieces per Month conveyor magnetic separator
Condition: New Type: Magnetic Separator, Electromagnet Type
Production Capacity: High Voltage: DC-110, DC-110
Power(W): 2.6kw Dimension(L*W*H): 2540*1480*865mm
Weight: 1470kg, 1470kg Product Name: Conveyor Belt Magnetic Separator Iron
Color: Red Belt Width: 800mm
Power: 2.6kw Duty Cycle: TD-100%
Standard Erection Height: 250mm Application: Magnet Separator To Remove Magnetic Tramp Iron From Material Bed
Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas
Port: Shanghai/Shenzhen/Guangzhou
High Light:

permanent magnet alternator

,

small strong magnets

Conveyor Belt Magnetic Separator Iron



--- Series RCDD



Product Description

 Brief Introduction :

RCDD series is self-unloading type magnet separator in long-term system. It is added platform, iron removing belt and etc, which is suspended over the belt conveyer. Through the conveyance of the iron unloading belt, the separator will auto discarge the iron magnetic articles which are absorbed by the magnet into the iron collecting box. Thus removing the iron magnetic articles is gained. Which is the one of the most common used types of separator.



Application:



Most being suitable for removing iron magnetic articles from thicker bed and granularity of the materials as ores, coal, hard coke, limestone, spells, etc.



Features:



Improving and purifying non-magnetic materials; Recycling Iron

  • made of aluminum coil and iron core,etc.
  • high gauss
  • self-discharing type

Technical Data:



International

Standard

model

Standard

Erection T(mm)

width of Conveyer belt(mm)

Rated voltage

(v)

Cold

state

Consumption

Power(kw)

Weight

(kg)

Overall dimension (mm)

Driving

Motor

capacity

(kw)

Corollary control

panel

ABCDEF
RCDD-51605001101.0310742300133011009145005201.5SSTM-1.5D1-D
RCDD-61705001101.4116024001400115010686505201.5
RCDD-62206501101.8133024001250125011206505551.5SSTM-3.1D1-D
RCDD-82508001102.6147027501600136012708005802.2
RCDD-82508001102.9200027501770146514809006252.2
RCDD-1026010001102.9200029001770146514809006252.2SSTM6.2D1-D
RCDD-1231012002204.22700320020001590168010006254
RCDD-1641016002208.26020380026201850199014007254SSTQ-12D1-D



Overall Dimension Drawing :

Conveyor Belt Magnetic Separator Iron 0



Conveyor Belt Magnetic Separator Iron 1Conveyor Belt Magnetic Separator Iron 2

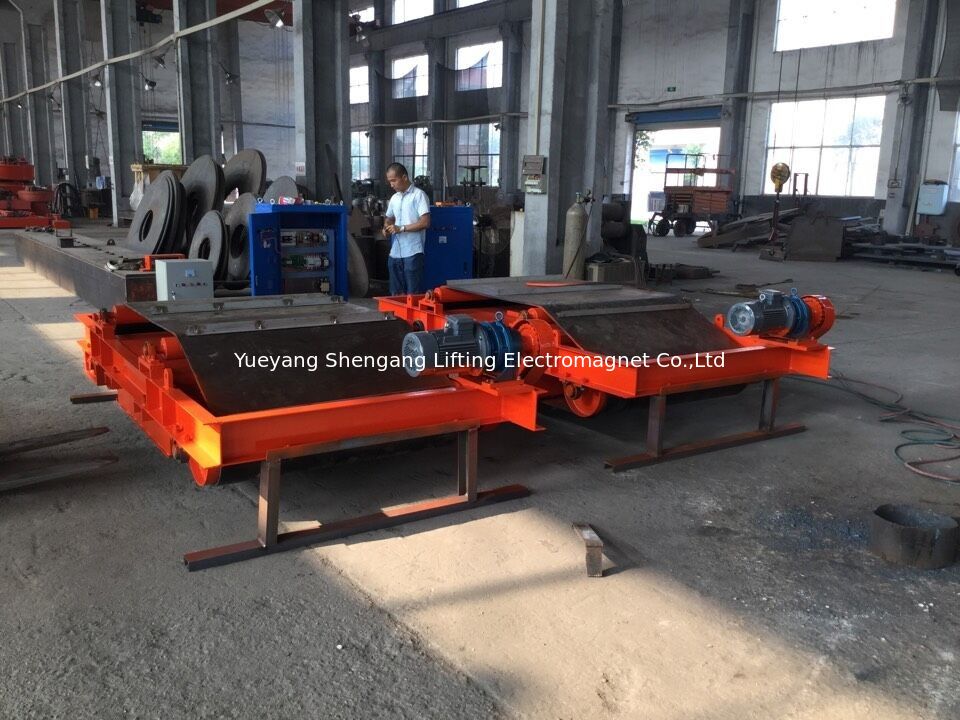

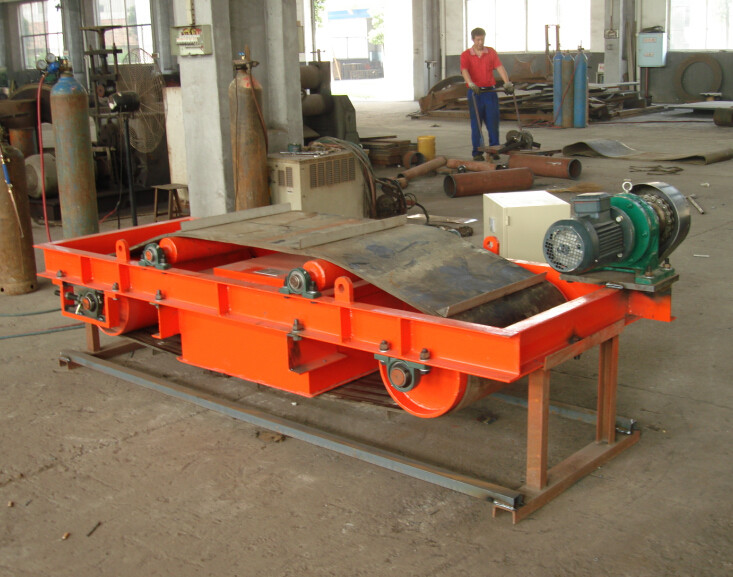

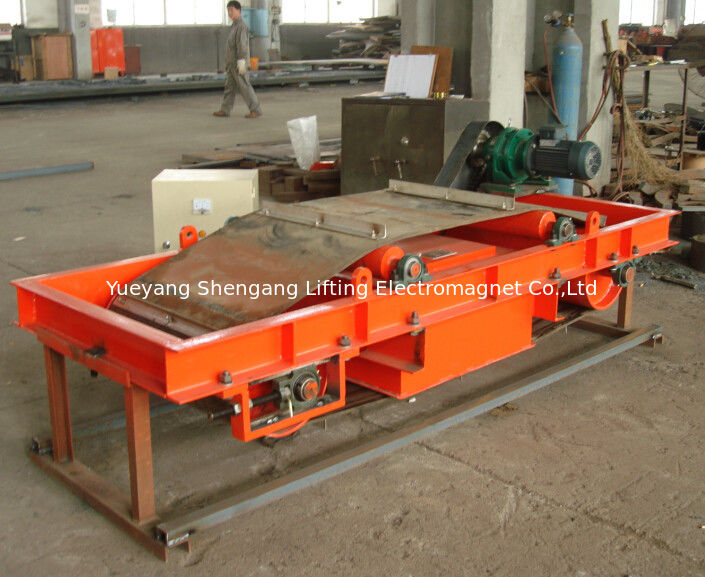

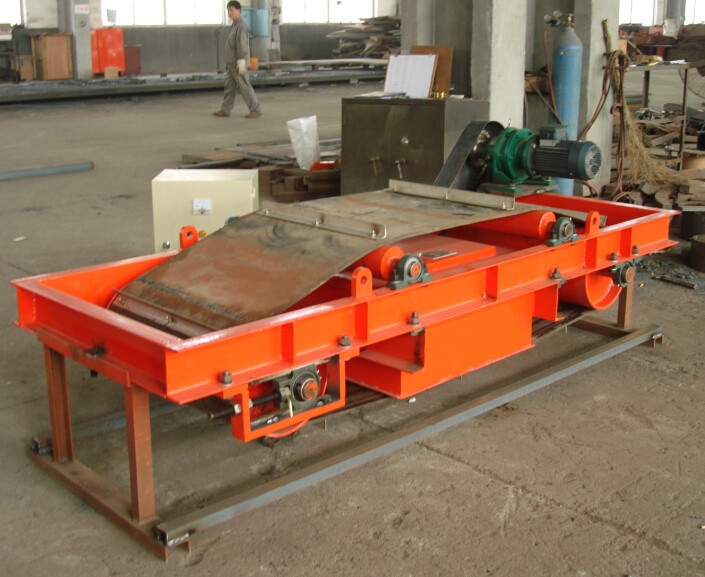

Physical Product Photo:



Conveyor Belt Magnetic Separator Iron 3



Conveyor Belt Magnetic Separator Iron 4



FAQ

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.what kind of material need to process separation?



2.does it work with belt? if yes, how about the belt width? belt speed?



3.how about the handling capacity you require? and the separation material size?



4.do you need self-discharging type or manual discharge type?



5.rectangular shape or round shapepermanent magnet type or electromagnet type?
