Copper Magnetic Drum Separator Optimized Design High Remanence Permanent Magnet

Basic Information
Place of Origin: Jiangsu, China (Mainland)
Brand Name: SHENGANG
Certification: based on ISO quality control system
Model Number: CTS-1530
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: standard export package(Copper Ore Magnetic Separator)
Supply Ability: 70 Set/Sets per Month
Condition: New Type: Separating Plant
Power(W): 11KW Weight: 8000KG, 8000kg
Dimension(L*W*H): 1500(dia.)*3000mm(length) Product Name: Copper Ore Magnetic Separator
Color: Red Power: 11KW
Drum Speed: 14r/min Capacity: 90-170 T/h & 270m3/h
Drum Size: 1500(dia.)*3000mm(length) Magnetic Intensity: 3000GS
Particle Size: 0-6mm Application: To Seperation For Iron Ore,fly Ash Of Iron Power Plant Etc.
Warranty: 1 Year After Shipping Port: Shanghai/Shenzhen/Guangzhou
High Light:

wet drum magnetic separator

,

magnetic coolant separator

ShenGang Copper Ore Magnetic Separator CTS/CTN/CTB  Series



Feature:

  • Optimized design
  • Scientific magnetic circuit, made of strong magnetic coercive force
  • High-remanence permanent magnet
  • Safe and reliable.

          Different Gauss can be expected at the drum surface.



Application:



Suitable for iron ore, fly ash of iron power plant separator with large capacity, high recovery rate, especially for iron ore concentrate select.

  • The downstream tank (Series of CTS) is applicable to rougher flotation and concentration of ore with size: 6-0 mm.
  • The half upstream tank (Series of CTS) is applicable to rougher flotation and concentration of ore with size: o~0.5mm, the granularity of granule is 0.15-0.8mm

Ore Magnetic Separator Manufacturer CTS Series:





Working principle of Iron Ore Equipment:





When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.





 Technical Data:

Model

CTB-924

CTN-924

CTS-924

CTB-1030

CTN-1030

CTS-1030

CTB-1230

CTN-

1230

CTS-1230

CTB-1530

CTN-1530

CTS-1530

Size

Φ900*2400

Φ1050Χ3000

Φ1200Χ3000

Φ1500Χ3000

Drum

Diameter mm

900

1050

1200

1500

L mm

2400

3000

3000

3000

Rotating Speed r/min

28

22

19

16

Magnetic Intensity

Average mT

165

165-400

180-400

180-400

Max

190

190-500

200-550

200-550

Particle Size mm

1-0

0-6-0

6-0

1-0

0-6-0

6-0

1-0

0-6-0

6-0

1-0

0-6-0

6-0

Capacity

t/h

35

65-125

80-150

90-170

m³/h

110

200

240

280

 Power KW

4

7.5

7.5

11



































Operation Photo:

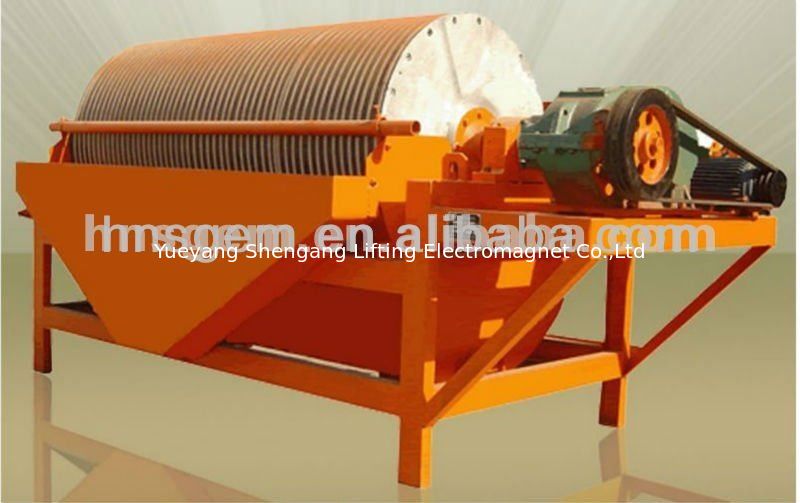

Copper Magnetic Drum Separator Optimized Design High Remanence Permanent Magnet 0

Product Photo:

Copper Magnetic Drum Separator Optimized Design High Remanence Permanent Magnet 1



Copper Magnetic Drum Separator Optimized Design High Remanence Permanent Magnet 2





 Standard Export Package:

 (fixed iron frame with five-plywoodboard packing to keep safety and long-distance transportation)



Copper Magnetic Drum Separator Optimized Design High Remanence Permanent Magnet 3     Copper Magnetic Drum Separator Optimized Design High Remanence Permanent Magnet 4
