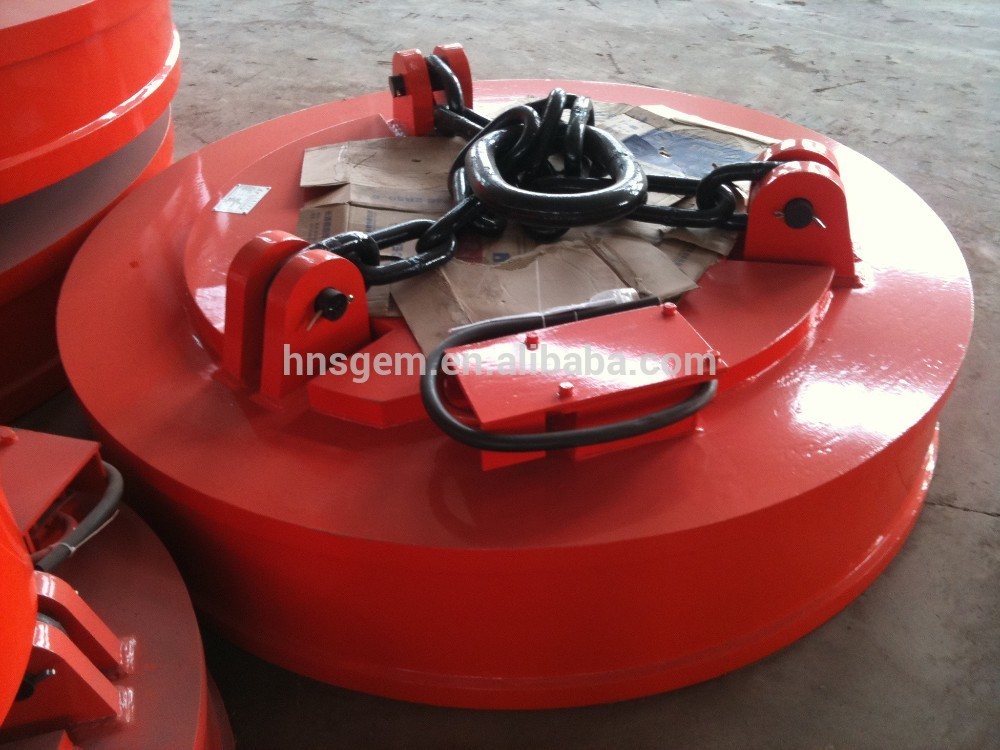

Crane Lifting Magnet for Lifting Scrap with 3 Ton Capacity

Basic Information
Place of Origin: Hunan, China (Mainland)
Certification: ISO,CE,SGS,BV
Model Number: MW5-240L/1
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Standard export package (crane lifting magnet for lifting scrap 3 ton)
Delivery Time: 10 workdays after signed the contract
Supply Ability: 80 Piece/Pieces per Month crane lifting magnet for lifting scrap 3 ton
Type: Electromgnetic Type Composite: Aluminum Or Copper Coil
Shape: Circular, Circular Lifting Magnets Application: Industrial Magnet, Magnetizer Lifting Magnet To Lift Steel Scraps
Product Name: Crane Lifting Magnet For Lifting Scrap With 3 Ton Capacity Color: Red
Rated Voltage: 220V Power: 33.9KW
Current: 154A Lifting Capacity: 2850/2250kg
Weight: 9000kg Diameter: 2400mm
Port: Shanghai/Shenzhen/Guangzhou Etc
High Light:

electromagnetic lifting magnet


magnetic lifting device



Lifting magnet is used for transporting Iron scraps,Ingots,Pig Iron,Machine Chip,Return scraps,Baling scraps, Various kinds of steel scraps. It is suitable for installing on overhead crane and excavator,and also can be submerged under water,used at normal temperature and very high temperature in metallurgical plants,scrap yards and ship-building plants.




Available diameters from 500 mm up to 3000 mm;

60% or 75% Duty Cycle;
All welded heavy duty construction;
Class H insulation;
Powerful deep magnetic field design;
Aluminum Coil,Copper Coil optional;




There are three options:
--Normal Temperature type
--High Temperature type (temperature does not exceed 700 ºC)
--High Frequency type
--Diving Type


Technical data:


Model Electric current

Cold-state power


lifting capacity (kg) cold/hot state



Overall dimension (mm)
steel ball cast iron steel scrap A B C D E
MW5-70L/1 15 3.3 2500 380/200 120/100 490 700 800 160 90 30
MW5-80L/1 18 3.96 3000 480/250 150/300 620 800 800 160 90 30
MW5-90L/1 26.6 5.9 4500 650/440 250/200 800 900 1090 200 125 40
MW5-110L/1 35 7.7 6500 1000/800 450/400 1350 1100 1140 220 150 45
MW5-120L/1 45.5 10 7500 1300/1000 600/500 1700 1200 1100 220 150 45
MW5-130L/1 54 12 8500 1400/1100 700/600 2010 1300 1240 250 175 50
MW5-150L/1 71.2 15.6 11000 1900/1500 1100/900 2830 1500 1250 350 210 60
MW5-165L/1 75 16.5 12500 2300/1800 1300/1100 3200 1650 1590 370 230 75
MW5-180L/1 102 22.5 14500 2750/2100 1600/1350 4230 1800 1490 370 230 75
MW5-210L/1 129 28.4 21000 3500/2800 2200/1850 7000 2100 1860 400 250 80
MW5-240L/1 154 33.9 28000 4800/3800 2850/2250 9000 2400 2020 450 280 90

Crane Lifting Magnet for Lifting Scrap with 3 Ton Capacity 0

Complete set of equipment:
· Lifting magnet;
· Spring type cable reel with Cable;
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type);
· Cable connector / Quick coupling.


Crane Lifting Magnet for Lifting Scrap with 3 Ton Capacity 1

Processing flow and Package:

The package is angle steel welded frame and fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.


Crane Lifting Magnet for Lifting Scrap with 3 Ton Capacity 2

Our Best Advantages:


1)Credited by CE,SGS,BV and ISO9001 certificate,with 29490m² total size of factory.
2)Adopt totally sealing structure with good property of moisture-proofing.
3)Simple and convenient installation, operation and maintenance.
4)optimized design ,reasonable structure, light dead-weight, strong lifting capacity,easy and safe operation




Q:Why customers choose us?
A:We are a professional lifting electromagnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.


Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.


Q:How long is your delivery time?
A:Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.


Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.

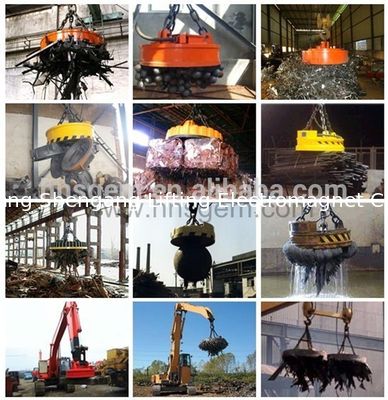

Lifting Electromagnets Application:


Crane Lifting Magnet for Lifting Scrap with 3 Ton Capacity 3


About Enquiry:

To help you get the best lifting electromagnet for your application, please kindly provide the following information:

1. What are the materials you want to lift?

Steel scraps,ingot,ball,steel billet, plate, rebas etc. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information:Voltage(V), DC/AC,Frequency(Hz), and information for overhead crane: single beam or double beam, single hook or double hook, how about its loading capacity?
5.Do you need only magnet or full set equipment with cable reel, control cabinet and cable connector?
6.Do you prefer FOB or CIF price, which is the destination port?

(More details, please feel free to contact us directly. )


Factory Tour and Contacts:


Crane Lifting Magnet for Lifting Scrap with 3 Ton Capacity 4

Quick Response:


We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.


Convenient Transportation:

All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
