Crane Scrap Lifting Magnet Strong Chain Connector Welded Body Structure

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG Crane Lifting Magnet
Certification: ISO,CE,SGS,BV
Model Number: MW5-150L/1 Crane Lifting Magnet
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Standard export package (Crane Lifting Magnet)
Supply Ability: 80 Piece/Pieces per Month Crane Lifting Magnet
Product Name: Circular Crane Lifting Magnet For Scraps Shape: Circular
Current: 71.2A Rated Voltage: 220V
Power: 15.6KW Lifting Capacity For Steel Scrap: 1100/900kg
Lifting Capacity For Steel Ball: 11000kg Lifting Capacity For Cast Iron: 1900/1500kg
Weight: 2830kg Application: Suitable For Transporting Steel Scraps Under Normal Temperature
After-sales Service Provided: Engineers Available To Service Machinery Overseas Port: Shanghai/Shenzhen/Guangzhou/Ningbo
High Light:

circular lifting magnet

,

electromagnetic lifting magnet

Application:



Lifting magnet is suitable for transporting ingots,steel chips,slabs,steel plates and various kinds of steel scraps.And can be installed on excavator,crane.

Main Features:

-- 75% or 60% Duty Cycle
-- All welded heavy duty construction
-- Cool operating
-- Class H insulation
-- Powerful deep magnetic field design
-- Aluminum Coil,Copper Coil optional
-- Quick disconnect lead assembly
-- Voltages - 220V DC



Technical Data: (DC-220V, Duty Cycle:60%, Normal Temperature Type,Aluminum Coil)



Model Electric current
(A)
Cold-state power
(kw)


lifting capacity (kg) cold/hot state Mass
(kg)
Overall dimension (mm)
steel ball cast iron steel scrap A B C D E
MW5-70L/1 15 3.3 2500 380/200 120/100 490 700 800 160 90 30
MW5-80L/1 18 3.96 3000 480/250 150/300 620 800 800 160 90 30
MW5-90L/1 26.6 5.9 4500 650/440 250/200 800 900 1090 200 125 40
MW5-110L/1 35 7.7 6500 1000/800 450/400 1350 1100 1140 220 150 45
MW5-120L/1 45.5 10 7500 1300/1000 600/500 1700 1200 1100 220 150 45
MW5-130L/1 54 12 8500 1400/1100 700/600 2010 1300 1240 250 175 50
MW5-150L/1 71.2 15.6 11000 1900/1500 1100/900 2830 1500 1250 350 210 60
MW5-165L/1 75 16.5 12500 2300/1800 1300/1100 3200 1650 1590 370 230 75
MW5-180L/1 102 22.5 14500 2750/2100 1600/1350 4230 1800 1490 370 230 75
MW5-210L/1 129 28.4 21000 3500/2800 2200/1850 7000 2100 1860 400 250 80
MW5-240L/1 154 33.9 28000 4800/3800 2850/2250 9000 2400 2020 450 280 90

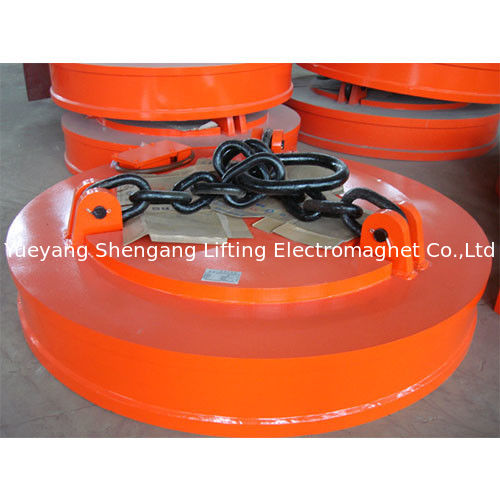

Crane Scrap Lifting Magnet Strong Chain Connector Welded Body Structure 0
Application:

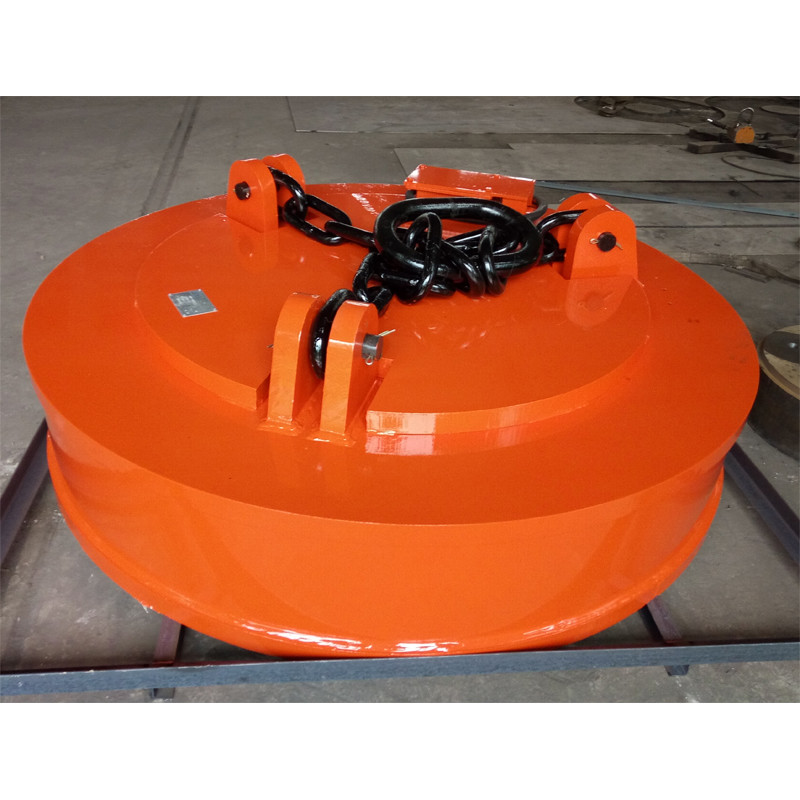

Crane Scrap Lifting Magnet Strong Chain Connector Welded Body Structure 1
Production:

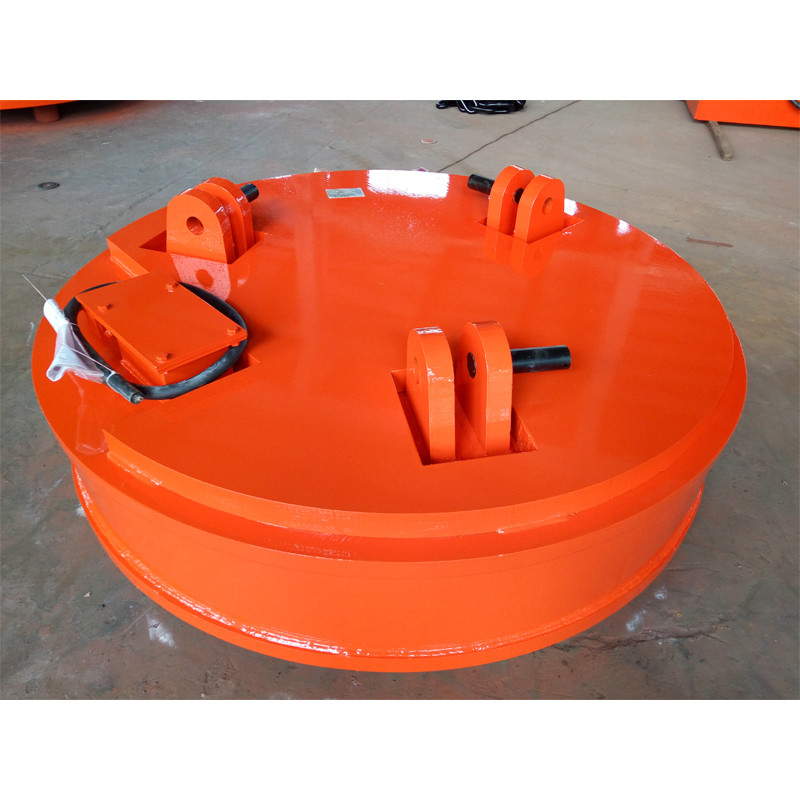

Crane Scrap Lifting Magnet Strong Chain Connector Welded Body Structure 2

Packaging & Shipping

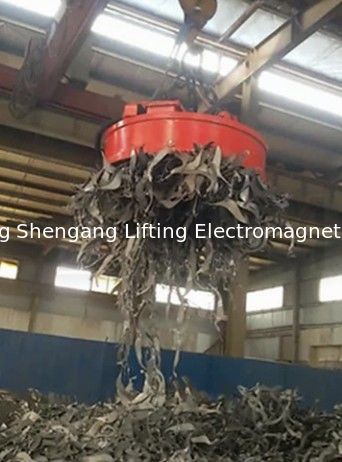

Crane Scrap Lifting Magnet Strong Chain Connector Welded Body Structure 3
(fixed iron frame with five-plywoodboard packing to keep 300kg Lifting Electromagnet & Electromagnetic Lifting Device with a safety and long-distance transportation and no need fumigation when clear custom )

Customers Visit and Certification:

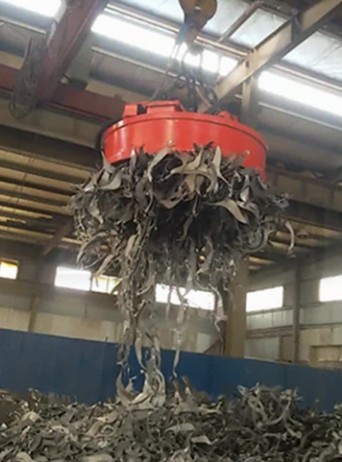

Crane Scrap Lifting Magnet Strong Chain Connector Welded Body Structure 4
FAQ:


Q: Why customers choose us?
A: We are a professional lifting electromagnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.

Q: Can I have product with our design and nameplate?
A: Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.

Q: How long is your delivery time?
A: Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.

Q: What is your warranty and after service?
A: Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.


About Enquiry:
To help you get the best lifting electromagnet for your application, please kindly provide the following information:


1. What are the materials you want to lift?
Steel scraps,ingot,ball,steel billet, plate, rebas etc. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information:Voltage(V), DC/AC,Frequency(Hz), and information for overhead crane: single beam or double beam, single hook or double hook, how about its loading capacity?
5. Do you need only magnet or full set equipment with cable reel, control cabinet and cable connector?
6. Do you prefer FOB or CIF price, which is the destination port?
(More details, please feel free to contact us directly. )


Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.


Convenient Transportation:
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
