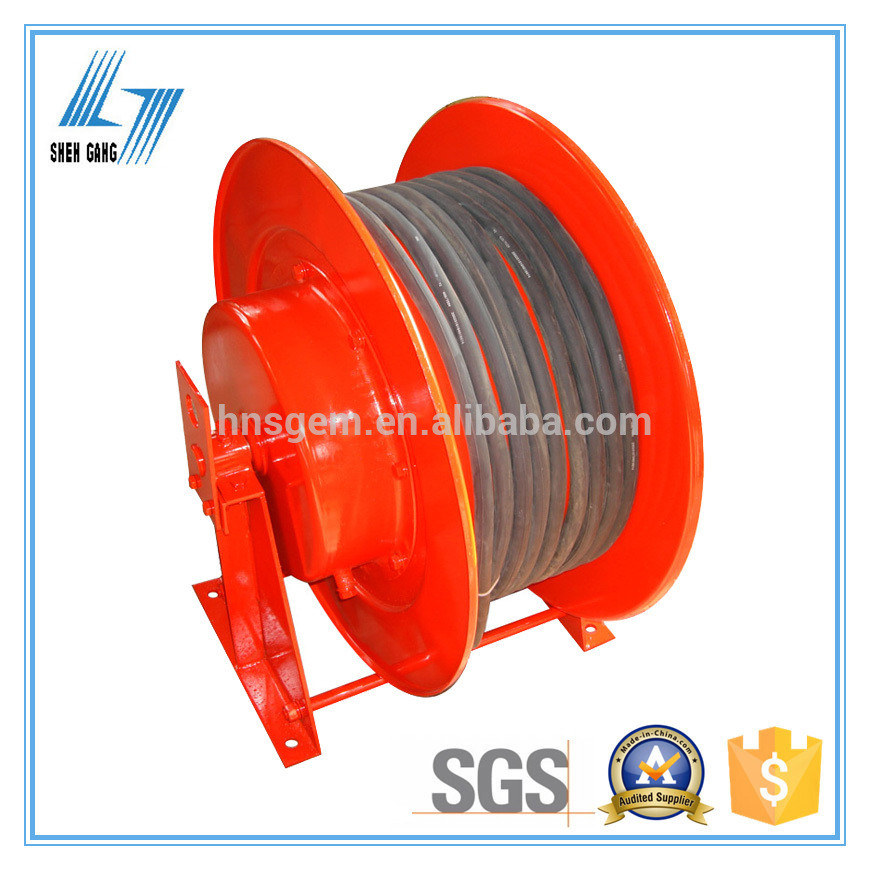

Elastic Electric Cord Reels Heavy Duty N.A. Female End Type JTB Series

Basic Information
Place of Origin: China (Mainland)
Brand Name: SHENGANG
Model Number: JTA75-30-2
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Cable Reel for Crane)
Supply Ability: 100 Piece/Pieces per Month reeling cable
Insulation Material: Rubber Type: Medium Voltage
Application: Industrial, Used With Movable Electrical Apparatus As Lifting Magnets,etc. Conductor Material: Aluminum
Jacket: Rubber Product Name: Cable Reel For Crane
Color: Blue Cable Length: 30m
Weight: 212kg Reel Type: Cable Reel
Motor Type: Spring Type Nstallation Pattern: Vertical Coiling
Phase Number: 2 Spring Type: Slip Ring Built-in
Port: Shanghai/Shenzhen/Guangzhou
High Light:

extension cord reel

,

retractable cord reel

Cable Reel for Crane, Reeling Cable



 -- JTA Series



Product Description

 Brief Introduction:



We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this reel has two types available as: Spring Type & Electrical Powered Type.



Features:

  • Using spiral springs as power without electric energy consumption to keep reliable in operation
  • Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
  • Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
  • Power supply easily, safety and reliability in operation, correct strs on the cables

Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself. There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service; over hanging type which can coil up much longer cables.



Benifits:

  • Easy installation and start of operation
  • Corrosion and water proof
  • Silver brush would prevent and reduce the noise by conductors friction

Technical Data:



Series item A B C D1 D2 d E F W Weight(kg)
15m,20m
Series
1 300 360 400 500 700 15 440 600 250 95
2 490 650 300 100
3 560 720 250 115
4 610 770 300 120
5 720 880 300 150



Cable Model Enabled Current   15m Series item 20m Series item 25m Series item
Core No.*Cross Section Continuously 1 min on/off
YC2*10 58 75 JTA75-15-2 1 JTA75-20-2 1 JTA75-25-2 2
JTB75-15-2 JTB75-20-2 JTB75-25-2
YC2*16 77 100 JTA100-15-2 1 JTA100-20-2 3 JTA100-25-2 2
JTB100-15-2 JTB100-20-2 JTB100-25-2
YC2*25 106 135 JTA135-15-2 4 JTA135-20-2 4 JTA135-25-2 3
JTB135-15-2 JTB135-20-2 JTB135-25-2
YC3*10+1*6 50 65 JTA65-15-4 2 JTA65-20-4 4 JTA65-25-4 2
JTB65-15-4 JTB65-20-4 JTB65-25-4



 Overall Dimension Drawing:

 Elastic Electric Cord Reels Heavy Duty N.A. Female End Type JTB Series 0

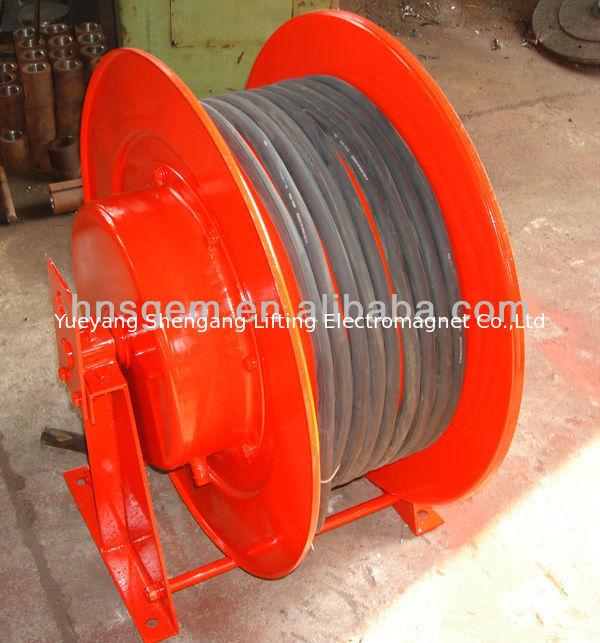

Physical Product Photo :



 Elastic Electric Cord Reels Heavy Duty N.A. Female End Type JTB Series 1     Elastic Electric Cord Reels Heavy Duty N.A. Female End Type JTB Series 2



Elastic Electric Cord Reels Heavy Duty N.A. Female End Type JTB Series 3     Elastic Electric Cord Reels Heavy Duty N.A. Female End Type JTB Series 4



Elastic Electric Cord Reels Heavy Duty N.A. Female End Type JTB Series 5



FAQ

 In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :



1.Do you have special requirement about the power types?

spring type / motor powered/hysteresis?



2.What is the cable specification?

cable core number and cross section, coil length of cable, electric current)?



3. What kind of mobile equipment will the cable reel be applied with?

lifting magnet, crane or others



4. What kind of installation patterns you prefer?

Vertical coiling or Horizontal coiling?
