Place of Origin: | Hunan, China (Mainland) |
---|---|
Brand Name: | SHENGANG |
Model Number: | JTD85-40-4 |
Minimum Order Quantity: | 1 Piece/Pieces |
Price: | Negotiable |
Packaging Details: | standard export package (Electric Cable Reel Drum for Moving Device) |
Supply Ability: | 100 Piece/Pieces per Month electric cable reel drum for moving device |
Usage: | Winding | Product Name: | Electric Cable Reel Drum For Moving Device |
---|---|---|---|
Color: | Blue | Cable Length: | 50m |
Weight: | 162kg | Reel Type: | Cable Reel |
Motor Type: | Spring Type | Installation Pattern: | Horizontal Coiling On The Ground(reel Movable) |
Phase Number: | 4 | Spring Type: | Slip Ring Built-in |
Application: | Used With Movable Electrical Apparatus As Lifting Magnets,etc. | Port: | Shanghai/Shenzhen/Guangzhou |
High Light: | extension cord reel,retractable cord reel |
electric cable reel drum for moving device
Brief Introduction:
We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this reel has two types available as: Spring Type & Electrical Powered Type.
Features:
Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself. There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service; over hanging type which can coil up much longer cables.
Benifits:
Technical Data:
Overall Dimension | ||||||||||
item | A | B | C | D1 | D2 | d | E | F | W | Weight(kg) |
1 | 300 | 360 | 400 | 500 | 700 | 15 | 610 | 760 | 425 | 143 |
2 | 300 | 360 | 400 | 500 | 700 | 15 | 710 | 860 | 525 | 455 |
3 | 400 | 460 | 450 | 600 | 800 | 18 | 643 | 800 | 500 | 162 |
4 | 500 | 580 | 550 | 800 | 1000 | 18 | 835 | 990 | 690 | 236 |
Technical Data | ||||||||||
Cable Model | Enabled Current | 40m Series | item | 50m Series | item | 100m Series | item | |||
Core No.*Cross Section | Continuously | 1 min on/off | ||||||||
YC3*6+1*4 | 35 | 50 | JTD50-40-4 | 1 | JTD50-50-4 | 3 | ||||
YC3*10+1*6 | 50 | 65 | JTD65-40-4 | 1 | JTD65-50-4 | 3 | JTD65-100-4 | 4 | ||
YC3*16+1*6 | 66 | 85 | JTD85-40-4 | 1 | JTD85-50-4 | 3 | ||||
YHD8*6 | 35 | 50 | JTD50-40-8 | 2 |
Overall Dimension Drawing:

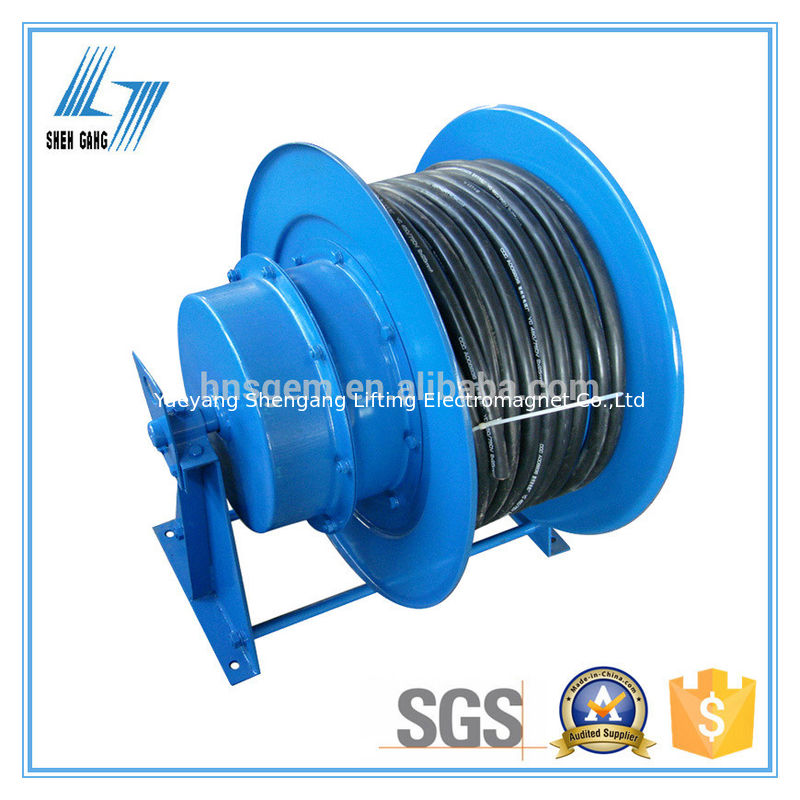

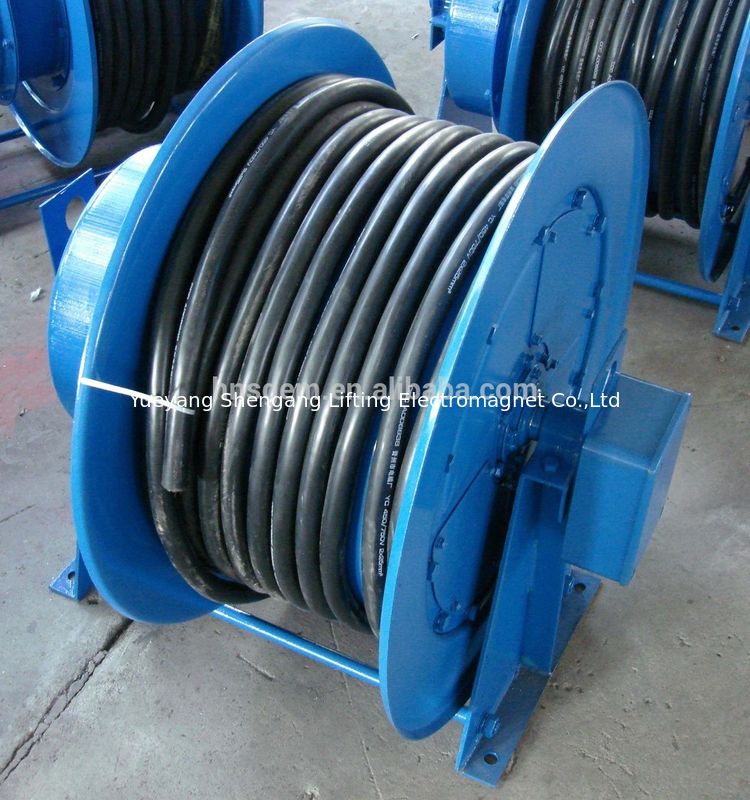

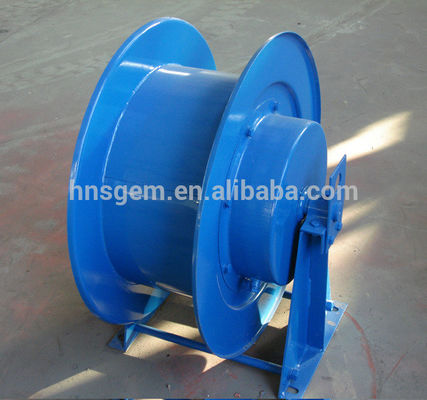

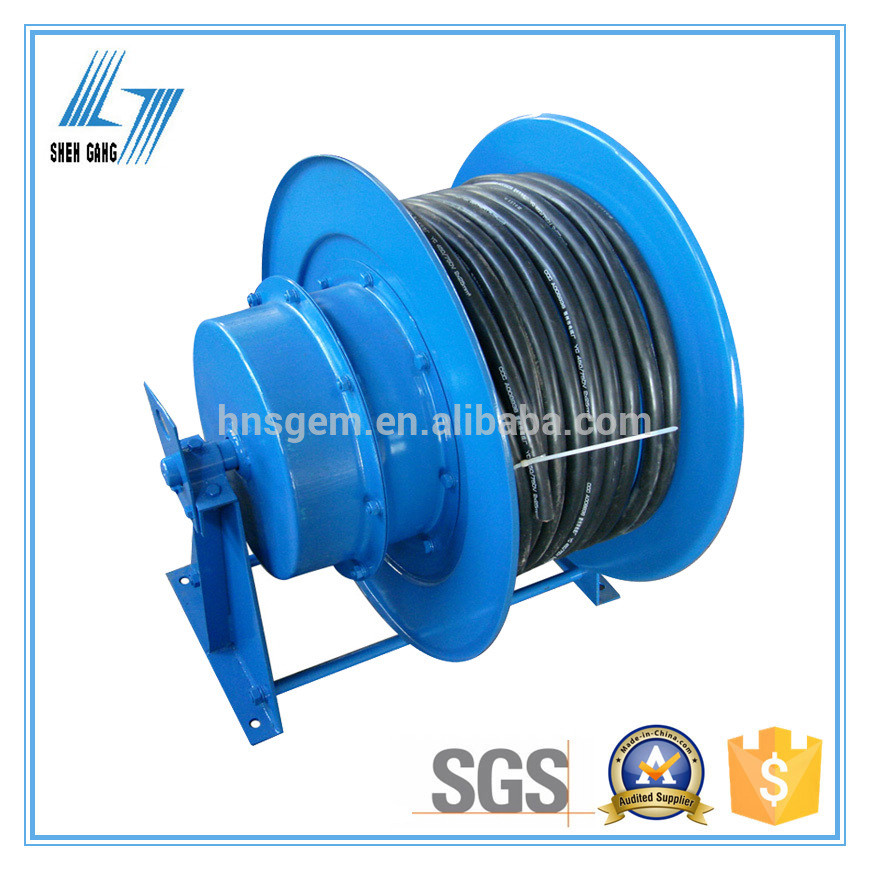

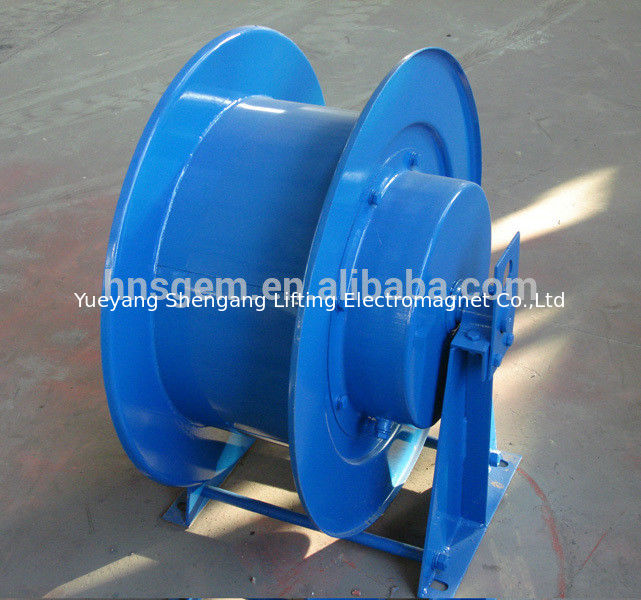

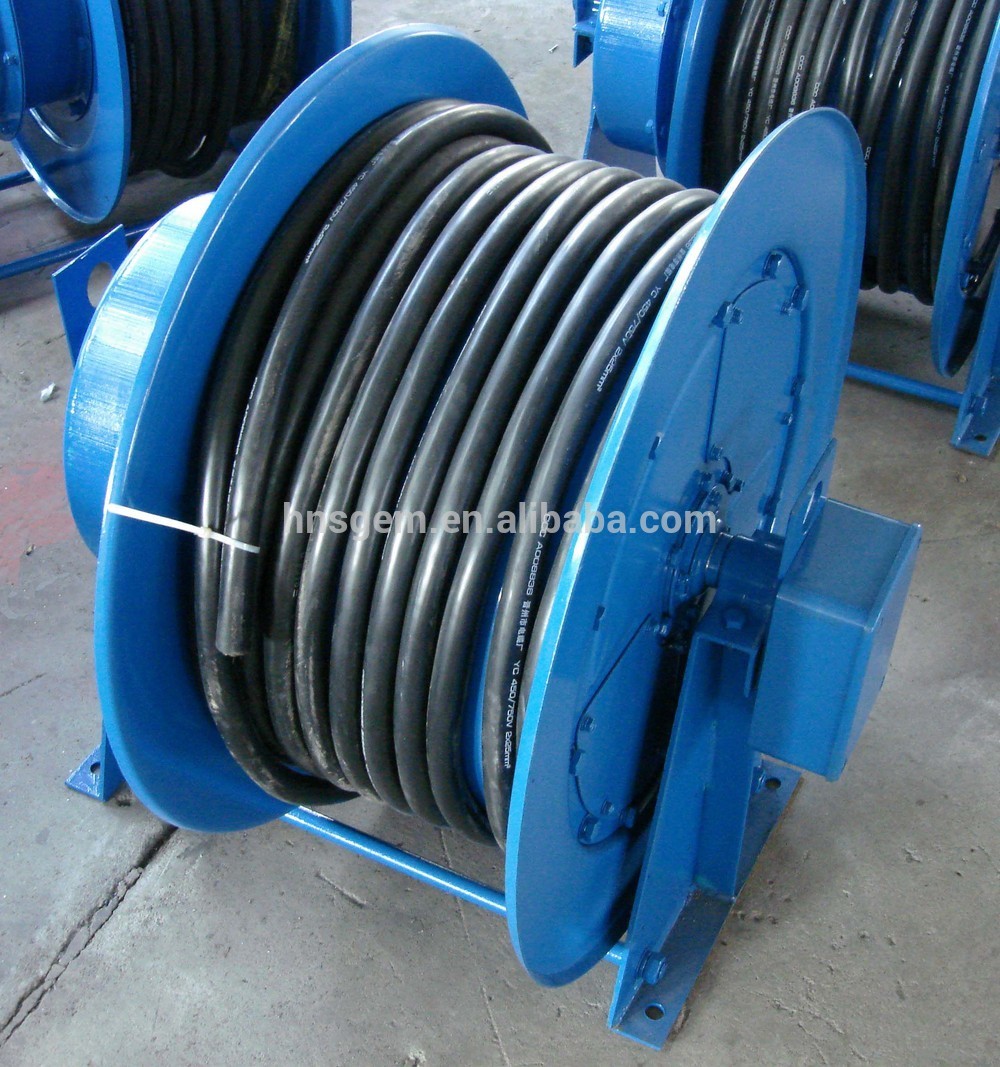

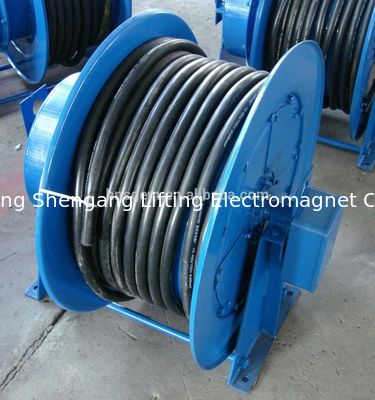

Physical Product Photo :
In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :
1.Do you have special requirement about the power types?
spring type / motor powered/hysteresis?
2.What is the cable specification?
cable core number * cross section, coil length of cable, electric current?
3. What kind of mobile equipment will the cable reel be applied with?
lifting magnet, crane or others?
4. What kind of installation patterns you prefer?
Vertical coiling or Horizontal coiling?
