Electric Motor Cable Reel Drum

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: JQD-100-II
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Electric Motor Cable Reel Drum)
Supply Ability: 100 Piece/Pieces per Month electric motor cable reel drum
Features: Simple Structure,small Weight&size, Easy-installation And Long Life Product Name: Electric Motor Cable Reel Drum
Color: Red Motor Type: Moment Motor Powered
Cable Length: 100m Reel Type: Cable Reel
Structure Type: Slip Ring Out-built Installation Pattern: Horizontal Coiling On The Ground(reel Movable)
Application 1: Used For Lifting Magnet, Electric Grab,electric Flat Car,etc. Application 2: Industrial Magnet
Port: Shanghai/Shenzhen/Guangzhou
High Light:

extension cord reel


industrial hose reel

Electric Motor Cable Reel Drum


--JQD Series Magnetic Coupling Type


Brief Introduction:


 Motorized mangetic couple cable reel JQD series feasture not only the synchronization of the magnetic coupler and cable reel, but also the harmonization of power, cable reel and separate mangetic coupler with small size & weight, easy-installation and much more. It is suitable for cable deploying and retracting vertically long distance as well as horizontally synchronously,large used in traveling equipment such as liftig magnet, electric grab, electric flat car and etc.


  • Adopt magnetic coupler as the synchronous differential mechanism with good reliable synchronization of cable deploying and retracting
  • Widely used to cables deploying and retracting of different traveling equipment synchronously.
  • Long vertical deploying and retracting distance, 150m at most
  • Controlling model of cable reel: the motor works when retracting, while stops when deploying
  • Simple structure, small weight & size, easy-installation and long-life


  • Permanent magnet technology for the reel drive system is not level, low speed, no heat phenomena;
  • Cable tension adjustable, to protect cable;
  • No electrical components, using reliable.

Technical Data:

Electric Motor Cable Reel Drum 0


 Overall Dimension Drawing:


 Electric Motor Cable Reel Drum 1

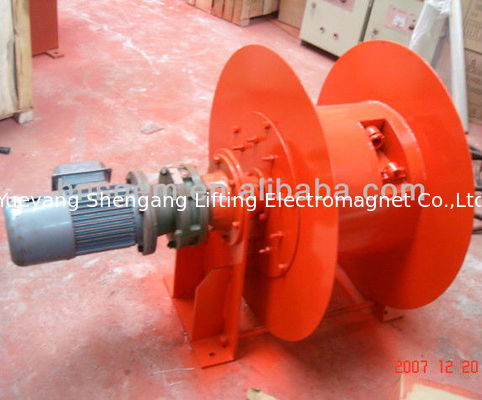

Physical Product Photo:


Electric Motor Cable Reel Drum 2


Electric Motor Cable Reel Drum 3



Electric Motor Cable Reel Drum 4



 In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :


1.Do you have special requirement about the power types?

spring type / motor powered/hysteresis?


2.What is the cable specification?

cable core number and cross section, coil length of cable, electric current)?


3. What kind of mobile equipment will the cable reel be applied with?

lifting magnet, crane or others


4. What kind of installation patterns you prefer?

Vertical coiling or Horizontal coiling?
