Electric Steel Cable Drum / Winding Cable Drum

Basic Information
Place of Origin: Hunan, China (Mainland)
Model Number: JTA75-20-2
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Cable Drum)
Supply Ability: 100 Piece/Pieces per Month Cable Drum
Usage: Winding Product Name: Electric Steel Cable Drum, Winding Cable Drum
Series: JTA Type Cable Drum Type: Slip Ring Built-in Installed
Current: 75A Color: Blue
Cable Length: 20m Weight: 120kg
Installation Patterns: Vertical Coiling Phase Number: 2
Application: Elastic Power Supply Cable Reel Port: Shanghai/Shenzhen/Guangzhou
High Light:

metal hose reel


automatic hose reel

Electric Steel Cable Drum, Winding Cable Drum


Product Description

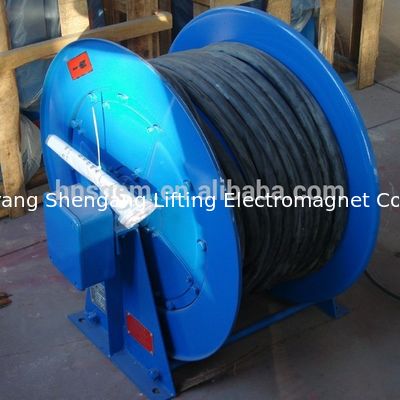

 Physical Product Photo :


Electric Steel Cable Drum / Winding Cable Drum 0     Electric Steel Cable Drum / Winding Cable Drum 1


Electric Steel Cable Drum / Winding Cable Drum 2

Brief Introduction:


We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this reel has two types available as: Spring Type & Electrical Powered Type.



  • Using spiral springs as power without electric energy consumption to keep reliable in operation
  • Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
  • Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
  • Power supply easily, safety and reliability in operation, correct strs on the cables

Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself. There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service; over hanging type which can coil up much longer cables.



  • Easy installation and start of operation
  • Corrosion and water proof
  • Silver brush would prevent and reduce the noise by conductors friction

Technical Data:




Cable ModelEnabled Current 15m Seriesitem20m Seriesitem25m Seriesitem
Core No.*Cross SectionContinuously1 min on/off


 Overall Dimension Drawing:

 Electric Steel Cable Drum / Winding Cable Drum 3



 In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.Do you have special requirement about the power types?

spring type / motor powered/hysteresis?


2.What is the cable specification?

cable core number and cross section, coil length of cable, electric current)?


3. What kind of mobile equipment will the cable reel be applied with?

lifting magnet, crane or others


4. What kind of installation patterns you prefer?

Vertical coiling or Horizontal coiling?


For our relate products you may interested in, kindly click for details:


1. JTA Series Spring Driven Cable Reel


2. JT Series Hose Reel


3. Motor Type Cable Reel


4. Hyster Type Cable Reel


5. Motorized Couple Type Cable Reel


6. Magnetic Coupling Type Cable Reel


*Lifting Magnet Series:

--application for transporating steel scraps, steel plates, billets,etc.

Electric Steel Cable Drum / Winding Cable Drum 4

*Cable Reel Series:

--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..

Electric Steel Cable Drum / Winding Cable Drum 6

Company Information

We are a professionl lifting electromagnet equipment manufacturer and exporter with more than 15 years export experience. Very sincerely looking for long-term win-win business here!


Major exports include lifting electromagnet, magnetic lifter, electromagnetic separator, cable reel, control cabinet and magnetic stirr, etc.


Our factory also pass the SGS audit per year with certification issued.


We warmly welcome you to enquiry or visit us, and also appreciate any of your comments!


We also have our own brand as "SHENGANG"

Electric Steel Cable Drum / Winding Cable Drum 8 Electric Steel Cable Drum / Winding Cable Drum 9

Electric Steel Cable Drum / Winding Cable Drum 10Electric Steel Cable Drum / Winding Cable Drum 11
