Electrical Cable Reel Specifications

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: Electrical Cable Reel-SHENGANG
Model Number: JTD50-50-4 Electrical Cable Reel
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package (Electrical Cable Specifications)
Supply Ability: 100 Piece/Pieces per Month Electrical Cable Reel Specifications
Insulation Material: PVC Type: Low Voltage
Application: Industrial, Used With Movable Electrical Apparatus As Lifting Magnets,etc. Conductor Material: Aluminum
Jacket: Rubber Product Name: Electrical Cable Specifications
Color: Red Cable Length: 40m
Weight: 143kg Reel Type: Cable Reel
Motor Type: Spring Type Installation Pattern: Horizontal Coiling On The Ground(reel Movable)
Phase Number: 4 Spring Type: Slip Ring Built-in
Port: Shanghai/Shenzhen/Guangzhou
High Light:

metal hose reel

,

automatic hose reel

Electrical Cable Specifications



Product Description

Brief Introduction:



We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this reel has two types available as: Spring Type & Electrical Powered Type.

Features:

  • Using spiral springs as power without electric energy consumption to keep reliable in operation
  • Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
  • Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
  • Power supply easily, safety and reliability in operation, correct strs on the cables

Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself. There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service; over hanging type which can coil up much longer cables.



Benifits:

  • Easy installation and start of operation
  • Corrosion and water proof
  • Silver brush would prevent and reduce the noise by conductors friction

Technical Data:



SeriesitemABCD1D2dEFWWeight(kg)
15m,20m
Series
13003604005007001544060025095
2490650300100
3560720250115
4610770300120
5720880300150



Cable ModelEnabled Current 15m Seriesitem20m Seriesitem25m Seriesitem
Core No.*Cross SectionContinuously1 min on/off
YC2*105875JTA75-15-21JTA75-20-21JTA75-25-22
JTB75-15-2JTB75-20-2JTB75-25-2
YC2*1677100JTA100-15-21JTA100-20-23JTA100-25-22
JTD100-15-2JTD100-20-2JTD100-25-2
YC2*25106135JTA135-15-24JTA135-20-24JTA135-25-23
JTB135-15-2JTB135-20-2JTB135-25-2
YC3*10+1*65065JTA65-15-42JTA65-20-44JTA65-25-42
JTB65-15-4JTB65-20-4JTB65-25-4



Overall Dimension Drawing:

 Electrical Cable Reel Specifications 0

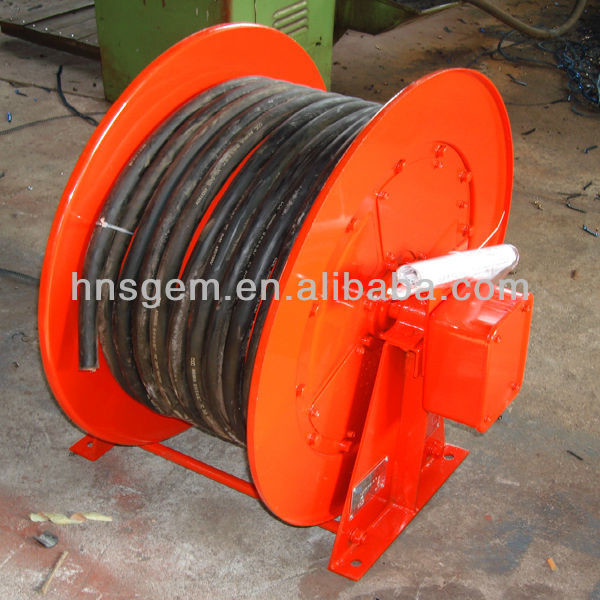

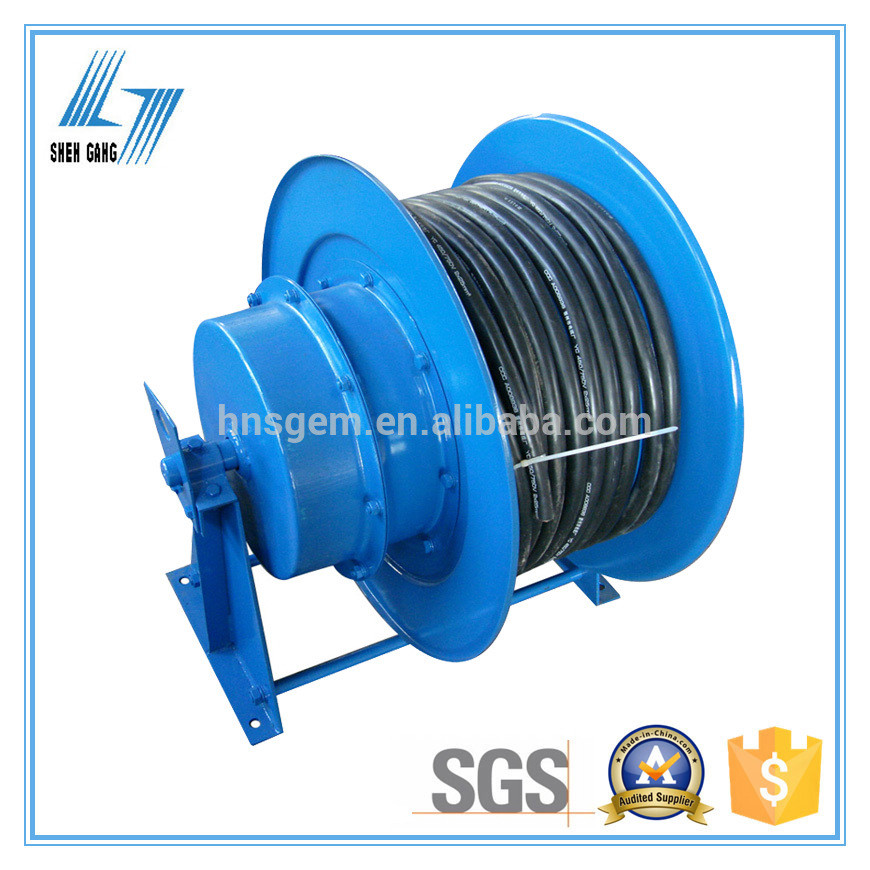

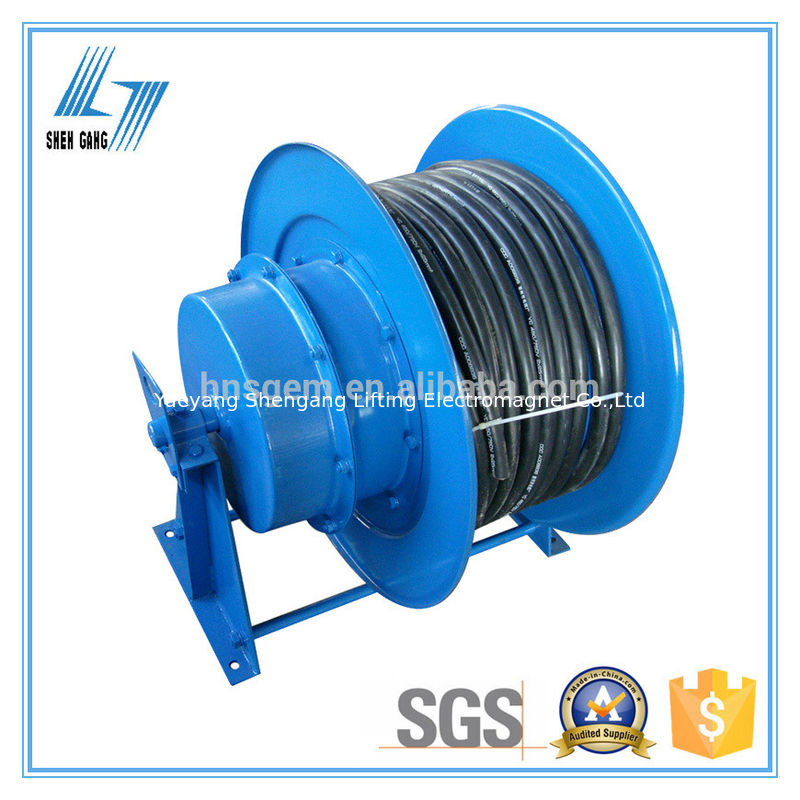

Physical Product Photo :



 Electrical Cable Reel Specifications 1     Electrical Cable Reel Specifications 2



Electrical Cable Reel Specifications 3     Electrical Cable Reel Specifications 4



Electrical Cable Reel Specifications 5



FAQ

 In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :



1.Do you have special requirement about the power types?

spring type / motor powered/hysteresis?



2.What is the cable specification?

cable core number * cross section, coil length of cable, electric current?



3. What kind of mobile equipment will the cable reel be applied with?

lifting magnet, crane or others?



4. What kind of installation patterns you prefer?

Vertical coiling or Horizontal coiling?
