Electromagnetic Conveyor Belt Magnetic Separator

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: Mgnetic Separator--SHENGANG
Certification: ISO9001
Model Number: RCDD-10 Mgnetic Separator
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Conveyor Belt Magnetic Separator)
Supply Ability: 80 Piece/Pieces per Month Conveyor Belt Magnetic Separator
Condition: New Type: Magnetic Separator, Electromagnet Type
Production Capacity: Based On Customer Work Condition Voltage: DC-110V, DC-110V
Power(W): 2.9kw Dimension(L*W*H): 2900*1480*768mm
Weight: 2000kg, 2000kg Product Name: Electromagnetic Converyor Belt Magnetic Separator
Color: Red Belt Width: 1000mm
Power: 2.9kw Duty Cycle: TD-100%
Standard Erection Height: 260mm Application: Magnet Separator To Remove Magnetic Tramp Iron From Material Bed
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
Port: Shanghai/Shenzhen/Guangzhou
High Light:

permanent magnet alternator

,

small strong magnets

Electromagnetic Converyor Belt Magnetic Separator-- Series RCDD



Product Description

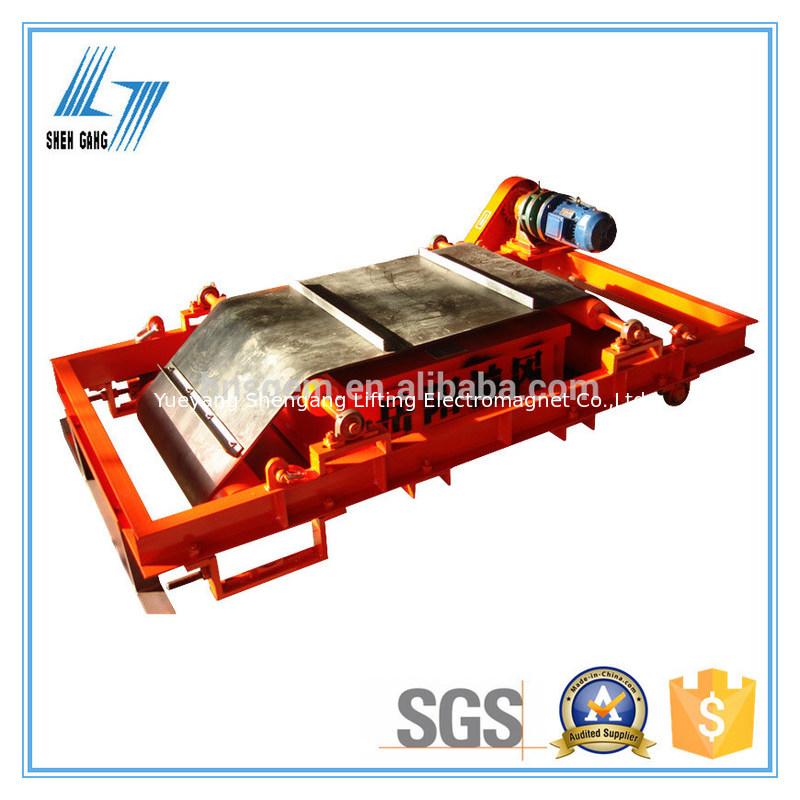

 Physical Product Photo:



Electromagnetic Conveyor Belt Magnetic Separator 0



Electromagnetic Conveyor Belt Magnetic Separator 1

Brief Introduction :



RCDD series is self-unloading type magnet separator in long-term system. It is added platform, iron removing belt and etc, which is suspended over the belt conveyer. Through the conveyance of the iron unloading belt, the separator will auto discarge the iron magnetic articles which are absorbed by the magnet into the iron collecting box. Thus removing the iron magnetic articles is gained. Which is the one of the most common used types of separator.



Application:



Most being suitable for removing iron magnetic articles from thicker bed and granularity of the materials as ores, coal, hard coke, limestone, spells, etc.



Features:



Improving and purifying non-magnetic materials; Recycling Iron

  •  made of aluminum coil and iron core,etc.
  •  high gauss
  •  self-discharing type

Technical Data:



International

Standard

model

Standard

Erection T(mm)

width of Conveyer belt(mm)

Rated voltage

(v)

Cold

state

Consumption

Power(kw)

Weight

(kg)

Overall dimension (mm)

Driving

Motor

capacity

(kw)

Corollary control

panel

ABCDEF
RCDD-51605001101.0310742300133011009145005201.5SSTM-1.5D1-D
RCDD-61705001101.4116024001400115010686505201.5
RCDD-62206501101.8133024001250125011206505551.5SSTM-3.1D1-D
RCDD-82508001102.6147027501600136012708005802.2
RCDD-82508001102.9200027501770146514809006252.2
RCDD-1026010001102.9200029001770146514809006252.2SSTM6.2D1-D
RCDD-1231012002204.22700320020001590168010006254
RCDD-1641016002208.26020380026201850199014007254SSTQ-12D1-D



Overall Dimension Drawing :

Electromagnetic Conveyor Belt Magnetic Separator 2



Electromagnetic Conveyor Belt Magnetic Separator 3Electromagnetic Conveyor Belt Magnetic Separator 4





FAQ

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.what kind of material need to process separation?



2.does it work with belt? if yes, how about the belt width? belt speed?



3.how about the handling capacity you require? and the separation material size?



4.do you need self-discharging type or manual discharge type?



5.rectangular shape or round shapepermanent magnet type or electromagnet type?



For our relate products you may interested in, kindly click for details:



1. Manual Discharging Type Rectangular Electromagnetic Separator



2.Manual Discharging Type Circular Electromagnetic Separator



3. Self-Discharging Conveyor Belt Electromagnetic Separator



 4. Self- Discharging Oil Cooling Type Rectangular Electromagnetic Separator



5. Manual Discharging Type Rectangular Permanent Magnetic Separator



6. Self-discharging Type Conveyor Belt Permanent Magnetic Separator



7. Lifting Electromagnet for Billet Lifting



8. Lifting Electromagnet for Sheet Plate





*Lifting Magnet Series:

--application for transporating steel scraps, steel plates, billets,etc.

Electromagnetic Conveyor Belt Magnetic Separator 5

*Cable Reel Series:

--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..

Electromagnetic Conveyor Belt Magnetic Separator 7
