Handling Magnetic Ore Separator , Wet Magnetic Separator For Iron Ore

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO9001:2008
Model Number: CTN-1018
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package( Roller Separator Magnetic Drums)
Delivery Time: 30 workdays after signed the contract
Payment Terms: L/C, T/T, Western Union
Supply Ability: 70 Piece/Pieces per Month
Condition: New Type: Magnetic Separator
Weight: 4500kg Color: Red/Yellow
Drum Speed: 22r/min Diameter*Length: 1050*1800mm
Capacity: 120m3/h Magnetic Field Intensity: 1900GS
Motor Power: 5.5KW Product Material: Magnetic Steel With Rare Earth
Drums Number: 1 Warranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machinery Overseas Port: Shanghai/Shenzhen/Guangzhou
High Light:

magnetic separation equipment


magnetic coolant separator

Permanent Magnetic Drum Separator for Handling Hematite Ore



Suitable for iron ore, fly ash of iron power plant separator with large capacity, high recovery rate, especially for iron ore concentrate select.

--Direct flow tank (CTS) is suitable for rougher flotation and concentration of ore particles 0.1-0.6 mm.
--Counter-current tank(CTN) is suitable for roughing and scavenging of ore particles 0.1-0.6 mm;as well as dense medium recycle in coal preparation industry.
--Half counter-current (CTB) is suitable for rougher flotation and concentration of ore particles 0.5-1 mm.

Working principle:

When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation.In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.


* Optimized design
* Scientific magnetic circuit, made of strong magnetic coercive force
* High-remanence permanent magnet
* Safe and reliable. Different Gauss can be expected at the drum surface.


Main Technical Data:


Model Roller size Roller surface magnetic induction indensity (mT) Processing capacity Motor power Roller rotating speed Total weight
(diameter ×length) (mm) Pole geometric center value Sweeping and separarting area average value Highest magnetic induction indensity t/h m3/h kw r/min kg
CTN-718 750×1800 120 155 180 20~45 72 3 35 2100
CTN-918 900×1800 148 165 190 25~55 90 4 28 2900
CTN-924 900×2400 148 165 190 35~70 110 4 28 3600
CTN-1018 1050×1800 148 165 190 40~75 120 5.5 22 4000
CTN-1021 1050×2100 160 240 280 45~88 140 5.5 22 4500
CTN-1024 1050×2400 148 165 190 52~100 160 5.5 22 5000
CTN-1030 1050×3000 160 240 280 65~125 200 7.5 22 6200
CTN-1218 1200×1800 160 240 240 47~90 140 5.5 19 5800
CTN-1224 1200×2400 148 165 165 82~120 192 7.5 19 6200
CTN-1230 1200×3000 148 165 165 80~150 240 7.5 19 7200
CTN-1530 1500×3000 180 240 240 90~170 270 11 14 8900
CTN-1540 1500×4000 180 240 240 115~220 350 11 14 9900

 Operation Photo:

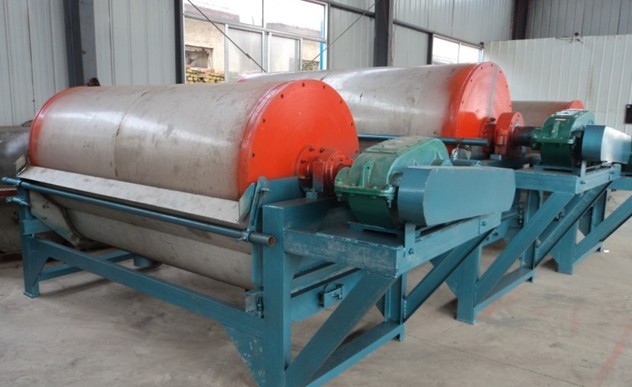

Handling Magnetic Ore Separator , Wet Magnetic Separator For Iron Ore 0

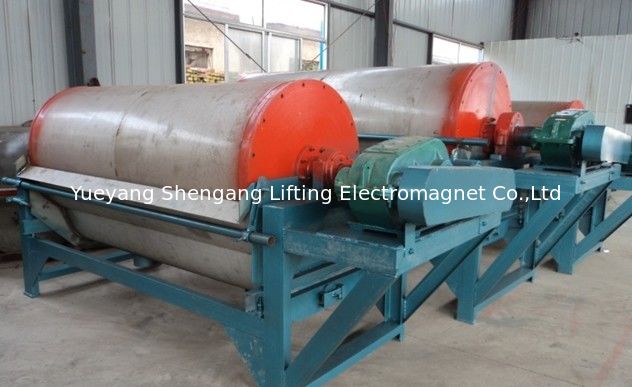

Handling Magnetic Ore Separator , Wet Magnetic Separator For Iron Ore 1

Other magnetic Separators:

The separator is used to separate or eliminate magnetic iron materials from non-magneic material in metallurgical,mining,power,seaport,ceramic industry,etc.


Handling Magnetic Ore Separator , Wet Magnetic Separator For Iron Ore 2



Q:Why customers choose us?
A:We are a professional magnetic separator products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.


Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.


Q:How long is your delivery time?
A:Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.


Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.


About Enquiry:

To help you get the best magnetic separator for your application, we should have the following information:


1.what kind of material need to process separation?
2.does it work with belt? if yes, how about the belt width? belt speed?
3.how about the handling capacity you require? (T/h, or m3/h or per day)?
4.for wet separation or dry separation ?
5.how many GS(magnetic field intensity) you require?


Standard Export Package:

Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
