| Place of Origin: | Hunan, China (Mainland) |
|---|---|
| Brand Name: | SHENGANG |
| Certification: | ISO9001:2008 |
| Model Number: | 2XCTN1021 |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | 30 workdays after signed the contract |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 70 Piece/Pieces per Month |
| Condition: | New | Type: | Magnetic Separator |
|---|---|---|---|
| Weight: | 8100kg | Product Name: | Roller Separator Magnetic Drums |
| Color: | Red | Drum Speed: | 21r/min |
| Diameter: | 1050mm | Capacity: | 160m3/h |
| Magnetic Field Intensity: | 1800-2800GS | Drum Length: | 2100mm |
| Product Material: | Magnetic Steel With Rare Earth | Drums Number: | 2 |
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shanghai/Shenzhen/Guangzhou | ||
| High Light: | magnetic separation equipment,wet drum magnetic separator |
||

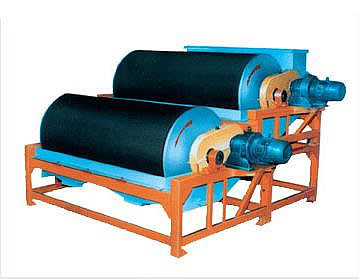

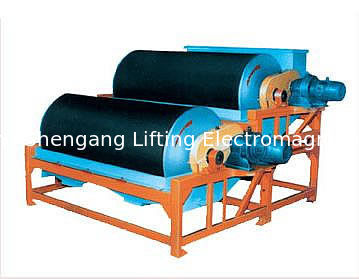

High Intensity of Double Drums Permanent Magnetic Drum Separator
Permanent-magnet Roller Separator Series 2XCTN is specially designed for heavy-medium coal washing plant to recover the magnetic material. It is a kind of countercurrent, roller separator.
The magnetic field distribution of this separator can improve the efficiency of recovering the fine powder. And it has a ingeniously designed sorting equipment which can create a reasonable flow of pulp and can greatly improved the magnetic material's recovery efficiency.
This kind of separator has a strong ablity to adapt the change of the materials' flow and concentration and it is widely used in heavy-medium coal washing plant.
Working Principle:
The use of equipment such as magnetic force between the magnets, the magnetic slurry Minerals to attract cones onto the surface, and together with the cylinder spin off question. From the magnetic field in gravity,(scraper) role, from the aircraft, instead of I rule out the possibility of magnetic material from the tailing complete separation of roles.
Main Technical Data:
|
Mode |
Dimeter |
Cartridge (mm) |
The sorting process extinguishers intensity scale magnetic induction |
Handing capacity (the volume terms of 30% concentration m3/h) |
Drive types and models of motor |
Equipment (kg) |
Rotatory speed (r/min) |
|
|
2XCTN |
2XCTN |
|||||||
|
2XCTN1012 |
1050 |
1200 |
180-280 |
70 |
XWD3-6-1/71 YIDDL-4 3KW |
5600 |
2600 |
21 |
|
2XCTN1015 |
1500 |
90 |
XWD4-7-1/71 YIIZW-4 4KW |
6200 |
3200 |
|||
|
2XCTN1018 |
1800 |
120 |
XWD4-7-1/71 YIIZM-4 4KW |
7000 |
3700 |
|||
|
2XCTN1021 |
2100 |
160 |
XWD-55-7-1/71 YI325-4 5.5KW |
8100 |
4200 |
|||
|
2XCTN1024 |
2400 |
200 |
XWD5.5-7-1/71 YI325-4 5.5KW |
9500 |
4900 |
|||
|
2XCTN1027 |
2700 |
240 |
WD5.5-7-1/71 YI32M-4 7.5KW |
10900 |
5500 |
|||
|
2XCTN1030 |
3000 |
320 |
XWDY7.5-8-1/71 YI32M-4 7.5KW |
11140 |
5900 |
|||
|
2XCTN1230 |
1200 |
300 |
180-280 |
400 |
XWDY7.5-8-1/59 YI6DM-6 7.5KW |
15000 |
7600 |
|
Operation Photo:
Other magnetic Separators:
The separator is used to separate or eliminate magnetic iron materials from non-magneic material in metallurgical,mining,power,seaport,ceramic industry,etc.
