High Performance Self-Cleaning Type Suspended Belt Permanent Magnetic Separator

Basic Information
Place of Origin: CHINA
Brand Name: SHENGANG MAGNET
Certification: ISO,SGS,BV
Model Number: RCYD-8
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Plywood Case,size is about 1530*1530*600mm
Delivery Time: 20 workdays after signed the contract
Payment Terms: T/T, Western Union, L/C, D/P, D/A
Supply Ability: 40pcs per month
Color: Red Belt Width: 800mm
Standard Erection Height: 250mm Duty Cycle: 100%
Driving Motor Power: 2.2KW Size(L*W*H): 2050*1105*650mm
Magnetic Intensity Field: 500-700Gs Weight: 1790kg
Application: Remove Iron Impurities From Non-Magnetic Material Belt Speed: 2.5m/s
Magnet Type: Permanent NdFeB Magnet Feature: Natural Cooling Auto Iron-Unloading
High Light:

small strong magnets

,

magnetic lifting tool

Introduction:



Self-discharge permanent-magnet separator series RCYD is energy-economizing type separator equipment using the latest third generation rare-earth permanent-magnet material NdFeB to form magnetic system which produces strong magnet field attraction.



Features:



· High magnetic field intensity, usually used in occasions with plenty of iron.
· The wholly sealed structure makes the separator water-proof, dust-proof and corrosion resisting.
· Made of rare earth NdFeB
· High gauss
· Energy saving
· Easy to install and convenient to use.
· High efficiency and stable performance.
· Good operational reliability and flexibility.



Application:




It is added platform, iron removing belt and etc, which is suspended over the belt conveyer. Through the conveyance of the iron unloading belt, the separator will auto discard the iron magnetic articles which are absorbed by the magnet into the iron collecting box. Thus removing the iron magnetic articles is gained.

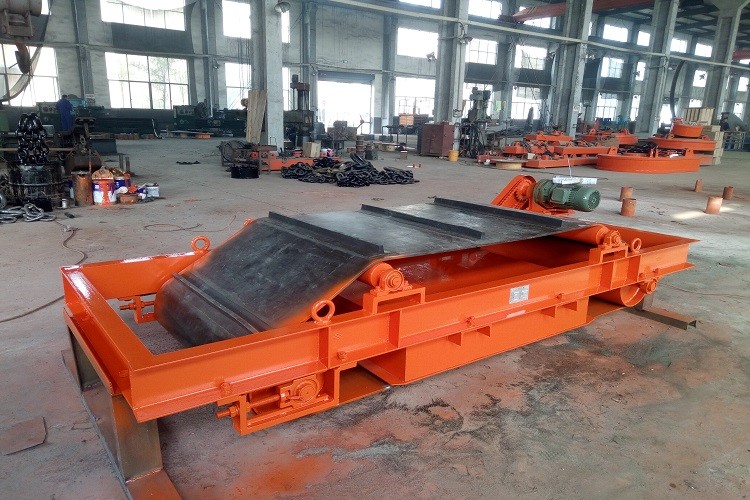

Overall dimension and product photos:



High Performance Self-Cleaning Type Suspended Belt Permanent Magnetic Separator 0

Technical data:



Model Belt width
mm
height
h=mm
Bed depth
≤ mm
Gauss
≥ mT
motor
≤ KW
speed
≤ m/s
cycle weight
kg
Dimension mm
A B C D E
RCYD(C)-5 500 150 100 65 1.5 2.5 continously 750 1900 735 935 753 950
RCYD(C)-6 600/650 180 130 65 1.5 920 2050 780 1030 753 1100
RCYD(C)-6.5 650 200 150 70 1.5 1200 2165 780 1080 888 1200
RCYD(C)-8 800 250 200 70 2.2 1400 2350 786 1280 1088 1300
RCYD(C)-10 1000 300 250 70 3.0 2120 2660 920 1550 1335 1400
RCYD(C)-12 1200 350 300 70 4.0 3350 2860 1010 1720 1515 1550
RCYD(C)-14 1400 400 350 70 4.0 4450 3225 1050 1980 1755 1800
RCYD(C)-16 1600 450 400 70 5.5 6200 3350 1180 2160 1850 1950
RCYD(C)-18 1800 500 450 75 5.5 8100 3580 1210 2450 2130 2200
RCYD(C)-20 2000 550 500 75 7.5 9700 3800 1300 2700 2410 2400



Magnetic Separator Application:

High Performance Self-Cleaning Type Suspended Belt Permanent Magnetic Separator 1

Customers Visit and Certification:



High Performance Self-Cleaning Type Suspended Belt Permanent Magnetic Separator 2High Performance Self-Cleaning Type Suspended Belt Permanent Magnetic Separator 3

Other magnetic Separators:


The separator is used to separate or eliminate magnetic iron materials from non-magneic material in metallurgical,mining,power,seaport,ceramic industry,etc.



High Performance Self-Cleaning Type Suspended Belt Permanent Magnetic Separator 4

FAQ:



Q:Why customers choose us?
A:We are a professional
magnetic separator products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.



Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.



Q:How long is your delivery time?
A:Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.



Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.



About Enquiry:


To help you get the best magnetic separator for your application, we should have the following information:



1.What is the material on conveyor and how about material thickness?
2.Please inform us width and speed of the conveyor?
3.Kindly tell us your power supply information:Voltage,AC or DC,Frequency?
4.Do you need permanent magnetic separator or electromagnetic separator?
5.Do you prefer FOB or CIF price? Kindly inform us destination port.



Standard Export Package:

Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.

High Performance Self-Cleaning Type Suspended Belt Permanent Magnetic Separator 5
Factory Tour and Contacts:

High Performance Self-Cleaning Type Suspended Belt Permanent Magnetic Separator 6

Quick Response:



We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.



Convenient Transportation:

All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
