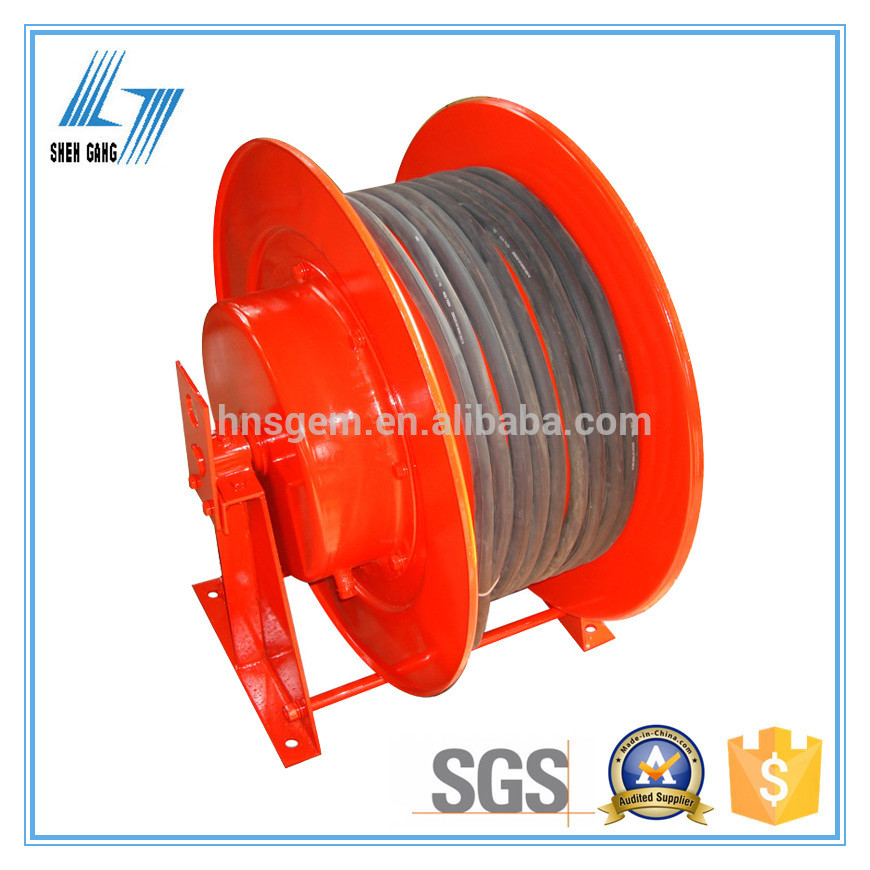

Industrial Crane Cable Reel Lifting Device

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: JTD50-40-4
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package ( Cable Reel Lifting Device)
Supply Ability: 100 Piece/Pieces per Month Cable Reel Lifting Device
Usage: Winding Product Name: Industrial Crane Cable Reel Lifting Device
Color: Red Cable Length: 40m
Weight: 143kg Reel Type: Cable Reel
Motor Type: Spring Type Installation Pattern: Horizontal Coiling On The Ground(reel Movable)
Phase Number: 4 Spring Type: Slip Ring Built-in
Application: Used With Movable Electrical Apparatus As Lifting Magnets,etc. Port: Shanghai/Shenzhen/Guangzhou
High Light:

retractable cord reel

,

industrial hose reel

Industrial Crane Cable Reel Lifting Device



Product Description

Brief Introduction:



We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this reel has two types available as: Spring Type & Electrical Powered Type.

Features:

  • Using spiral springs as power without electric energy consumption to keep reliable in operation
  • Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
  • Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
  • Power supply easily, safety and reliability in operation, correct strs on the cables

Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself. There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service; over hanging type which can coil up much longer cables.



Benifits:

  • Easy installation and start of operation
  • Corrosion and water proof
  • Silver brush would prevent and reduce the noise by conductors friction

Technical Data:



Overall Dimension
itemABCD1D2dEFWWeight(kg)
130036040050070015610760425143
230036040050070015710860525455
340046045060080018643800500162
4500580550800100018835990690236

Technical Data
Cable ModelEnabled Current 40m Seriesitem50m Seriesitem100m Seriesitem
Core No.*Cross SectionContinuously1 min on/off
YC3*6+1*43550JTD50-40-41JTD50-50-43
YC3*10+1*65065JTD65-40-41JTD65-50-43JTD65-100-44
YC3*16+1*66685JTD85-40-41JTD85-50-43
YHD8*63550JTD50-40-82

Overall Dimension Drawing:

 Industrial Crane Cable Reel Lifting Device 0

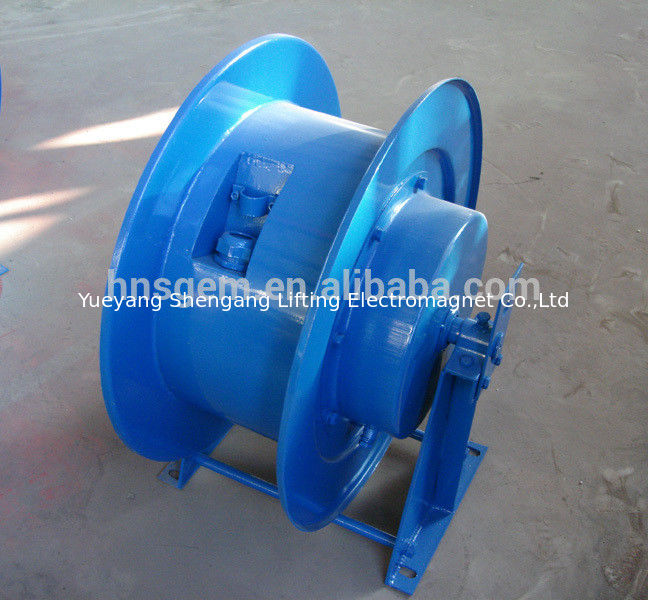

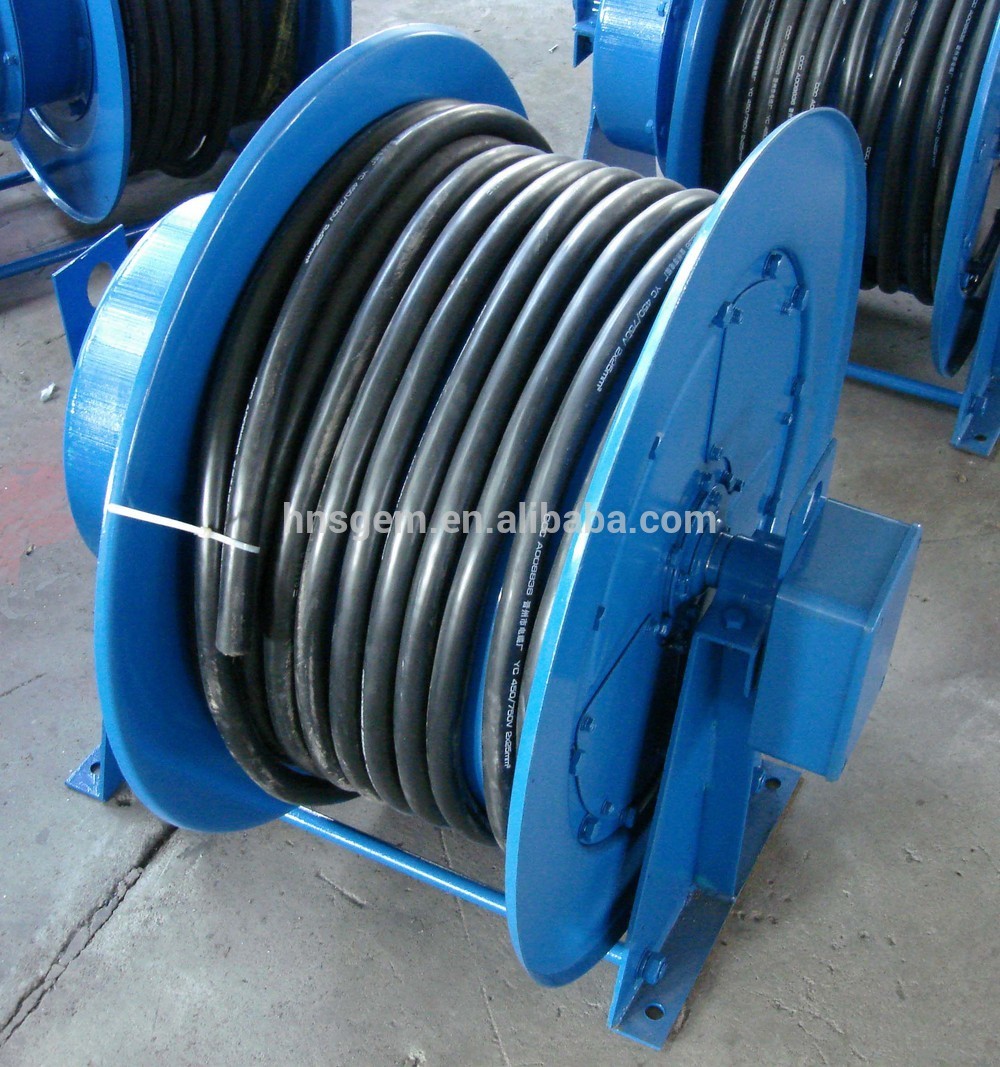

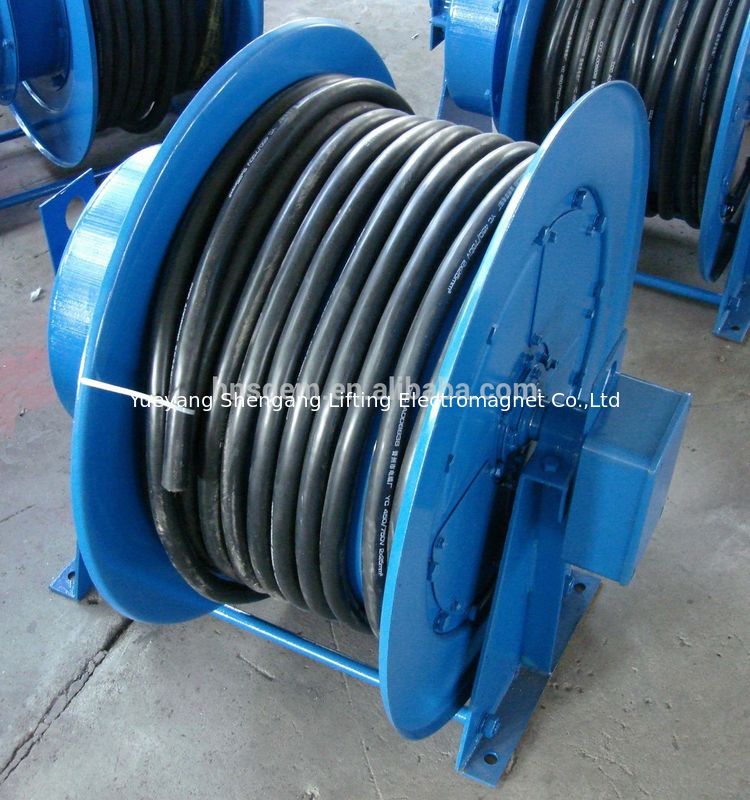

Physical Product Photo :



 Industrial Crane Cable Reel Lifting Device 1     Industrial Crane Cable Reel Lifting Device 2



Industrial Crane Cable Reel Lifting Device 3     Industrial Crane Cable Reel Lifting Device 4



Industrial Crane Cable Reel Lifting Device 5



FAQ

 In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :



1.Do you have special requirement about the power types?

spring type / motor powered/hysteresis?



2.What is the cable specification?

cable core number * cross section, coil length of cable, electric current?



3. What kind of mobile equipment will the cable reel be applied with?

lifting magnet, crane or others?



4. What kind of installation patterns you prefer?

Vertical coiling or Horizontal coiling?
