Iron Type Permanent Magnetic Separator Self Unloading Wooden Shavings Applied

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO,SGS,BV
Model Number: RCYD-10
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Industrial Separator )
Delivery Time: 20 workdays after signed the contract
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Piece/Pieces per Month Industrial Separator
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Product Name: Industrial Separator For Magnetic Metal Separation Type: Permanent Type Separator
Color: Red Unload Trigger Spec.: 3.3
Duty Cycle: TD-100% Belt Width: 1000mm
Standard Erection Height: 300mm Weight: 3060kg
Material: Made Of Rare Earth NdFeB Application: Applied For Power Industry,metallurgical Industry,etc.
Feature: Natural Cooling Auto Iron-Unloading Port: Any Port In China
High Light:

permanent magnet alternator

,

small strong magnets

Self-Unloading iron type Permanent Magnetic Separator for Wooden Shavings



Brief Introduction :



Self-discharge permanent-magnet separator series RCYD is energy-economizing type separator equipment using the latest third generation rare-earth permanent-magnet material NdFeB to form magnetic system which produces strong magnet field attraction.



Features:



· High magnetic field intensity, usually used in occasions with plenty of iron.
· The wholly sealed structure makes the separator water-proof, dust-proof and corrosion resisting.
· Made of rare earth NdFeB
· High gauss
· Energy saving
· Easy to install and convenient to use.
· High efficiency and stable performance.
· Good operational reliability and flexibility.



Application:


It is added platform, iron removing belt and etc, which is suspended over the belt conveyer. Through the conveyance of the iron unloading belt, the separator will auto discard the iron magnetic articles which are absorbed by the magnet into the iron collecting box. Thus removing the iron magnetic articles is gained.



Technical Data:



(Power-on sustaining rate TD-100%)



Mode

Usable belt

width (mm)

Standard erection

height(mm)

Mass(kg) Overall dimension(mm)

Unload

trigger

spec.

Driving motor

power(kw)

A B C D E
RCYD-6 650 200 880 2100 950 420 888 900 2.7 2.2
RCYD-8 800 250 1790 2050 1105 650 1038 1280 2.7 2.2
RCYD-10 1000 300 3060 2240 1310 785 1238 1370 3.3 2.2
RCYD-12 1200 350 4680 2440 1585 875 1512 1350 3.3 4
RCYD-14 1400 400 6600 2700 1765 970 1690 1550 4.1 4
RCYD-16 1600 450 8060 2900 1965 1050 1890 1750 4.2 4
RCYD-18 1800 500 10250 3150 2230 1150 2150 1960 6.8 5.5
RCYD-20 2000 500 12850 3380 2460 1280 2380 2170 16 5.5

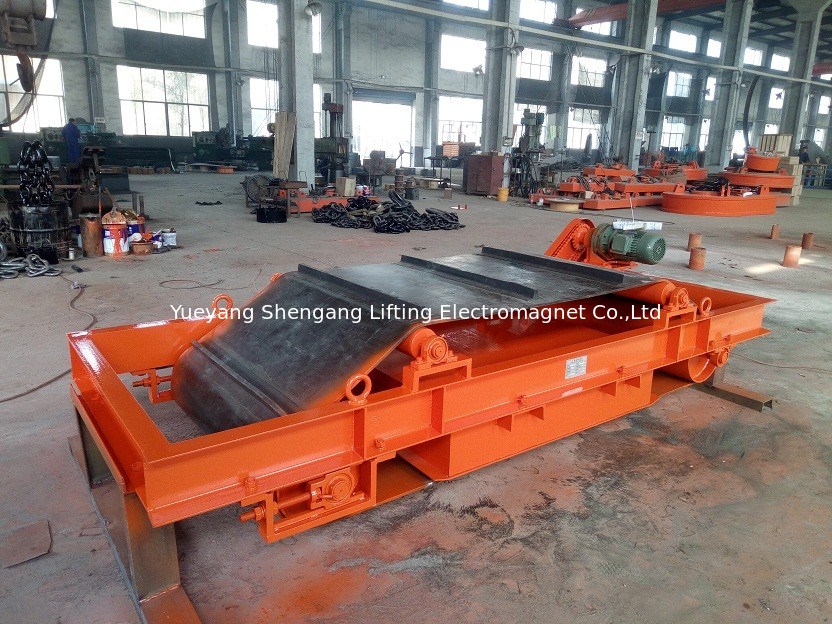

Overall dimension and product photos:



Iron Type Permanent Magnetic Separator Self Unloading Wooden Shavings Applied 0

Technical data:



Model Belt width
mm
height
h=mm
Bed depth
≤ mm
Gauss
≥ mT
motor
≤ KW
speed
≤ m/s
cycle weight
kg
Dimension mm
A B C D E
RCYD(C)-5 500 150 100 65 1.5 2.5 continously 750 1900 735 935 753 950
RCYD(C)-6 600/650 180 130 65 1.5 920 2050 780 1030 753 1100
RCYD(C)-6.5 650 200 150 70 1.5 1200 2165 780 1080 888 1200
RCYD(C)-8 800 250 200 70 2.2 1400 2350 786 1280 1088 1300
RCYD(C)-10 1000 300 250 70 3.0 2120 2660 920 1550 1335 1400
RCYD(C)-12 1200 350 300 70 4.0 3350 2860 1010 1720 1515 1550
RCYD(C)-14 1400 400 350 70 4.0 4450 3225 1050 1980 1755 1800
RCYD(C)-16 1600 450 400 70 5.5 6200 3350 1180 2160 1850 1950
RCYD(C)-18 1800 500 450 75 5.5 8100 3580 1210 2450 2130 2200
RCYD(C)-20 2000 550 500 75 7.5 9700 3800 1300 2700 2410 2400



Magnetic Separator Application:

Iron Type Permanent Magnetic Separator Self Unloading Wooden Shavings Applied 1

Customers Visit and Certification:



Iron Type Permanent Magnetic Separator Self Unloading Wooden Shavings Applied 2Iron Type Permanent Magnetic Separator Self Unloading Wooden Shavings Applied 3

Other magnetic Separators:


The separator is used to separate or eliminate magnetic iron materials from non-magneic material in metallurgical,mining,power,seaport,ceramic industry,etc.

Iron Type Permanent Magnetic Separator Self Unloading Wooden Shavings Applied 4

FAQ:



Q:Why customers choose us?
A:We are a professional magnetic separator products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.



Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.



Q:How long is your delivery time?
A:Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.



Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.



About Enquiry:


To help you get the best magnetic separator for your application, we should have the following information:



1.What is the material on conveyor and how about material thickness?
2.Please inform us width and speed of the conveyor?
3.Kindly tell us your power supply information:Voltage,AC or DC,Frequency?
4.Do you need permanent magnetic separator or electromagnetic separator?
5.Do you prefer FOB or CIF price? Kindly inform us destination port.



Standard Export Package:

Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.

Iron Type Permanent Magnetic Separator Self Unloading Wooden Shavings Applied 5
Factory Tour and Contacts:

Iron Type Permanent Magnetic Separator Self Unloading Wooden Shavings Applied 6

Quick Response:



We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.



Convenient Transportation:

All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
