Low Maintenance Electric Lifting Magnets High Temperature Simple Operation

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: MW5-150L/1-75
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Standard export package (Industrial Steel Handling Equipment for Lifting Scraps)
Supply Ability: 80 Piece/Pieces per Month Handling Equipment for Lifting Scraps
Product Name: Industrial Steel Handling Equipment For Lifting Scraps Shape: Circular
Current: 51.4A Rated Voltage: 220V
Power: 11.3KW Lifting Capacity For Steel Scrap: 1100/900kg
Lifting Capacity For Steel Ball: 11000kg Lifting Capacity For Cast Iron: 1980/1500kg
Weight: 3180kg Application: Suitable For Transporting Steel Scraps Under Normal Temperature
After-sales Service Provided: Engineers Available To Service Machinery Overseas Port: Shanghai/Shenzhen
High Light:

magnetic lifting handle

,

heavy duty lifting magnets

Industrial Steel Handling Equipment for Lifting Scraps



--MW5 Series Circular Magnet for Crane



Product Description



Main Features:

  • Adopt totally sealing structure with good property of moisture-proofing
  • Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy consumption
  • The energizing coils are processed by special technology to improve the electrical property and mechanical property. Heat-resistant grade of insulating material reaches grade C with long service life
  • Rated power-on sustaining rate of normal type electromagnet is increased from 50% to 80%,which improves the efficiency of the electromagnet
  • High temperature type electromagnet adopts unique method of heat protection, the temperature of the attached materials is increased from 600 °C to 700 °C, which expands application range of the electromagnet
  • Simple and convenient installation, operation and maintenance

Benifits:

  • STRONG ATTRACTION FORCE AND ENERGY SAVING
  • NORMAL & HIGH TEMPERATURE OPTIONAL
  • SIMPLE OPERATION AND MAINTENANCE

Application:



MW5 Series lifting magnet is suitable for transporting cast ingot, steel ball and various kinds of steel scraps.

Technical Data:



(Normal temperature type,Rated voltage DC-220v, Duty cycle TD-60%)



Model

Current

(A)

Power

(KW)

Lifting capability(KG)

Weight

(KG)

Dimention(mm)
Steel ball Steel ignot Crop end A B C D E
MW5-110L//1-75 26.7 6.1 6500 1000/800 450/400 1500 1100 1220 220 150 45
MW5-120L/1-75 33.6 7.4 7500 1300/1000 600/500 1850 1200 1270 220 150 45
MW5-130L/1-75 40.7 9 8500 1400/1100 700/600 2280 1300 1290 250 175 50
MW5-150L/1-75 51.4 11.3 11000 1900/1500 1100/900 3180 1500 1360 350 210 60
MW5-165L/1-75 55.6 12.2 12500 2300/1800 1300/1100 3840 1650 1600 370 230 75
MW5-180L/1-75 73.9 16.3 14500 2750/2100 1600/1350 4690 1800 1670 370 230 75
MW5-210L/1-75 98.5 21.7 21000 3500/2800 2200/1850 7500 2100 1900 400 250 80
MW5-240L/1-75 117.6 25.9 28000 4800/3800 2850/2250 9800 2400 2100 450 280 90




Overall Dimension Drawing:

Low Maintenance Electric Lifting Magnets High Temperature Simple Operation 0

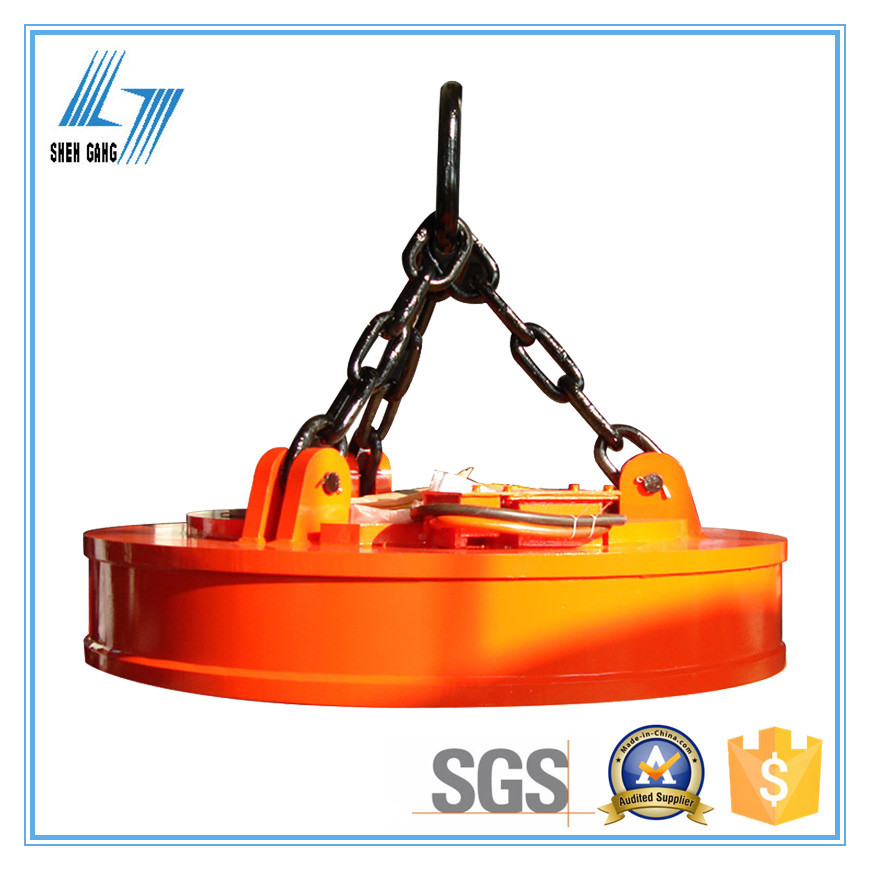

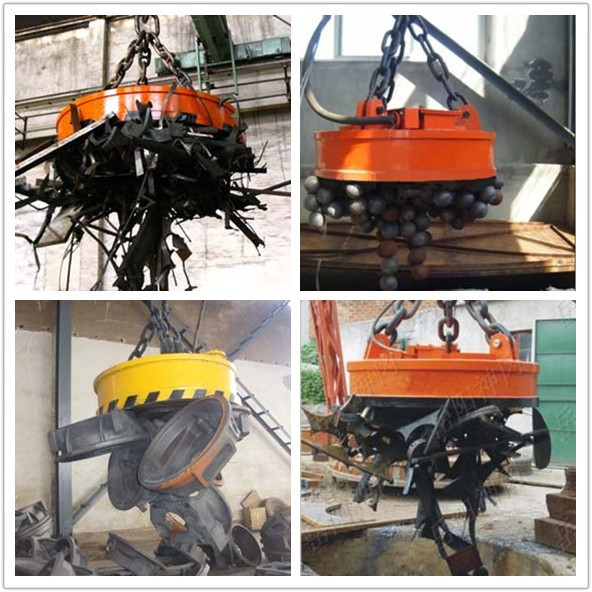

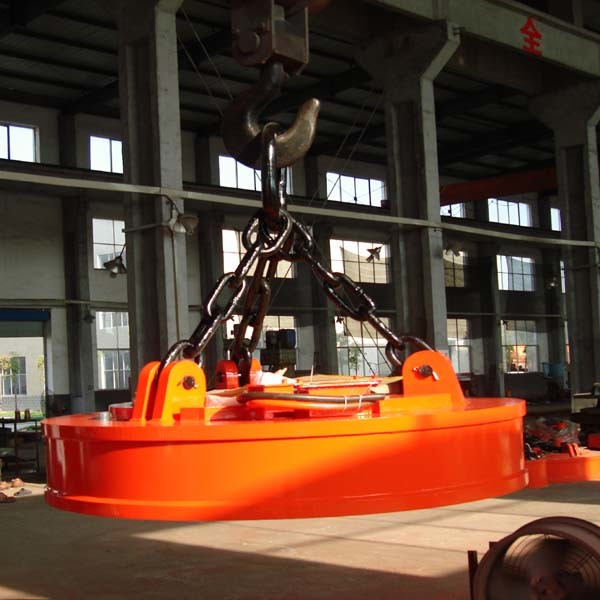

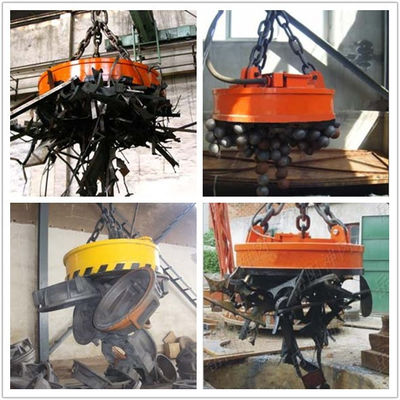

Physical Product Photo:



Low Maintenance Electric Lifting Magnets High Temperature Simple Operation 1   Low Maintenance Electric Lifting Magnets High Temperature Simple Operation 2

Low Maintenance Electric Lifting Magnets High Temperature Simple Operation 3  Low Maintenance Electric Lifting Magnets High Temperature Simple Operation 4



Low Maintenance Electric Lifting Magnets High Temperature Simple Operation 5

Low Maintenance Electric Lifting Magnets High Temperature Simple Operation 6

FAQ

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1. What kind of the materials you want to lift?  Steel scraps /steel billet/ stell ingot / steel plate/ steel bar /others?



2. What' s the lifting capacity you expect per time?


3. What kind of working site does the magnet work? Indoor or outdoor? how about the working temperature?



4. Kindly provide your power supply information (__V, DC/AC, ___Hz), and information for crane (single beam or double beam, single hook or double hook, how about the loading capacity).
