Magnetic Iron Separator Magnetic Separator Iron Ore

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: RCDY-10(MC23-11075L)
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Magnetic Iron Separator Magnetic Separator Iron Ore)
Supply Ability: 70 Piece/Pieces per Month magnetic separator iron ore
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Product Name: Magnetic Iron Separator Magnetic Separator Iron Ore Type: Electromagnet Type
Color: Red Voltage: DC-110
Power: 4.3kw Duty Cycle: TD-100%
Belt Width: 1000mm Standard Erection Height: 260mm
Application: To Remove Magnetic Tramp Iron From Rare Thick Material Bed And Corns Weight: 2050kg
Port: Shanghai/Shenzhen/Guangzhou
High Light:

small strong magnets

,

magnetic lifting tool

Magnetic Iron Separator Magnetic Separator Iron Ore



--RCDY Series



Product Description

 Brief Introduction:



RCDY Series is designed for long term operation shift provided with adjustable hook in its suspending system to adjust erection and installation height conveniently. It produces almost the same magnetic field along its width direction( in size B).



Application:



It is suitable for removing the ferromagnetic materials from thinner bed and lighter pile proportion of the materials as grain, wood shaving, biogases, glass scraps, shear raw materials, chemical material, etc.



Features:

  • Long term working
  • Suspending with hooks (height is adjustable)
  • Equal magnetic field in the direction of width
  • Clean by hand

Technical Data :



model

International

Standard

model

Standard

Erection T(mm)

Conveyer belt width

(mm)

Overall dimension

(mm)

Rated voltage

(v)

Cold state

Consumption

Power

(kw)

Weight

(kg)

Corollary control

 panel

(for single separator)

length

A

Width

B

height

H

MC23-5035L

RCDY-4

180

400

500

350

880

110

1.02

268

SSTM-1.5D-D

MC23-7045L

RCDY-6

200

600

700

450

1000

110

1.88

508

SSTM-3.1 D-D

MC23-9060L

RCDY-8

220

800

900

600

1100

110

3.1

1150

SSTM-3.1 D-D

MC23-11075L

RCDY-10

260

1000

1100

750

1300

220

4.3

2050

SSTM-6.2 D-D

MC23-130140L

RCDY-12

360

1200

1300

1400

1500

220

6.8

4200

SSTM-9.3 D-D

MC23-150110L

RCDY-14

380

1400

1500

1100

1700

220

7

4600

SSTM-9.3 D-D



 Overall Dimension Drawing:



Magnetic Iron Separator Magnetic Separator Iron Ore 0

Magnetic Iron Separator Magnetic Separator Iron Ore 1

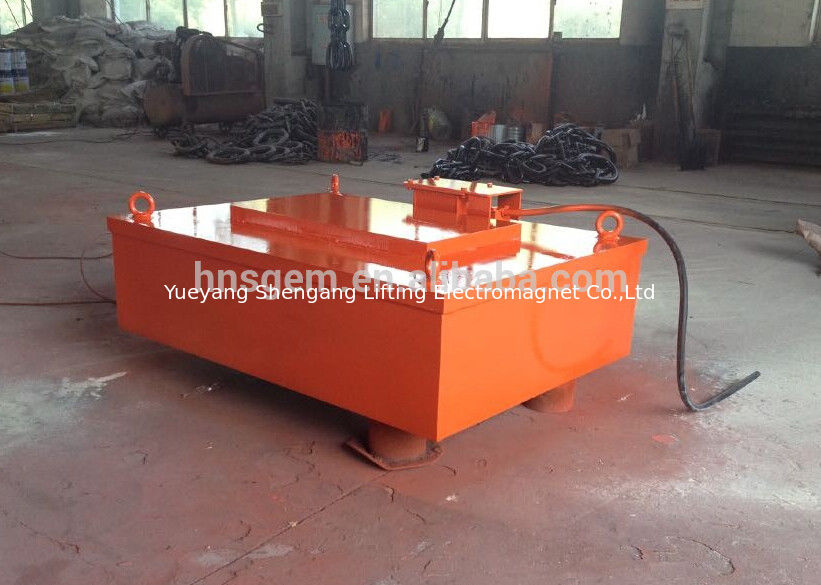

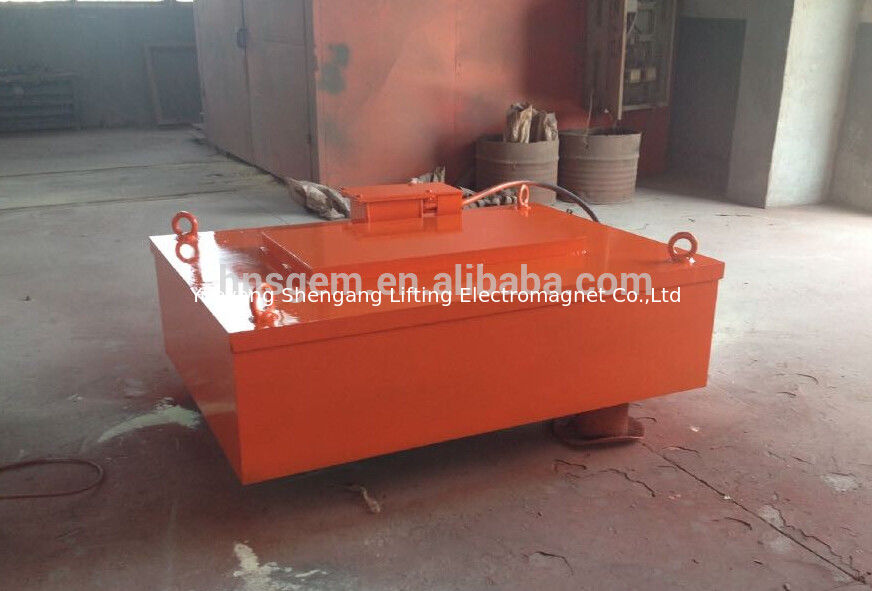

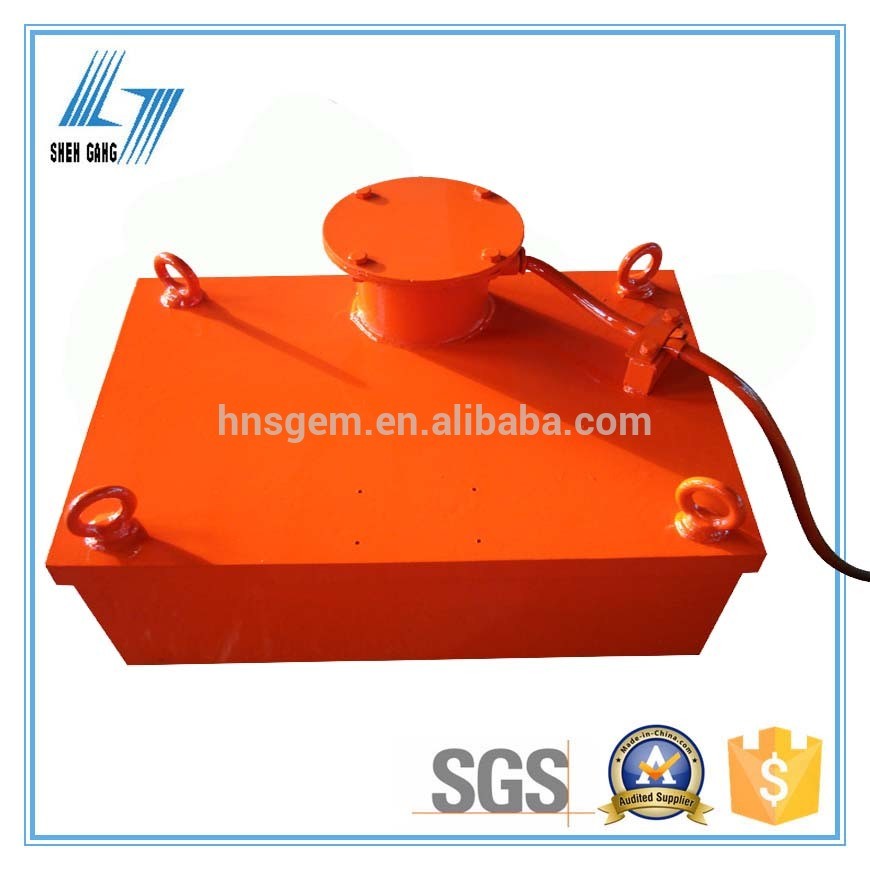

Product Photo:

Magnetic Iron Separator Magnetic Separator Iron Ore 2



Magnetic Iron Separator Magnetic Separator Iron Ore 3



Magnetic Iron Separator Magnetic Separator Iron Ore 4



FAQ

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.what kind of material need to process separation?



2.does it work with belt? if yes, how about the belt width? belt speed?



3.how about the handling capacity you require? and the separation material size?



4.do you need self-discharging type or manual discharge type?



5.rectangular shape or round shapepermanent magnet type or electromagnet type?
