Natural Cooling High Intensity Magnetic Separator Easy Operation Long Lifespan

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: based on ISO quality control system
Model Number: RCDB-12
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Scrap Circular Natural Cooling Magnetic Separator Manufacturer)
Delivery Time: 15 days after confirmed the order
Supply Ability: 70 Piece/Pieces per Month scrap circular natural cooling magnetic separator manufacturer
Condition: New Type: Magnetic Separator, Electromagnet Type
Voltage: Based On Customer Needs, DC-220 Power(W): 7.92KW
Dimension(L*W*H): 1200*1280mm Weight: 2241kg
Color: Red Duty Cycle: TD-100%
Belt Width: 1200mm Standard Erection Height: 350mm
Application: Magnetic Separator To Remove Magnetic Tramp Iron After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 12 Months Port: Shanghai/Shenzhen/Guangzhou
High Light:

cross belt magnetic separator


magnetic roll separator

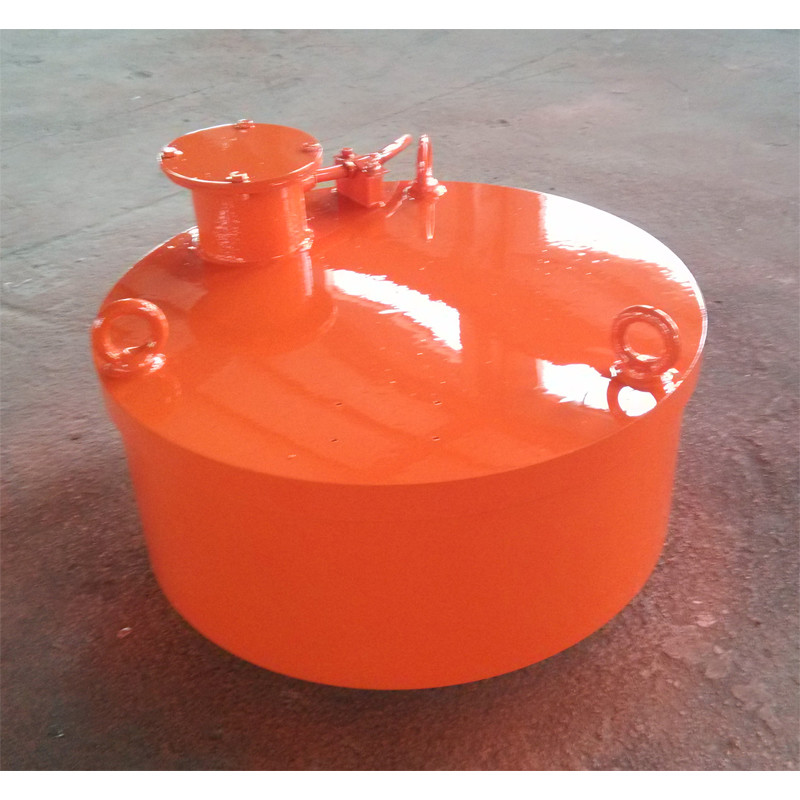

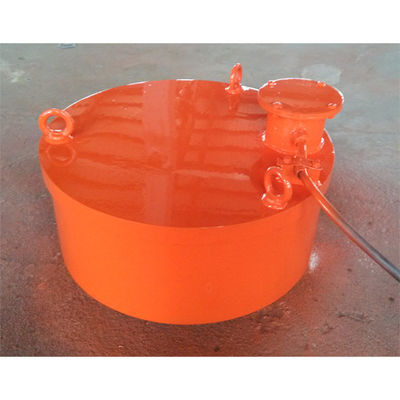

Scrap Circular Natural Cooling Magnetic Separator Manufacturer




•Remove magnetic tramp metals (0.1 - 25 kg ) from thicker materials bed and coal, for improving or purifying hard coke, ores, limestone, spall, corns and wooden shavings under bigger granularity.
•Clean by hand
•With three sets of adjustable hooks to adjust erection and installation height conveniently




Improving and purifying non-magnetic materials; Recycling iron

Technical Data and Overall Dimension:


Model T(mm) Erection height Belt width (mm) Rated Voltage (V) Cold Power (kw) Mass (kg) Overall dimension(mm)
(outer dimension)
(Hanging height)
RCDB-3(MC03-30L) 100 300 DC-48 0.18 85 300 600
RCDB-4(MC03-40L) 120 400 DC-60 0.7 126 400 700
RCDB-5(MC03-50L) 150 500 DC-110 1.13 236 500 750
RCDB-7(MC03-70L) 200 650 2.2 580 700 890
RCDB-8(MC03-80L) 250 800 3.08 1150 900 1160
RCDB-10(MC03-100L) 300 1000 DC-220 5.65 1460 1100 1250
RCDB-12(MC03-120L) 350 1200 7.92 2241 1300 1280
RCDB-14(MC03-140L) 400 1400 DC-290 9.7 3480 1500 1390
RCDB-16(MC03-160L) 450 1600 10.33 4506 1650 1550
RCDB-18(MC03-180L) 500 1800 11.1 4882 1800 1640

 Overall Dimension Drawing:

 Natural Cooling High Intensity Magnetic Separator Easy Operation Long Lifespan 0

Magnetic Separator

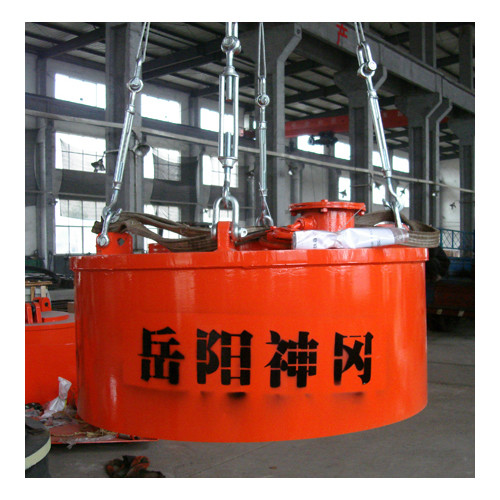

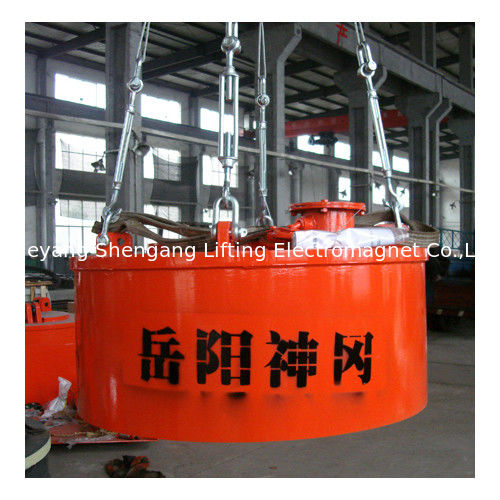

Complete equipment and Application:


Natural Cooling High Intensity Magnetic Separator Easy Operation Long Lifespan 1


In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.what kind of material need to process separation?


2.does it work with belt? if yes, how about the belt width? belt speed? about the handling capacity you require? and the separation material size? you need self-discharging type or manual discharge type?


5.rectangular shape or round shape? permanent magnet type or electromagnet type?


Company Information:

We are a professionl lifting electromagnet equipment manufacturer and exporter. Very sincerely looking for long-term win-win business here!


Major exports include lifting electromagnet, magnetic lifter, electromagnetic separator, cable reel, control cabinet and magnetic stirr, etc. with more than 15 years export experience.


Our factory also pass the SGS audit per year with certification issued.


We warmly welcome you to enquiry or visit us, and also appreciate any of your comments!


We also have our own brand as "SHENGANG"

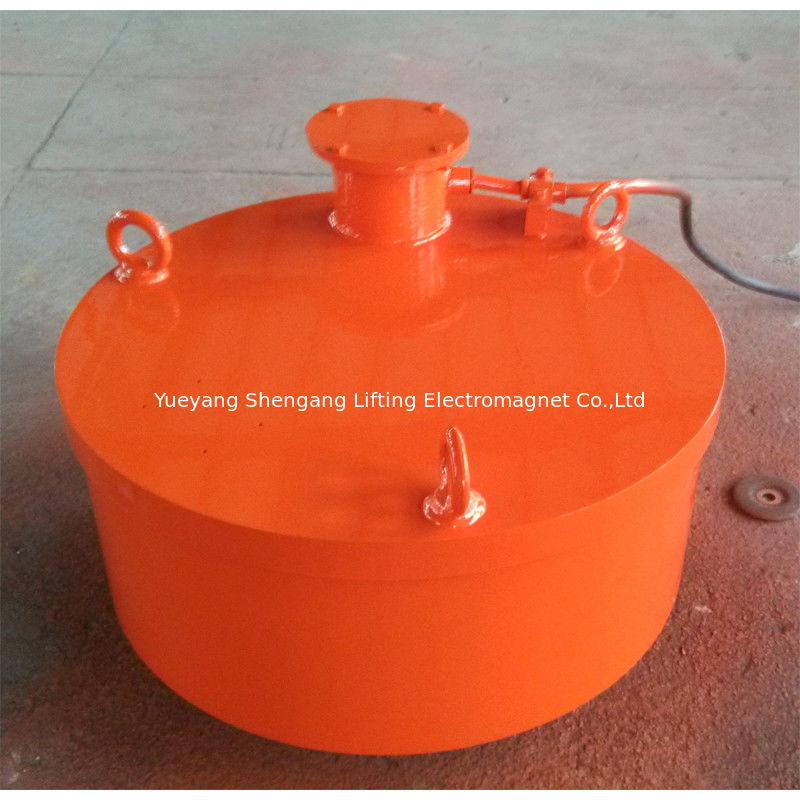

Natural Cooling High Intensity Magnetic Separator Easy Operation Long Lifespan 2


Other magnetic Separators:
The separator is used to separate or eliminate magnetic iron materials from non-magneic material in metallurgical,mining,power,seaport,ceramic industry,etc.

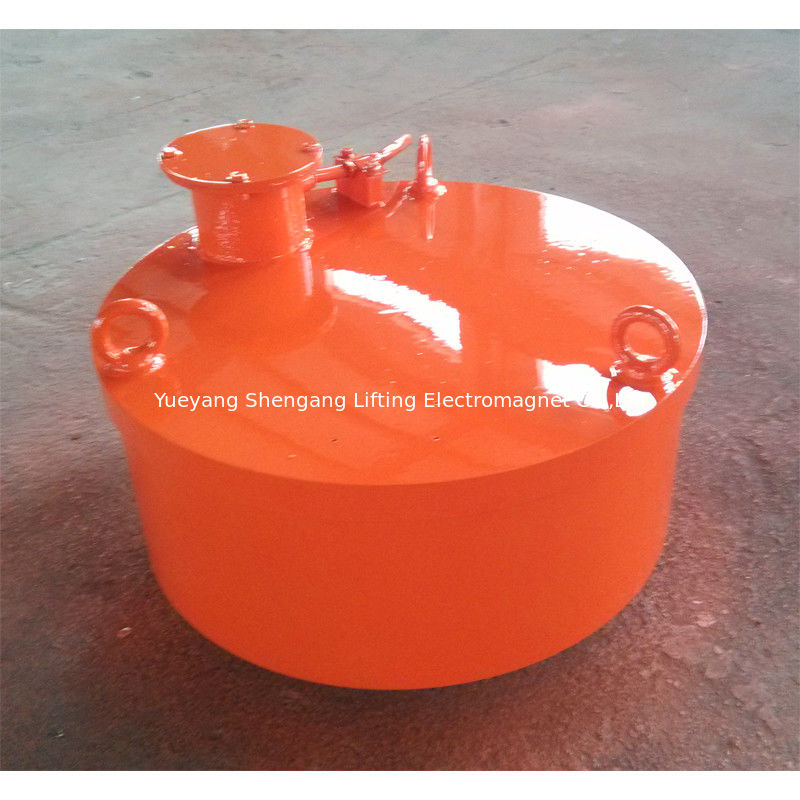

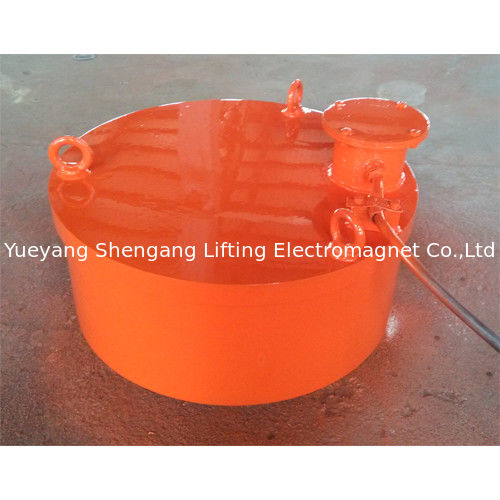

Natural Cooling High Intensity Magnetic Separator Easy Operation Long Lifespan 3

Packaging & Shipping:

(fixed iron frame with five-plywoodboard packing to keep Scrap Circular Magnetic Separator Manufacuturer with a safety and long-distance transportation and no need fumigation when clear custom )
