| Place of Origin: | Hunan, China (Mainland) |
|---|---|
| Brand Name: | SHENGANG |
| Certification: | ISO9001 |
| Model Number: | RCDD-8 Magnetic Separator |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | standard export package(1500 gauss magnetic separator) |
| Supply Ability: | 70 Piece/Pieces per Month |
| Condition: | New | Type: | Magnetic Separator, Electromagnet Type Magnetic Separator |
|---|---|---|---|
| Voltage: | DC-110, DC-110 | Power(W): | 2.6kw |
| Dimension(L*W*H): | 2540*1480*865mm | Weight: | 1470kg, 1470kg |
| Product Name: | Overhead Magnetic Separator For Conveyor Belt | Color: | Red |
| Belt Width: | 800mm | Power: | 2.6kw |
| Duty Cycle: | TD-100% | Standard Erection Height: | 250mm |
| Application: | Magnet Separator To Remove Magnetic Tramp Iron From Material Bed | Warranty: | 12 Months |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Port: | Shanghai/Shenzhen/Guangzhou |
| High Light: | permanent magnet alternator,small strong magnets |
||
Overhead Magnetic Separator for Conveyor Belt
Self Cleaning Conveyor Belt Magnetic Separator Series RCDD
Brief Introduction :
RCDD series is self-unloading type magnet separator in long-term system. It is added platform, iron removing belt and etc, which is suspended over the belt conveyer. Through the conveyance of the iron unloading belt, the separator will auto discard the iron magnetic articles which are absorbed by the magnet into the iron collecting box. Thus removing the iron magnetic articles is gained. Which is the one of the most common used types of separator.
Application:
Most being suitable for removing iron magnetic articles from thicker bed and granularity of the materials as ores, coal, hard coke, limestone, spells, etc.
Features:
Improving and purifying non-magnetic materials; Recycling Iron
Technical Data:
| InternationalStandardmodel | StandardErection T(mm) | width of Conveyer belt(mm) | Rated voltage(v) | ColdstateConsumptionPower(kw) | Weight(kg) | Overall dimension (mm) | DrivingMotorcapacity(kw) | Corollary control panel | |||||
| A | B | C | D | E | F | ||||||||
| RCDD-5 | 160 | 500 | 110 | 1.03 | 1074 | 2300 | 1330 | 1100 | 914 | 500 | 520 | 1.5 | SSTM-1.5D1-D |
| RCDD-6 | 170 | 500 | 110 | 1.4 | 1160 | 2400 | 1400 | 1150 | 1068 | 650 | 520 | 1.5 | |
| RCDD-6 | 220 | 650 | 110 | 1.8 | 1330 | 2400 | 1250 | 1250 | 1120 | 650 | 555 | 1.5 | SSTM-3.1D1-D |
| RCDD-8 | 250 | 800 | 110 | 2.6 | 1470 | 2750 | 1600 | 1360 | 1270 | 800 | 580 | 2.2 | |
| RCDD-8 | 250 | 800 | 110 | 2.9 | 2000 | 2750 | 1770 | 1465 | 1480 | 900 | 625 | 2.2 | |
| RCDD-10 | 260 | 1000 | 110 | 2.9 | 2000 | 2900 | 1770 | 1465 | 1480 | 900 | 625 | 2.2 | SSTM6.2D1-D |
| RCDD-12 | 310 | 1200 | 220 | 4.2 | 2700 | 3200 | 2000 | 1590 | 1680 | 1000 | 625 | 4 | |
Overall Dimension Drawing :

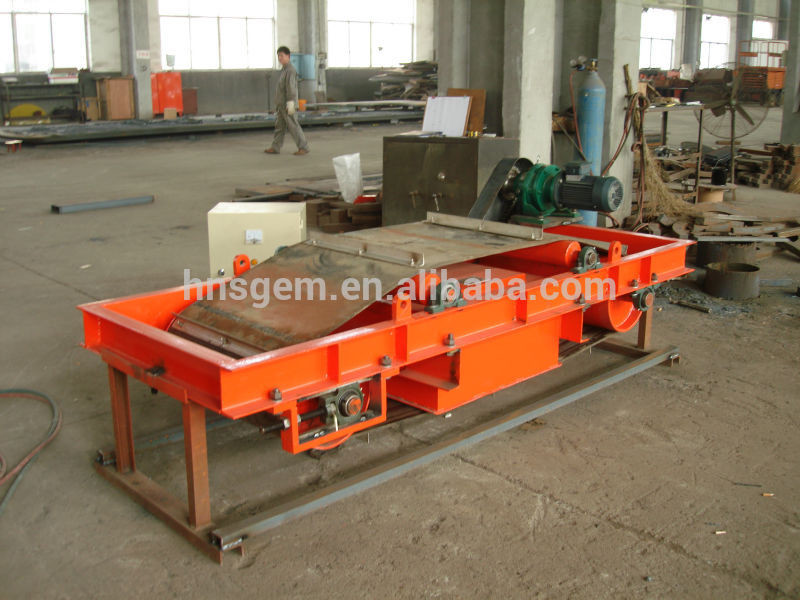

Physical Product Photo:
*Lifting Magnet Series:
--application for transporating steel scraps, steel plates, billets,etc.
*Cable Reel Series:
--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..
We are a professionl lifting electromagnet equipment manufacturer and exporter. Very sincerely looking for long-term win-win business here!
Major exports include lifting electromagnet, magnetic lifter, electromagnetic separator, cable reel, control cabinet and magnetic stirr, etc.
We warmly welcome you to enquiry us, and also appreciate any of your comments!
(fixed iron frame with five polywoodboard packing to keep safety long-distance transportation)
