Rust Proof Deep Reaching Large Industrial Magnets With Connecting Chains

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO9001:2008,CE,SGS,BV
Model Number: MW5-130L/1 Lifting Magnet
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Standard export package(Circular Electromagnet )
Delivery Time: 10 workdays after signed the contract
Payment Terms: L/C, T/T
Supply Ability: 80 Piece/Pieces per Month Circular Electromagnet
Condition: New Dimension(L*W*H): Accept Customised
Product Name: Industrial Circular Electromagnet With Chains Shape: Circular Electromagnet
Current: 54A Rated Voltage: 220V
Power: 12KW Lifting Capacity For Steel Scrap: 700/600kg
Lifting Capacity For Steel Ball: 2010kg Lifting Capacity For Cast Iron: 1400/1100kg
Weight: 2010kg Application: Suitable For Transporting Steel Scraps Under Normal Temperature
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
Port: Any Port In China
High Light:

permanent lifting magnets

,

electromagnetic lifting device

Industrial Circular Electromagnet with Chains



Product Description:


1. It adopts a special magnetic circuit design which has large air space and magnetism density. It is made of aluminum wire or copper wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance and heat-proof. It also has the characteristics of light weight, low power consumption,high lifting capacity and long serving life.

2. This series has fine insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils.The insulation grade can reach class special C.

3. It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.

4. With simple structure reliability, it is suitable for working with all kinds of lifting equipments



Application:
MW5 series lifting magnet used to transporting cast iron, steel ball, and various kinds of steel scraps on crane,forklift and excavator,etc.



Technical data:



Normal temperature type(Rated voltage DC-220V;Power-on sustaining rate TD-60%)
Model Electric current (A) Cold-state power (kw) lifting capacity (kg) cold/hot state Mass (kg) Overall dimension (mm)
steel ball cast iron steel scrap A B C D E
MW5-70L/1 15 3.3 2500 380/200 120/100 490 700 800 160 90 30
MW5-80L/1 18 3.96 3000 480/250 150/300 620 800 800 160 90 30
MW5-90L/1 26.6 5.9 4500 650/440 250/200 800 900 1090 200 125 40
MW5-110L/1 35 7.7 6500 1000/800 450/400 1350 1100 1140 220 150 45
MW5-120L/1 45.5 10 7500 1300/1000 600/500 1700 1200 1100 220 150 45
MW5-130L/1 54 12 8500 1400/1100 700/600 2010 1300 1240 250 175 50
MW5-150L/1 71.2 15.6 11000 1900/1500 1100/900 2830 1500 1250 350 210 60
MW5-165L/1 75 16.5 12500 2300/1800 1300/1100 3200 1650 1590 370 230 75
MW5-180L/1 102 22.5 14500 2750/2100 1600/1350 4230 1800 1490 370 230 75
MW5-210L/1 129 28.4 21000 3500/2800 2200/1850 7000 2100 1860 400 250 80
MW5-240L/1 154 33.9 28000 4800/3800 2850/2250 9000 2400 2020 450 280 90

Rust Proof Deep Reaching  Large Industrial Magnets With Connecting Chains 0

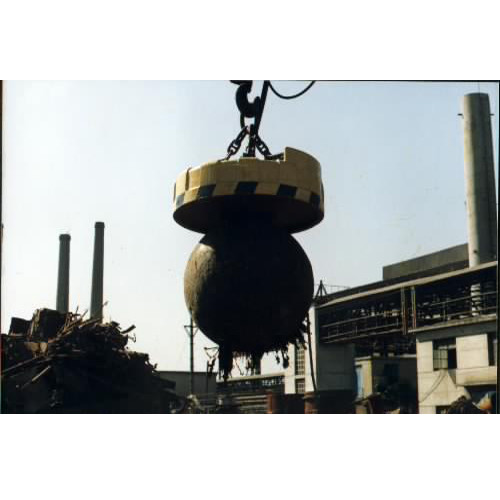

Rust Proof Deep Reaching  Large Industrial Magnets With Connecting Chains 1

Packaging & Shipping

Rust Proof Deep Reaching  Large Industrial Magnets With Connecting Chains 2

(fixed iron frame with five-plywoodboard packing to keep scrap Circular Electromagnet with a safety and long-distance transportation and no need fumigation when clear custom )



Our Best Advantages:



1)Credited by CE,SGS,BV and ISO9001 certificate,with 29490m² total size of factory.
2)Adopt totally sealing structure with good property of moisture-proofing.
3)Simple and convenient installation, operation and maintenance.
4)optimized design ,reasonable structure, light dead-weight, strong lifting capacity,easy and safe operation



FAQ:



Q:Why customers choose us?
A:We are a professional lifting electromagnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.



Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.



Q:How long is your delivery time?
A:Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.



Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.



Lifting Electromagnets Application:



Rust Proof Deep Reaching  Large Industrial Magnets With Connecting Chains 3



About Enquiry:


To help you get the best lifting electromagnet for your application, please kindly provide the following information:

1. What are the materials you want to lift?


Steel scraps,ingot,ball,steel billet, plate, rebas etc. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information:Voltage(V), DC/AC,Frequency(Hz), and information for overhead crane: single beam or double beam, single hook or double hook, how about its loading capacity?
5.Do you need only magnet or full set equipment with cable reel, control cabinet and cable connector?
6.Do you prefer FOB or CIF price, which is the destination port?

(More details, please feel free to contact us directly. )
