Safe Industrial Lifting Magnets Low Power Consumption Red 12KW

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO9001:2008
Model Number: MW5-130L/1 Lifting Magnet
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Standard export package (Safe Electric Lifting Magnet for Install Excavator)
Delivery Time: 10 workdays after signed the contract
Payment Terms: L/C, T/T
Supply Ability: 80 Piece/Pieces per Month Safe Electric Lifting Magnet for Install Excavator
Condition: New Dimension(L*W*H): 1300*1300*300MM
Product Name: Safe Electric Lifting Magnet For Install Excavator Shape: Circular
Color: Red Rated Voltage: 220V
Power: 12KW Current: 54A
Lifting Capacity: 700/600kg Weight: 2010kg
Diameter: 1300mm Application: Excavator Lifting Magnet To Lift Steel Scraps On Excavator
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12months
Port: Shanghai/Shenzhen Etc.
High Light:

electromagnetic lifting device

,

magnetic lifting equipment

Application:



Lifting Electromagnet is used for transporting Iron scraps,Ingots,Pig Iron,Machine Chip,Return scraps,Baling scraps, Various kinds of steel scraps.This magnet is special designed for excavator installation, replace the bucket with magnet, so the excavator could mechanical handle all kinds of steel material.



Features:



--75% or 60% Duty Cycle
--All welded heavy duty construction
--Class H insulation
--Powerful deep magnetic field design
--Aluminum or Copper coil optional



Technical data:



Model Electric current
(A)

Cold-state power
(kw)



lifting capacity (kg) cold/hot state

Mass

(kg)

Overall dimension (mm)
steel ball cast iron steel scrap A B C D E
MW5-70L/1 15 3.3 2500 380/200 120/100 490 700 800 160 90 30
MW5-80L/1 18 3.96 3000 480/250 150/300 620 800 800 160 90 30
MW5-90L/1 26.6 5.9 4500 650/440 250/200 800 900 1090 200 125 40
MW5-110L/1 35 7.7 6500 1000/800 450/400 1350 1100 1140 220 150 45
MW5-120L/1 45.5 10 7500 1300/1000 600/500 1700 1200 1100 220 150 45
MW5-130L/1 54 12 8500 1400/1100 700/600 2010 1300 1240 250 175 50
MW5-150L/1 71.2 15.6 11000 1900/1500 1100/900 2830 1500 1250 350 210 60
MW5-165L/1 75 16.5 12500 2300/1800 1300/1100 3200 1650 1590 370 230 75
MW5-180L/1 102 22.5 14500 2750/2100 1600/1350 4230 1800 1490 370 230 75
MW5-210L/1 129 28.4 21000 3500/2800 2200/1850 7000 2100 1860 400 250 80
MW5-240L/1 154 33.9 28000 4800/3800 2850/2250 9000 2400 2020 450 280 90

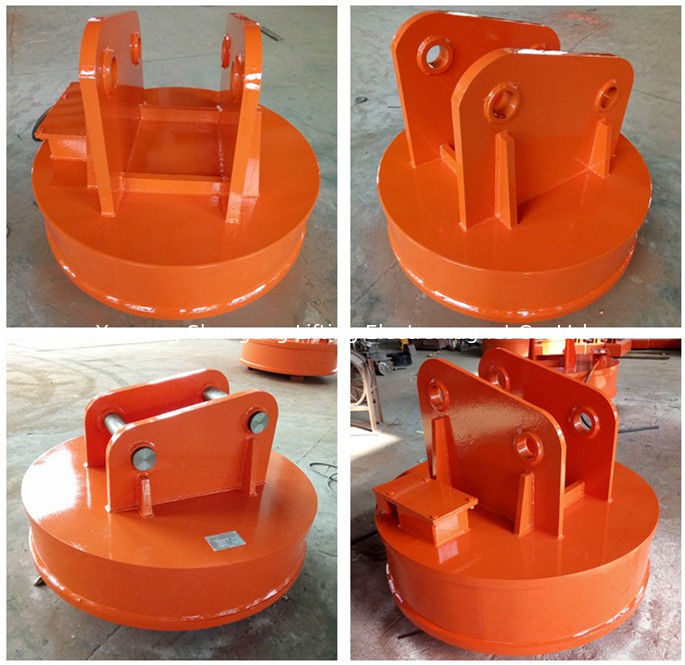

Overall dimension and product pictures:



Safe Industrial Lifting Magnets Low Power Consumption Red 12KW 0

Complete set of equipment:


· Lifting electromagnet;
· 15m length Cable;
· Rectifier control cabinet;
· Cable connector / Quick coupling;

· Generator (kindly confirm if you need, hydraulic type or diesel type)



Safe Industrial Lifting Magnets Low Power Consumption Red 12KW 1

Application:



Safe Industrial Lifting Magnets Low Power Consumption Red 12KW 2

Processing flow and Package:


The package is angle steel welded frame and fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.



Safe Industrial Lifting Magnets Low Power Consumption Red 12KW 3

Our Best Advantages:



1)Credited by CE,SGS,BV and ISO9001 certificate,with 29490m² total size of factory.
2)Adopt totally sealing structure with good property of moisture-proofing.
3)Simple and convenient installation, operation and maintenance.
4)optimized design ,reasonable structure, light dead-weight, strong lifting capacity,easy and safe operation



FAQ:



Q:Why customers choose us?
A:We are a professional lifting electromagnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.



Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.



Q:How long is your delivery time?
A:Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.



Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.



About Enquiry:


To help you get the best excavator lifting magnet for your application, we should have the following information:


1. What kind of the materials you want to lift? Is it steel scraps?
2. What' s the lifting capacity you expect per time?
3. Kindly provide your power supply information (__V, DC or AC? ___Hz)
4.For the excavator magnet,please tell us
--Do you prefer hook type or lifting chain type magnet?If prefer magnet with hook,please confirm hook size.

--Load capacity and Bucket capacity of your excavator?



Factory Tour:



Safe Industrial Lifting Magnets Low Power Consumption Red 12KW 4

Quick Response:



We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.



Convenient Transportation:

All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
