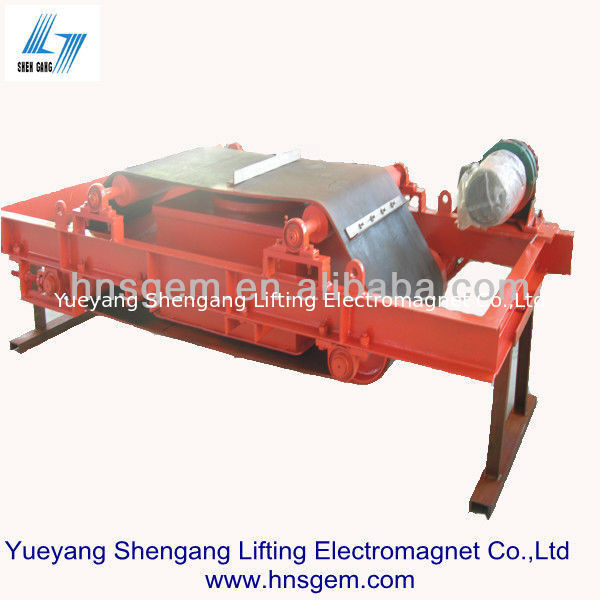

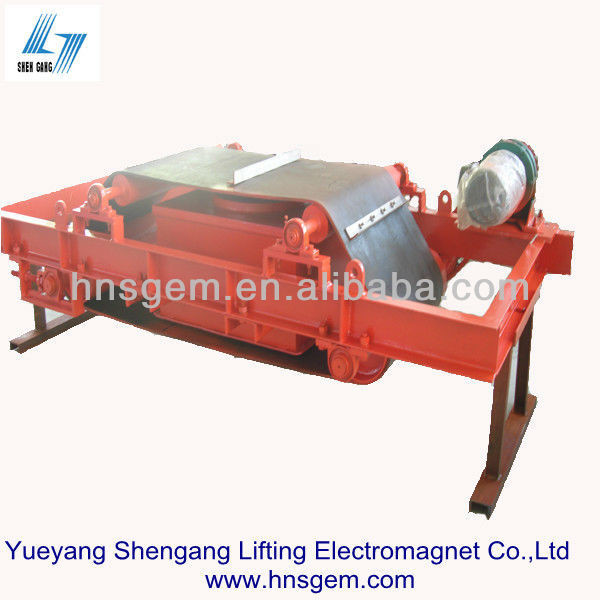

Self Cleaning Magnet Separator

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO9001
Model Number: RCDD-5
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: standard export package(Self Cleaning Magnet Separator)
Supply Ability: 70 Set/Sets per Month
Condition: New Type: Magnetic Separator, Electromagnet Type
Voltage: DC-110V, DC-110 Power(W): 1.03kw
Dimension(L*W*H): 2020*1040*775mm Weight: 1074kg, 1074kg
Product Name: Self Cleaning Magnet Separator Color: Red
Belt Width: 500mm Power: 1.03kw
Duty Cycle: TD-100% Standard Erection Height: 160mm
Application: Magnet Separator To Remove Magnetic Tramp Iron From Material Bed Warranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machinery Overseas Port: Shanghai/Shenzhen/Guangzhou
High Light:

permanent magnet alternator


magnetic lifting tool



Self Cleaning Magnetic Separator Series RCDD


Brief Introduction :


RCDD series is self-unloading type magnet separator in long-term system. It is added platform, iron removing belt and etc, which is suspended over the belt conveyer. Through the conveyance of the iron unloading belt, the separator will auto discard the iron magnetic articles which are absorbed by the magnet into the iron collecting box. Thus removing the iron magnetic articles is gained. Which is the one of the most common used types of separator.




Most being suitable for removing iron magnetic articles from thicker bed and granularity of the materials as ores, coal, hard coke, limestone, spells, etc.




Improving and purifying non-magnetic materials; Recycling Iron

  •  made of rare earth NdFeB
  •  high gauss
  •  energy saving

Technical Data:


InternationalStandardmodelStandardErection T(mm)width of Conveyer belt(mm)Rated voltage(v)ColdstateConsumptionPower(kw)Weight(kg)Overall dimension (mm)DrivingMotorcapacity(kw)Corollary control panel


Overall Dimension Drawing :


Self Cleaning Magnet Separator 0


Self Cleaning Magnet Separator 1Self Cleaning Magnet Separator 2



Physical Product Photo:


Self Cleaning Magnet Separator 3


Self Cleaning Magnet Separator 4


Standard Export Package:

(fixed iron frame with five-plywoodboard packing to keep safety and long-distance transportation)


Self Cleaning Magnet Separator 5    Self Cleaning Magnet Separator 6


Quick Response:


We highly appreciate your any enquiry by email, fax or instant message.

We will reply your email or fax within 24 hours.

Please fell free to call us at any time if there is any questions.


Convenient Transportation:


All available shipping ways could be applied, by courier, air or sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you till the goods arrive.


Self Cleaning Magnet Separator 7
