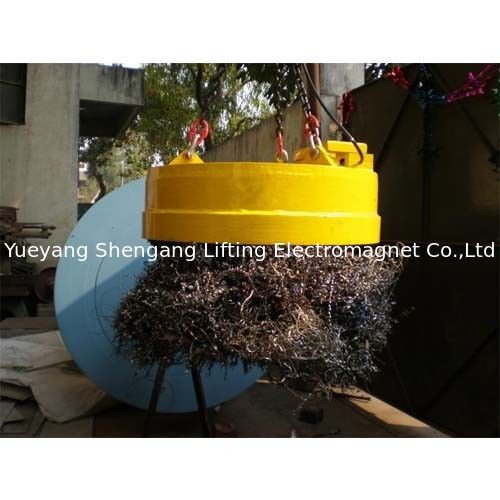

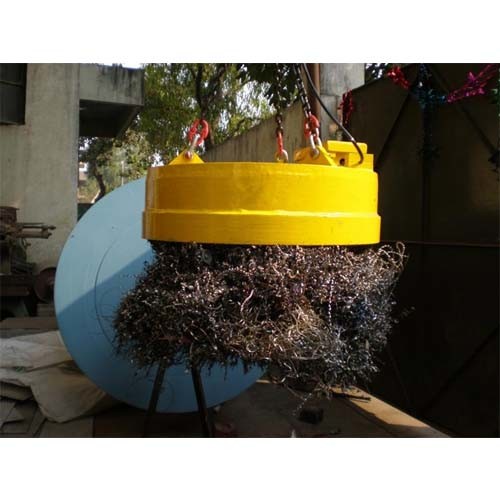

Simple Convenient Scrap Lifting Magnet Unique Heat Protection Low Maintenance

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: Magnet Machine--SHENGANG
Certification: SGS,BV,ISO,CE
Model Number: MW5-110L/1 Magnet Machine
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Standard export package(Lifting Magnet for Lifting Scrap)
Delivery Time: 10 workdays after signed the contract
Supply Ability: 80 Piece/Pieces per Month Magnet Machine
Type: Electromagnetic Type Composite: Aluminum Or Copper Coil
Shape: Circular, Circular Magnet Machine Application: Industrial Magnet, Suitable For Transporting Steel Scraps Under Normal Temperature
Product Name: Electro Lifting Magnet Machine For Iron Material Current: 35A
Rated Voltage: 220V Power: 7.7KW
Lifting Capacity For Steel Scrap: 450/400kg Lifting Capacity For Steel Ball: 6500kg
Lifting Capacity For Cast Iron: 1000/800kg Weight: 1350kg
Port: Shanghai/Shenzhen
High Light:

circular lifting magnet

,

electromagnetic lifting magnet

Main Features:

  • Adopt totally sealing structure with good property of moisture-proofing
  • Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy consumption
  • The energizing coils are processed by special technology to improve the electrical property and mechanical property. Heat-resistant grade of insulating material reaches grade C with long service life
  • Rated power-on sustaining rate of normal type electromagnet is increased from 50% to 60%,which improves the efficiency of the electromagnet
  • High temperature type electromagnet adopts unique method of heat protection, the temperature of the attached materials is increased from 600 °C to 700 °C, which expands application range of the electromagnet
  • Simple and convenient installation, operation and maintenance

Benifits:

  • STRONG ATTRACTION FORCE AND ENERGY SAVING
  • NORMAL & HIGH TEMPERATURE OPTIONAL
  • SIMPLE OPERATION AND MAINTENANCE

Main Technical Data:

Voltage: DC-220V
Normal Temeprature:Below 100°c
Duty Cycle: TD-60%

Model

Current(A)

Power(KW)

Lifting capability(KG)

Weight(KG)

Dimention(mm)

Steel ball

Steel ignot

Crop end

A

B

C

D

E

MW5-70L/1

15

3.3

2500

380/200

120/100

490

700

800

160

90

30

MW5-80L/1

18

3.96

3000

480/250

150/130

620

800

800

160

90

30

MW5-90L/1

26.6

5.9

4500

650/440

250/200

800

900

1090

200

125

40

MW5-110L/1

35

7.7

6500

1000/800

450/400

1350

1100

1140

220

150

45

MW5-120L/1

45.5

10

7500

1300/1000

600/500

1700

1200

1180

220

150

45

MW5-130L/1

54

12

8500

1400/1100

700/600

2010

1300

1240

250

175

50

MW5-150L/1

71.2

15.6

11000

1900/1500

1100/900

2830

1500

1250

350

210

60

MW5-165L/1

75

16.5

12500

2300/1800

1300/1100

3200

1650

1590

370

230

75

MW5-180L/1

102

22.5

14500

2750/2100

1600/1350

4230

1800

1490

370

230

75

MW5-210L/1

129

28.4

21000

3500/2800

2200/1850

7000

2100

1860

400

250

80

MW5-240L/1

154

33.9

28000

4800/3800

2850/2250

9000

2400

2020

450

280

90

Overall Dimension Drawing:
Simple Convenient Scrap Lifting Magnet Unique Heat Protection Low Maintenance 0
Complete set of Equipment:
· Electro lifting magnet;
· Spring type cable reel with Cable;
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type);
· Cable connector / Quick coupling.


Simple Convenient Scrap Lifting Magnet Unique Heat Protection Low Maintenance 1
Application:
Simple Convenient Scrap Lifting Magnet Unique Heat Protection Low Maintenance 2
Production:
Simple Convenient Scrap Lifting Magnet Unique Heat Protection Low Maintenance 3

Packaging & Shipping


Simple Convenient Scrap Lifting Magnet Unique Heat Protection Low Maintenance 4
(fixed iron frame with five-plywoodboard packing to keep 300kg Lifting Electromagnet & Electromagnetic Lifting Device with a safety and long-distance transportation and no need fumigation when clear custom )

FAQ:


Q: Why customers choose us?
A: We are a professional lifting electromagnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.
Q: Can I have product with our design and nameplate?
A: Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.
Q: How long is your delivery time?
A: Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.
Q: What is your warranty and after service?
A: Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.


About Enquiry:
To help you get the best lifting electromagnet for your application, please kindly provide the following information:
1. What are the materials you want to lift?
Steel scraps,ingot,ball,steel billet, plate, rebas etc. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information:Voltage(V), DC/AC,Frequency(Hz), and information for overhead crane: single beam or double beam, single hook or double hook, how about its loading capacity?
5. Do you need only magnet or full set equipment with cable reel, control cabinet and cable connector?
6. Do you prefer FOB or CIF price, which is the destination port?
(More details, please feel free to contact us directly. )

Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.

Convenient Transportation:
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
