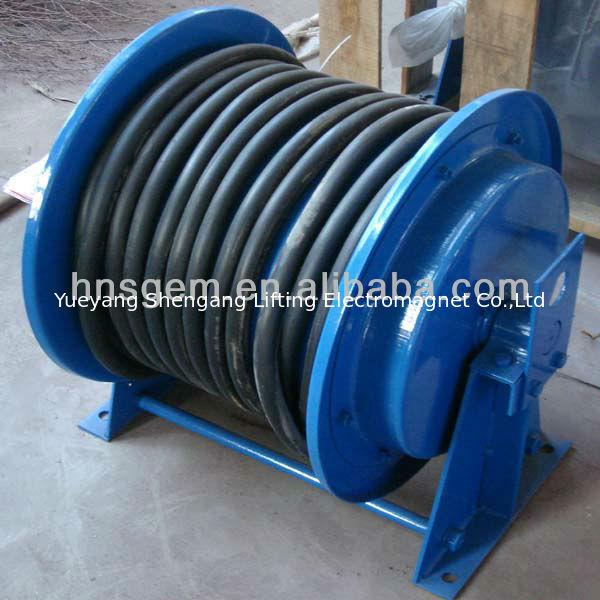

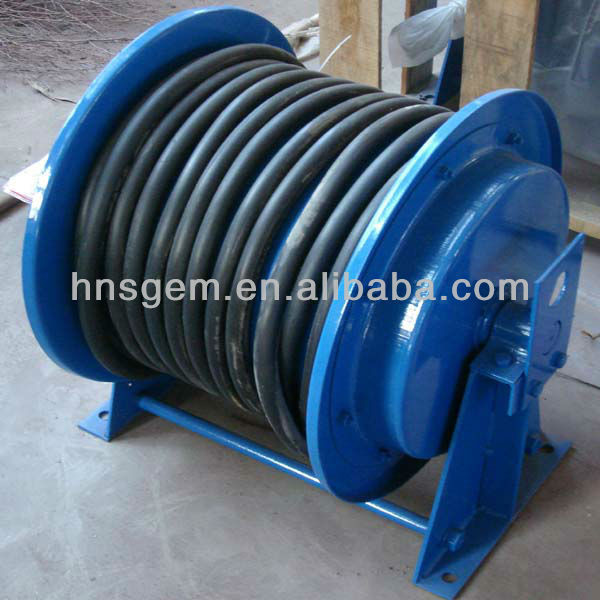

Spring Loaded Cable Reel

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: JTA170-20-2
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Spring Loaded Cable Reel)
Supply Ability: 100 Piece/Pieces per Month
Type: Cable Reel, Slip Ring Built-in Installed Application: Industrial Equipment, Elastic Power Supply Cable Reel
Male End Type: Bs Female End Type: IEC
Product Name: Spring Loaded Cable Reel Series: JTA Type
Current: 132A Color: Blue
Cable Length: 20m Weight: 150kg
Installation Patterns: Vertical Coiling Phase Number: 2
Port: Shanghai/Shenzhen/Guangzhou
High Light:

spring loaded retractable cable reel


retractable power reel

Spring Loaded Cable Reel




Brief Introduction:


We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this universal cable reel has two types available as: Spring Type & Electrical Powered Type.



  •  Using spiral springs as power without electric energy consumption to keep reliable in operation
  • Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
  • Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
  • Power supply easily, safety and reliability in operation, correct strs on the cables

Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself.  There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service, over hanging type which can coil up much longer cables.



  • Easy installation and start of operation
  • Corrosion and water proof
  • Silver brush would prevent and reduce the noise by conductors friction

Technical Data:




Cable ModelEnabled Current 15m Seriesitem20m Seriesitem25m Seriesitem
Core No.*Cross SectionContinuously1 min on/off


 Overall Dimension Drawing:

 Spring Loaded Cable Reel 0

About Enquiry:


In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :


1.Do you have special requirement about the power typesspring type / motor powered/hysteresis?

2.What is the cable specification (core number*cross section , coil length of cable, electric current)?

3. What kind of mobile equipment will the cable reel be applied with? (lifting magnet, crane or others)

4. What kind of installation patterns you prefer? vertical coiling or horizontal coiling?


Physical Product Photo:


Spring Loaded Cable Reel 1     Spring Loaded Cable Reel 2


Spring Loaded Cable Reel 3    Spring Loaded Cable Reel 4

Spring Loaded Cable Reel 5


Spring Loaded Cable Reel 6


Spring Loaded Cable Reel 7


Standard Export Package:

(fixed iron frame with five-plywoodboard packing to keep safety and long-distance transportation)


Spring Loaded Cable Reel 8  Spring Loaded Cable Reel 9


Quick Response:


We highly appreciate your any enquiry by email, fax or instant message.

We will reply your email or fax within 24 hours.

Please fell free to call us at any time if there is any questions.


Convenient Transportation:


All available shipping ways could be applied, by courier, air or sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you till the goods arrive.


Spring Loaded Cable Reel 10
