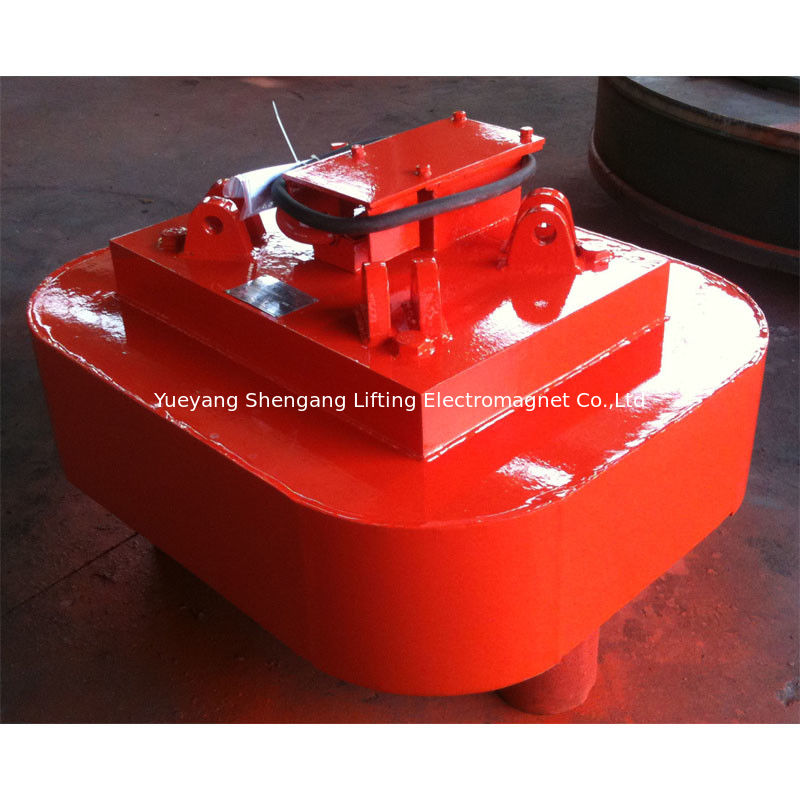

Transporting Electric Lifting Magnets For Lifting Bar SGS Approved

Basic Information
Place of Origin: CHINA
Brand Name: SHENGANG MAGNET
Certification: CE,ISO,SGS,BV
Model Number: MW22-120110L/1
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 15 workdays after signed the contract
Payment Terms: T/T, Western Union, L/C, D/P, D/A
Supply Ability: 50pcs per month
Color: Red Shape: Rectangular
Rated Voltage: DC220V Duty Cycle: 60%
Electric Current: 43A Cold-State Power: 9.46KW
Weight: 1800KG Dimension(L*W): 1200*1100mm
For Handling Billet Size: ø300mm,12m Length Coil Type: Aluminum Or Copper
Application: Lift Bundled Steel Bar And Square Billet Complete Equipment: Magnet,Cable Reel,Control Cabinet Etc.
Temperature Type: Normal Or High Temperature
High Light:

material handling equipment

,

heavy duty lifting magnets

Electro Lifting Magnet for Lifting Bar on Eot Crane



Application:

It is suitable for transporting bunched steel bars with various kinds of bundled width,length and diameter.

Features:

The surface of magnetic pole is even, so the surface of steel bars will not be damaged.
Flexible operation. It can lift one to several bunches at a time.

Benifits:

· Strong attraction force and energy saving
· Normal and high temperature optional
· Simple operation and main maintenance
· Aluminum or Copper wire Optional



Technical data:

Transporting Electric Lifting Magnets For Lifting Bar SGS Approved 0

Overall dimension and product pictures:

Transporting Electric Lifting Magnets For Lifting Bar SGS Approved 1

Complete set of equipment:


· Lifting Magnet;
· Spring type cable reel with Cable;
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type);
· Cable connector.

Transporting Electric Lifting Magnets For Lifting Bar SGS Approved 2

Customers Visit and Certification:



Transporting Electric Lifting Magnets For Lifting Bar SGS Approved 3Transporting Electric Lifting Magnets For Lifting Bar SGS Approved 4

Our Best Advantages:



1) Credited by CE,SGS,BV and ISO9001 certificate,with 29490m² total size of factory.
2) Adopt totally sealing structure with good property of moisture-proofing.
3) Simple and convenient installation, operation and maintenance.
4) optimized design ,reasonable structure, light dead-weight, strong lifting capacity,easy and safe operation



FAQ:



Q: Why customers choose us?
A: We are a professional lifting electromagnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.



Q: Can I have product with our design and nameplate?
A: Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.



Q: How long is your delivery time?
A: Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.



Q: What is your warranty and after service?
A: Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.



Lifting Electromagnets Application:



Transporting Electric Lifting Magnets For Lifting Bar SGS Approved 5

About Enquiry:
To help you get the best lifting magnet for your application, we should have the following information:



--For steel billet:
1.Please inform us length, width,thickness of each billet?
2.How many billets need to be transported for one time? And the weight of these billets?
3.How about the temperature of the billets?

--For the crane:
Double beam or single beam,single hook or double hook,loading capacity of the crane?

--Power supply information: __V, DC or AC?__Hz

--For control cabinet:
Do you prefer normal type rectification cabinet or cabinet with battery back-up?



Factory Tour and Contacts:



Transporting Electric Lifting Magnets For Lifting Bar SGS Approved 6

Quick Response:



We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.



Convenient Transportation:

All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
