Coal Separation Equipment

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: Quality under ISO control system
Model Number: CTB-69
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Coal Separation Equipment)
Supply Ability: 70 Set/Sets per Month Coal Separation Equipment
Condition: New Type: Magnetic Separator
Production Capacity: 8-15t/h Voltage: DC-220V
Power(W): 1.1KW Dimension(L*W*H): 600*900MM
Weight: 600KG, 600kg Product Name: Coal Separation Equipment
Color: Red Power: 1.1KW
Drum Speed: 45r/min Capacity: 8-15 T/h & 24m3/h
Drum Size: 600(dia.)*900mm(length) Magnetic Intensity: 1700GS
Particle Size: 0-0.5mm Application: To Seperation For Iron Ore,fly Ash Of Iron Power Plant Etc.
Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas
Port: Shanghai/Shenzhen/Guangzhou
High Light:

magnetic separation equipment

,

magnetic coolant separator

Coal Separation Equipment



 Magnetic Separator for Mining CTS/CTN/CTB  Series



Feature:

  • Optimized design
  • Scientific magnetic circuit, made of strong magnetic coercive force
  • High-remanence permanent magnet
  • Safe and reliable.

          Different Gauss can be expected at the drum surface.



Application:



Suitable for iron ore, fly ash of iron power plant separator with large capacity, high recovery rate, especially for iron ore concentrate select.

  • The downstream tank (Series of CTS) is applicable to rougher flotation and concentration of ore with size: 6-0 mm.
  • The half upstream tank (Series of CTS) is applicable to rougher flotation and concentration of ore with size: o~0.5mm, the granularity of granule is 0.15-0.8mm.

Working principle of Iron Ore Equipment:



When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.



 Technical Data:

Model

CTB-69

CTN-69

CTS-69

CTB-1030

CTN-1030

CTS-1030

CTB-1230

CTN-

1230

CTS-1230

CTB-1530

CTN-1530

CTS-1530

Size

Φ600*900

Φ1050Χ3000

Φ1200Χ3000

Φ1500Χ3000

Drum

Diameter mm

600

1050

1200

1500

L mm

900

3000

3000

3000

Rotating Speed r/min

45

22

19

16

Magnetic Intensity

Average mT

145

165-400

180-400

180-400

Max

170

190-500

200-550

200-550

Particle Size mm

1-0

0-6-0

6-0

1-0

0-6-0

6-0

1-0

0-6-0

6-0

1-0

0-6-0

6-0

Capacity

t/h

8-15

65-125

80-150

90-170

m³/h

24

200

240

280

 Power KW

1.1

7.5

7.5

11



Operation Photo:



Coal Separation Equipment 0

Product Photo:

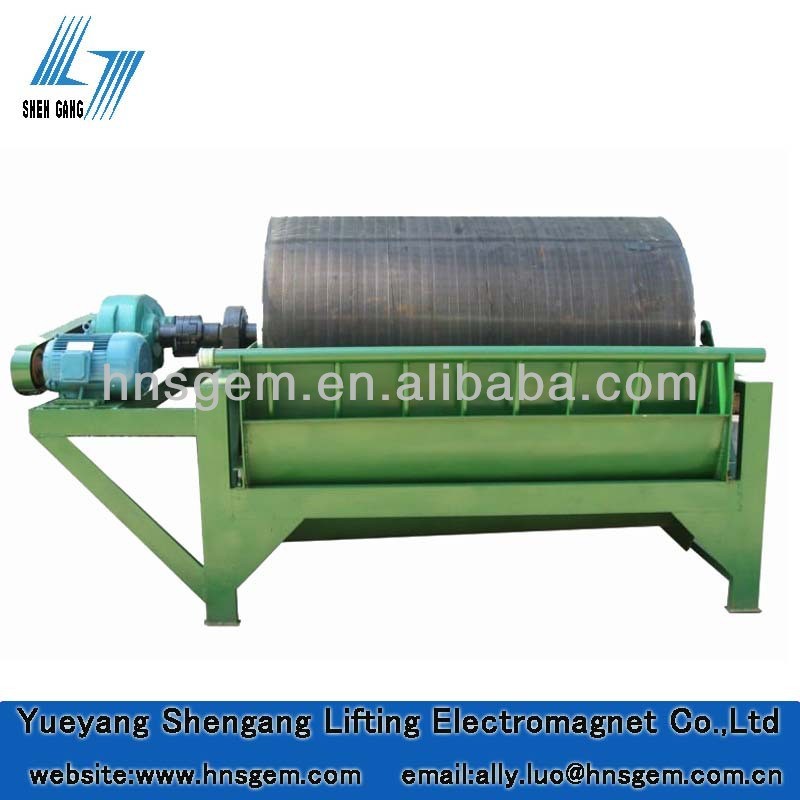

Coal Separation Equipment 1

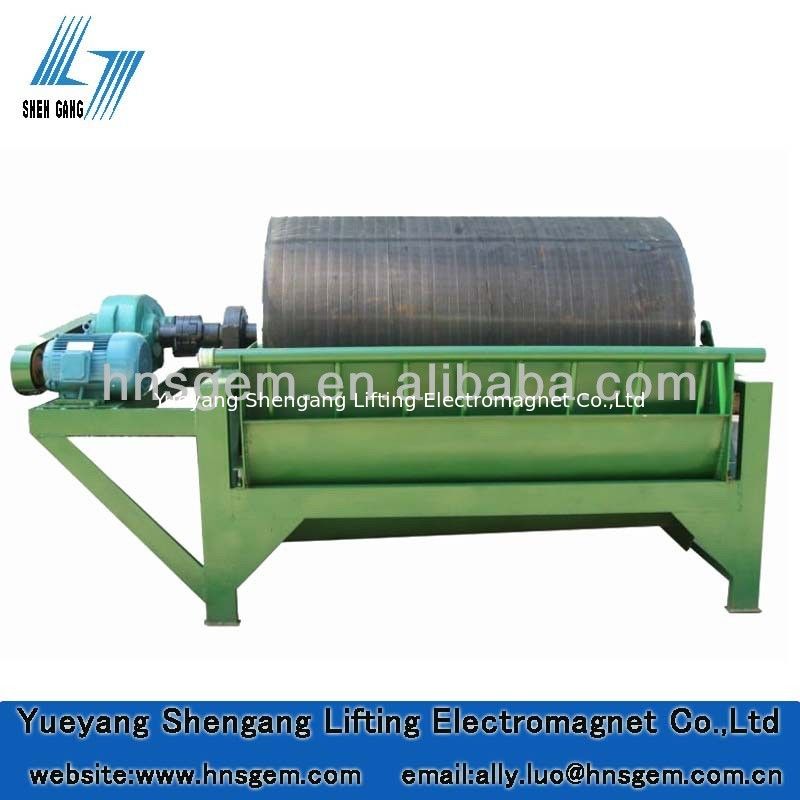

Coal Separation Equipment 2





*Lifting Magnet Series:



--application for transporating steel scraps, steel plates, billets,etc.



Coal Separation Equipment 3



*Cable Reel Series:



--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..



Coal Separation Equipment 5







Coal Separation Equipment 7Coal Separation Equipment 8



Standard Export Package:



(fixed iron frame with five-plywoodboard packing to keep safety and long-distance transportation)



Coal Separation Equipment 9   Coal Separation Equipment 10







Coal Separation Equipment 11







Quick Response:







We highly appreciate your any enquiry by email, fax or instant message.



We will reply your email or fax within 24 hours.



Please fell free to call us at any time if there is any questions.







Convenient Transportation:







All available shipping ways could be applied, by courier, air or sea.



Appointed shipping company or our own forwarders all could be used in shipment.



Full-way tracking the cargos for you till the goods arrive.
