|Place of Origin:||Hunan, China (Mainland)|
|Minimum Order Quantity:||1 Piece/Pieces|
|Packaging Details:||standard export package( Roller Separator Magnetic Drums)|
|Delivery Time:||30 workdays after signed the contract|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||70 Piece/Pieces per Month|
|Capacity:||140m3/h||Magnetic Field Intensity:||1900GS|
|Motor Power:||5.5KW||Product Material:||Magnetic Steel With Rare Earth|
|Drums Number:||1||Warranty:||12 Months|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Port:||Shanghai/Shenzhen/Guangzhou|
wet drum magnetic separator,
magnetic coolant separator

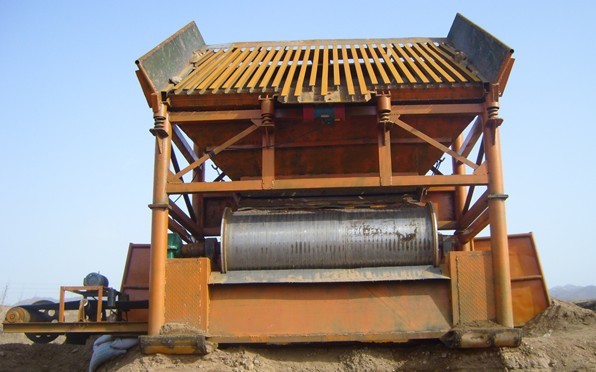

Single Roller Magnetic Separator for Magnetic Iron Ore (CTN-1021)
Suitable for iron ore, fly ash of iron power plant separator with large capacity, high recovery rate, especially for iron ore concentrate select.
--Direct flow tank (CTS) is suitable for rougher flotation and concentration of ore particles 0.1-0.6 mm.
--Counter-current tank(CTN) is suitable for roughing and scavenging of ore particles 0.1-0.6 mm;as well as dense medium recycle in coal preparation industry.
--Half counter-current (CTB) is suitable for rougher flotation and concentration of ore particles 0.5-1 mm.
When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation.In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.
* Optimized design
* Scientific magnetic circuit, made of strong magnetic coercive force
* High-remanence permanent magnet
* Safe and reliable. Different Gauss can be expected at the drum surface.
Main Technical Data:
|Model||Roller size||Roller surface magnetic induction indensity (mT)||Processing capacity||Motor power||Roller rotating speed||Total weight|
|(diameter ×length) (mm)||Pole geometric center value||Sweeping and separarting area average value||Highest magnetic induction indensity||t/h||m3/h||kw||r/min||kg|
Other magnetic Separators:
The separator is used to separate or eliminate magnetic iron materials from non-magneic material in metallurgical,mining,power,seaport,ceramic industry,etc.
Q:Why customers choose us?
A:We are a professional magnetic separator products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.
Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.
Q:How long is your delivery time?
A:Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.
Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.
To help you get the best magnetic separator for your application, we should have the following information:
Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
