|Place of Origin:||Jiangsu, China (Mainland)|
|Certification:||based on ISO quality control system|
|Minimum Order Quantity:||1 Piece/Pieces|
|Packaging Details:||standard export package(Dry Manganese Ore Magnetic Separator)|
|Supply Ability:||70 Piece/Pieces per Month Dry Manganese Ore Magnetic Separator|
|Product Name:||Dry Manganese Ore Magnetic Separator||Color:||Red|
|Capacity:||90-170 T/h & 270m3/h||Drum Size:||1500(dia.)*3000mm(length)|
|Magnetic Intensity:||3000GS||Particle Size:||0-6mm|
|Application:||To Seperation For Iron Ore,fly Ash Of Iron Power Plant Etc.||Warranty:||1 Year After Shipping|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Port:||Shanghai/Shenzhen/Guangzhou|
wet drum magnetic separator,
magnetic coolant separator

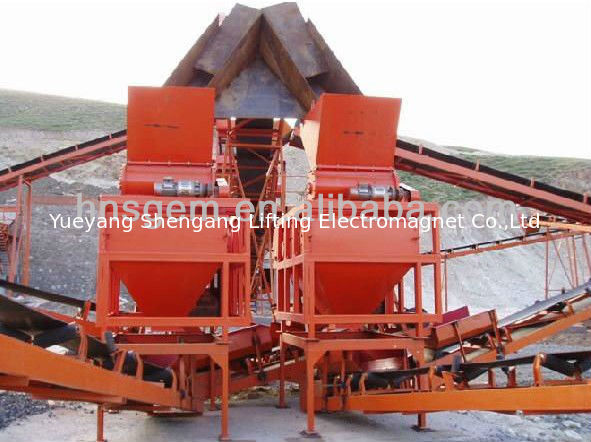

Dry Manganese Ore Magnetic Separator
ShenGang Magnetic Separator CTS Series
Different Gauss can be expected at the drum surface.
Suitable for iron ore, fly ash of iron power plant separator with large capacity, high recovery rate, especially for iron ore concentrate select.
Ore Magnetic Separator Manufacturer CTS Series:
Working principle of Iron Ore Equipment:
When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.
Rotating Speed r/min
Particle Size mm
*Lifting Magnet Series:
--application for transporating steel scraps, steel plates, billets,etc.
*Cable Reel Series:
--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..
Standard Export Package:
(fixed iron frame with five-plywoodboard packing to keep safety and long-distance transportation)
