Durable High Strength Magnets , Electric Pallet Lift Truck Unique Heat Protection Adopted

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: MW5-70L/1
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Standard export package (lifting magnet for lifting ingots )
Supply Ability: 90 Piece/Pieces per Month lifting magnet for lifting ingots,crane magnet
Type: Electromagnetic Composite: Aluminum Or Copper Coil
Shape: Round, Circular Application: Industrial Magnet, Suitable For Transporting Steel Scraps Under Normal Temperature
Product Name: High Quality Crane Lifting Electro Magnet For Steel Ingots Current: 15A
Rated Voltage: 220V Power: 3.3KW
Lifting Capacity For Steel Scrap: 120/100kg Lifting Capacity For Steel Ball: 2500kg
Lifting Capacity For Cast Iron: 380/200kg Weight: 490kg
Port: Shanghai/Shenzhen/Guangzhou
High Light:

material handling equipment

,

heavy duty lifting magnets

High Quality Crane Lifting Electro Magnet for Steel Ingots



--MW5 Series Circular Scrap Lifting Equipment for Crane



Product Description



Main Features:

  • Adopt totally sealing structure with good property of moisture-proofing
  • Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy consumption
  • The energizing coils are processed by special technology to improve the electrical property and mechanical property. Heat-resistant grade of insulating material reaches grade C with long service life
  • Rated power-on sustaining rate of normal type electromagnet is increased from 50% to 80%,which improves the efficiency of the electromagnet
  • High temperature type electromagnet adopts unique method of heat protection, the temperature of the attached materials is increased from 600 °C to 700 °C, which expands application range of the electromagnet
  • Simple and convenient installation, operation and maintenance

Benifits:

  • STRONG ATTRACTION FORCE AND ENERGY SAVING
  • NORMAL & HIGH TEMPERATURE OPTIONAL
  • SIMPLE OPERATION AND MAINTENANCE

Application:



MW5 Series lifting magnet is suitable for transporting cast ingot, steel ball and various kinds of steel scraps.

Technical Data:



(Normal temperature type,Rated voltage DC-220v, Duty cycle TD-60%)



Model

Current(A)

Power(KW)

Lifting capability(KG)

Weight(KG)

Dimention(mm)

Steel ball

Steel ignot

Crop end

A

B

C

D

E

MW5-70L/1

15

3.3

2500

380/200

120/100

490

700

800

160

90

30

MW5-80L/1

18

3.96

3000

480/250

150/130

620

800

800

160

90

30

MW5-90L/1

26.6

5.9

4500

650/440

250/200

800

900

1090

200

125

40

MW5-110L/1

35

7.7

6500

1000/800

450/400

1350

1100

1140

220

150

45

MW5-120L/1

45.5

10

7500

1300/1000

600/500

1700

1200

1180

220

150

45

MW5-130L/1

54

12

8500

1400/1100

700/600

2010

1300

1240

250

175

50

MW5-150L/1

71.2

15.6

11000

1900/1500

1100/900

2830

1500

1250

350

210

60

MW5-165L/1

75

16.5

12500

2300/1800

1300/1100

3200

1650

1590

370

230

75

MW5-180L/1

102

22.5

14500

2750/2100

1600/1350

4230

1800

1490

370

230

75

MW5-210L/1

129

28.4

21000

3500/2800

2200/1850

7000

2100

1860

400

250

80

MW5-240L/1

154

33.9

28000

4800/3800

2850/2250

9000

2400

2020

450

280

90



Overall Dimension Drawing:

Durable High Strength Magnets , Electric Pallet Lift Truck Unique Heat Protection Adopted 0

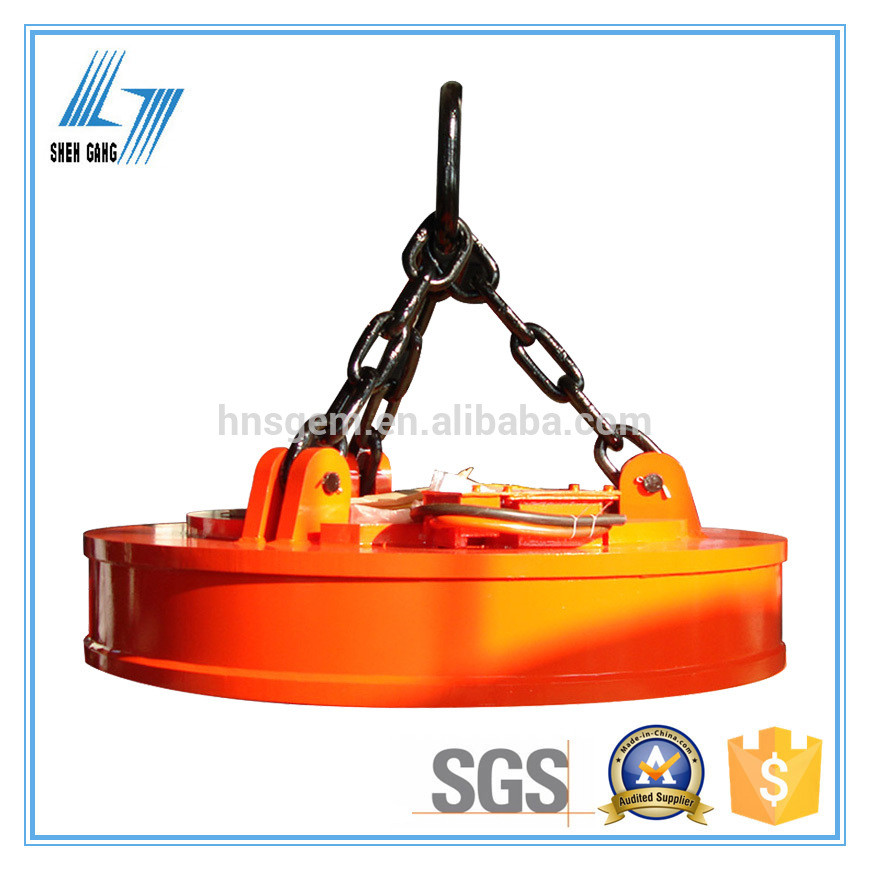

Physical Product Photo:



Durable High Strength Magnets , Electric Pallet Lift Truck Unique Heat Protection Adopted 1   Durable High Strength Magnets , Electric Pallet Lift Truck Unique Heat Protection Adopted 2

Durable High Strength Magnets , Electric Pallet Lift Truck Unique Heat Protection Adopted 3  Durable High Strength Magnets , Electric Pallet Lift Truck Unique Heat Protection Adopted 4



Durable High Strength Magnets , Electric Pallet Lift Truck Unique Heat Protection Adopted 5

Durable High Strength Magnets , Electric Pallet Lift Truck Unique Heat Protection Adopted 6

FAQ

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1. What kind of the materials you want to lift?  Steel scraps /steel billet/ stell ingot / steel plate/ steel bar /others?



2. What' s the lifting capacity you expect per time?


3. What kind of working site does the magnet work? Indoor or outdoor? how about the working temperature?



4. Kindly provide your power supply information (__V, DC/AC, ___Hz), and information for crane (single beam or double beam, single hook or double hook, how about the loading capacity).
