|Place of Origin:||Hunan, China (Mainland)|
|Minimum Order Quantity:||1 Piece/Pieces|
|Packaging Details:||Standard export package ( Electromagnetic Lifting Magnets for Handling Scrap)|
|Supply Ability:||80 Piece/Pieces per Month Electromagnetic Lifting Magnets for Handling Scrap|
|Type:||Electromgnetic Type||Composite:||Aluminum Or Copper Coil|
|Shape:||Circular, Circular Lifting Magnets||Application:||Industrial Magnet, Magnetizer Lifting Magnet To Lift Steel Scraps|
|Product Name:||Electromagnetic Lifting Magnets For Handling Scrap||Color:||Red|
electromagnetic lifting magnet,
magnetic lifting device

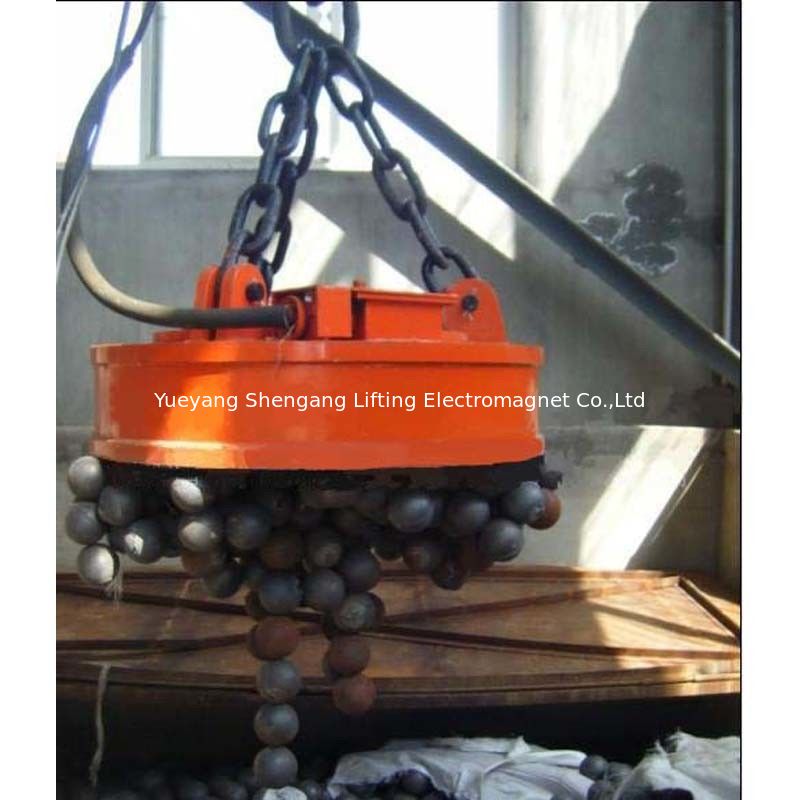

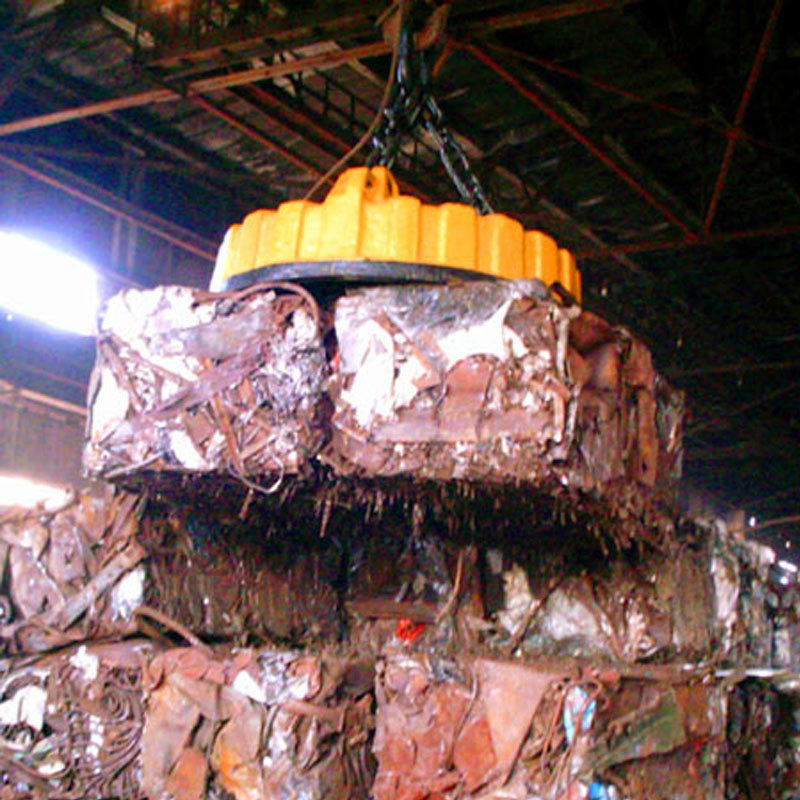

Lifting Electromagnet is used for transporting iron scraps,ingots,steel chips,slabs,steel plates and steel sheets.Electromagnet is suitable for installing on excavator,crane;and electromagnet also can be submerged under water,can be used at very high temperature and normal temperature in metallurgical plants,scrap yards and ship-building plants.
75% or 60% Duty Cycle
All welded heavy duty construction
Class H insulation
Powerful deep magnetic field design
Aluminum Coil,Copper Coil optional
There are three options:
-- Normal Temperature type (DC 220V,Duty cycle:60%)
-- High Temperature type (DC 220V,Duty cycle:60%,temperature does not exceed 700 ºC)
-- Diving Type (DC 220V,Duty cycle:60%)
-- High Frequency type (DC 220V,Duty cycle:75%)
|lifting capacity (kg) cold/hot state||Mass (kg)||Overall dimension (mm)|
|steel ball||cast iron||steel scrap||A||B||C||D||E|

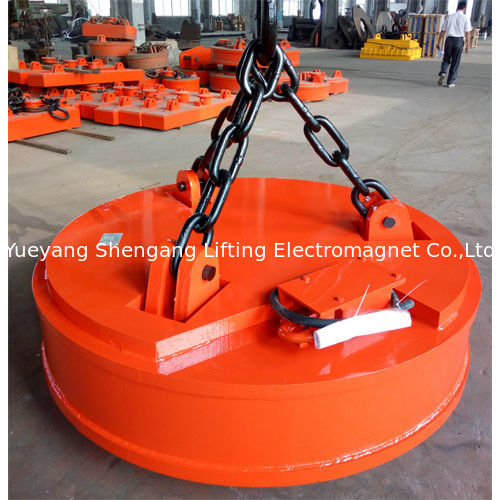

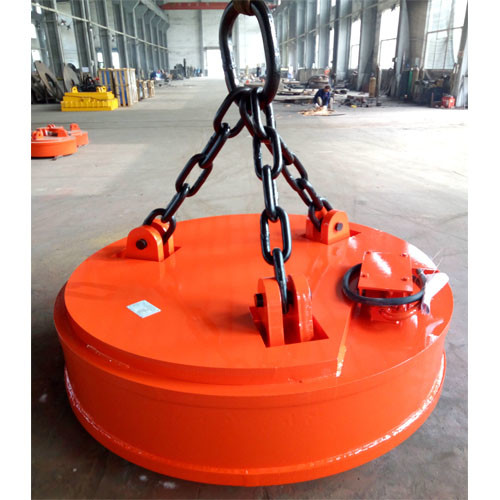

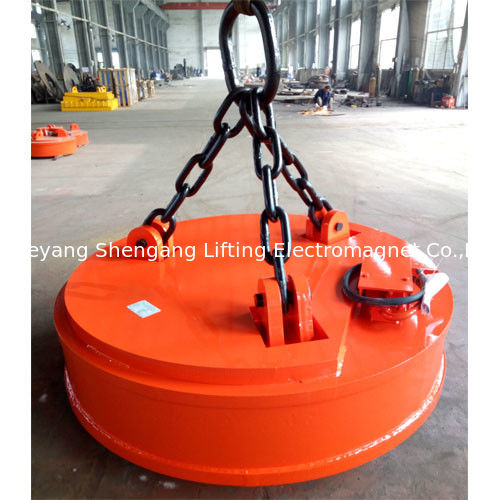

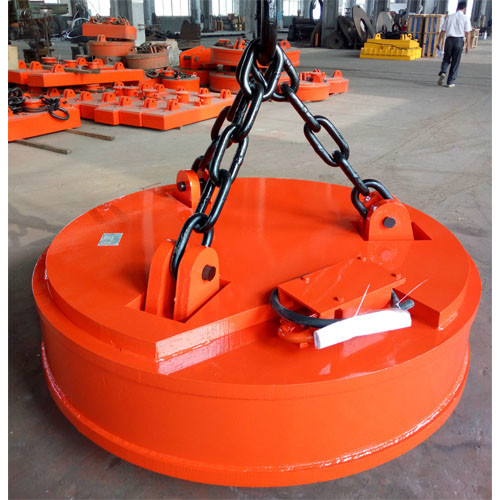

Overall dimension and product pictures:
Complete set of equipment:
· Lifting electromagnet;
· Spring type cable reel with Cable;
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type);
· Cable connector / Quick coupling.
Processing flow and Package:
The package is angle steel welded frame and fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
Q: Why customers choose us?
A: We are a professional lifting electro magnet products manufacturer with 17 years experience in China.We have our own factory which can offer better price, control delivery time better based on strict quality inspection and good after-service guarantee.
Q: What is your payment terms?
A: Payment≤USD1000.00,100% T/T in advance;Payment>USD1000.00,
30%T/T in advance,70% T/T before delivery. We support T/T, Western Union,LC at sight, SWIFT/Money Gram/Paypal etc..
Q: How long is your delivery time?
A: Standard model is within 13 work days after deposit confirmed.
Customerized model will depend on actual production needs.
Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.
Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.
To help you get the best lifting electromagnet for your application, we should have the following information:
1. What are the materials you want to lift?
For example: Steel scraps, steel billet, ingot, plate, bar or ball. For steel plate, please let us know its dimension (Length×Width×Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information (__V, DC/AC,__Hz), and information for crane (single beam or double beam, single hook or double hook, how about the loading capacity).
5. Do you need full set with cable reel, control cabinet or only magnet?
6. Do you need FOB or CIF price, which port?
(More details, please feel free to contact us directly.)
Lifting Electromagnets Application:
