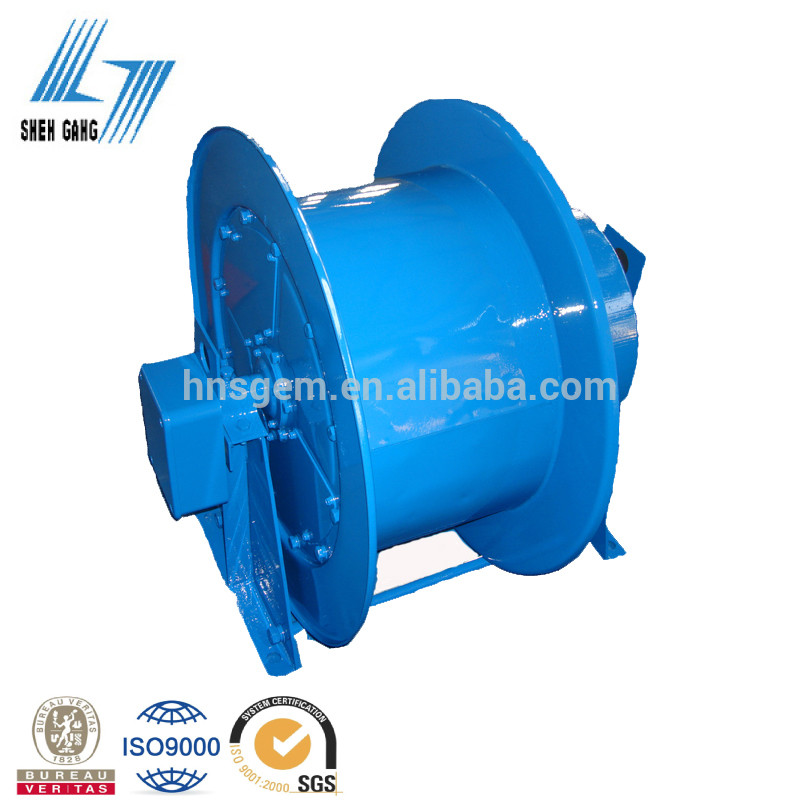

Electric Retractable Wire Cord Reel with Spring

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: JTA65-20-4
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Electric Retractable Wire Cord Reel)
Supply Ability: 100 Piece/Pieces per Month Electric Retractable Wire Cord Reel
Type: Cable Reel, Slip Ring Built-in Installed Application: Industrial Equipment, Elastic Power Supply Cable Reel
Male End Type: Bs Female End Type: IEC
Product Name: Electric Retractable Wire Cord Reel With Spring Series: JTA Type
Current: 50A Color: Blue
Cable Length: 20m Weight: 120kg
Installation Patterns: Vertical Coiling Phase Number: 4
Port: Shanghai/Shenzhen/Guangzhou
High Light:

spring loaded retractable cable reel

,

retractable power reel

Electric Retractable Wire Cord Reel with Spring

Product Description

 Features:

  • Using spiral springs as power without electric energy consumption to keep reliable in operation
  • Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
  • Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
  • Power supply easily, safety and reliability in operation, correct strs on the cables

Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself. There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service; over hanging type which can coil up much longer cables.

Benifits:

  • Easy installation and start of operation
  • Corrosion and water proof
  • Silver brush would prevent and reduce the noise by conductors friction

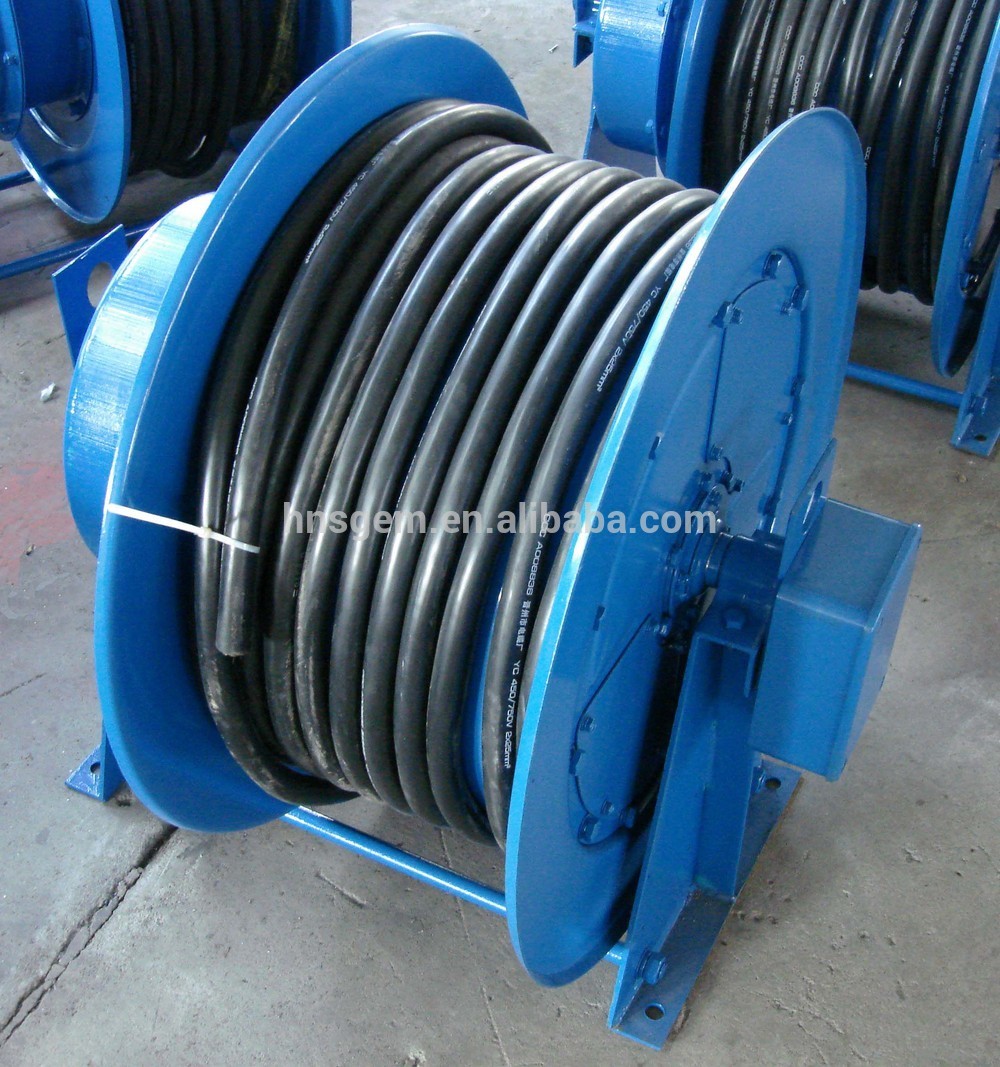

Electric Retractable Wire Cord Reel with Spring 0

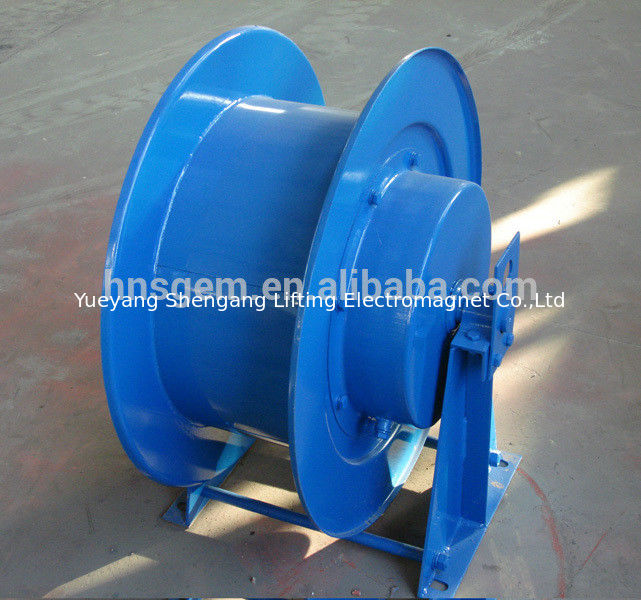

Electric Retractable Wire Cord Reel with Spring 1

Product NameElectric Retractable Wire Cord Reel with Spring
Series No.JTA
Structure TypeSlip ring built-in type
Installation PatternsVertical Coiling
Power TypeSpring Type
Current50A
Cable Length20m
Weight120KG
CompositeQ235 steel plate, spring, slip ring asembly, insulation ring, terminal,coppering,brush bracket assembly,etc..
ApplicationCable reel is used to supply power to the mobile electrical apparatus .
Pakaging of Magnetfixed iron frame with five-plywoodboard and no need fumigation
Lead Timewithin 15 work days after deposit cofirmed
PaymentT/T, Western Union, LC at sight
Warranty12 months
Notes  1. Please let us know your cable spec.(core number*cross section), cable length,we can make different type of cable reel based on your different requirements.
 2. Our MOQ is 1pc. (Different quantity will with different price.)



Series No.: JTA Series

Product Name: Electric Retractable Wire Cord Reel with Spring



Application:
It is used to supply power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed

trailer, all kinds of crane, electrical powered grab buckets,etc.







Electric Retractable Wire Cord Reel with Spring 2



SeriesitemABCD1D2dEFWWeight(kg)
15m,20m
Series
13003604005007001544060025095
2490650300100
3560720250115
4610770300120
5720880300150



Cable ModelEnabled Current 15m Seriesitem20m Seriesitem25m Seriesitem
Core No.*Cross SectionContinuously1 min on/off
YC2*105875JTA75-15-21JTA75-20-21JTA75-25-22
JTB75-15-2JTB75-20-2JTB75-25-2
YC2*1677100JTA100-15-21JTA100-20-23JTA100-25-22
JTB100-15-2JTB100-20-2JTB100-25-2
YC2*25106135JTA135-15-24JTA135-20-24JTA135-25-23
JTB135-15-2JTB135-20-2JTB135-25-2
YC3*10+1*65065JTA65-15-42JTA65-20-44JTA65-25-42
JTB65-15-4JTB65-20-4JTB65-25-4

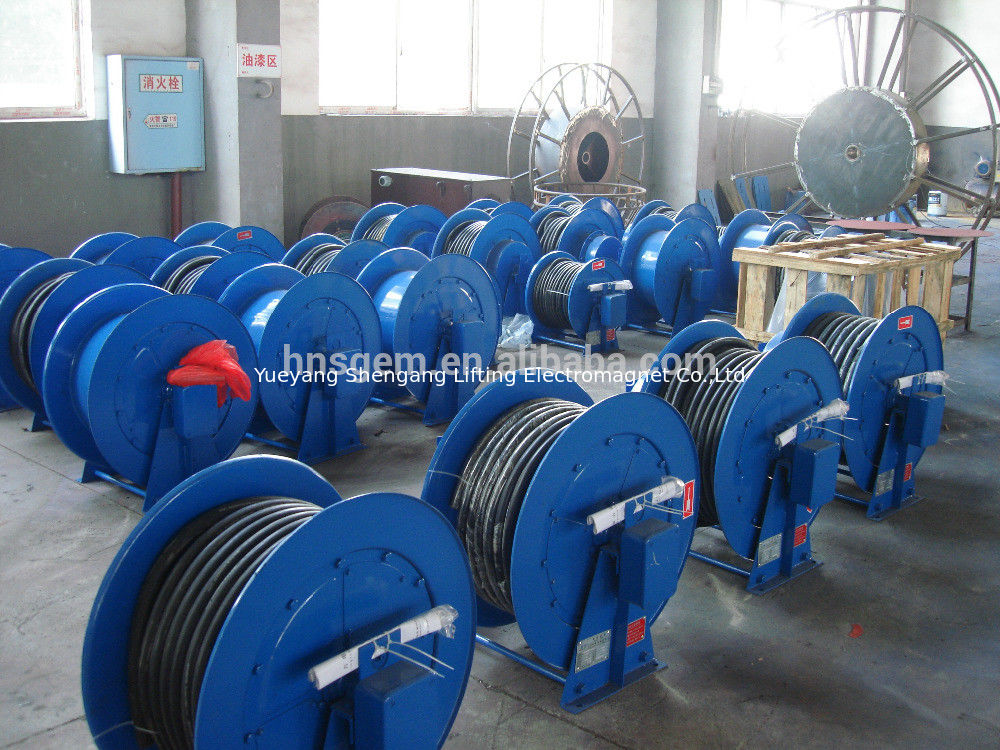

Electric Retractable Wire Cord Reel with Spring 3

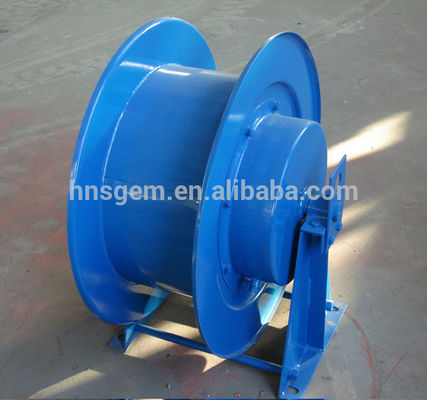

Electric Retractable Wire Cord Reel with Spring 4

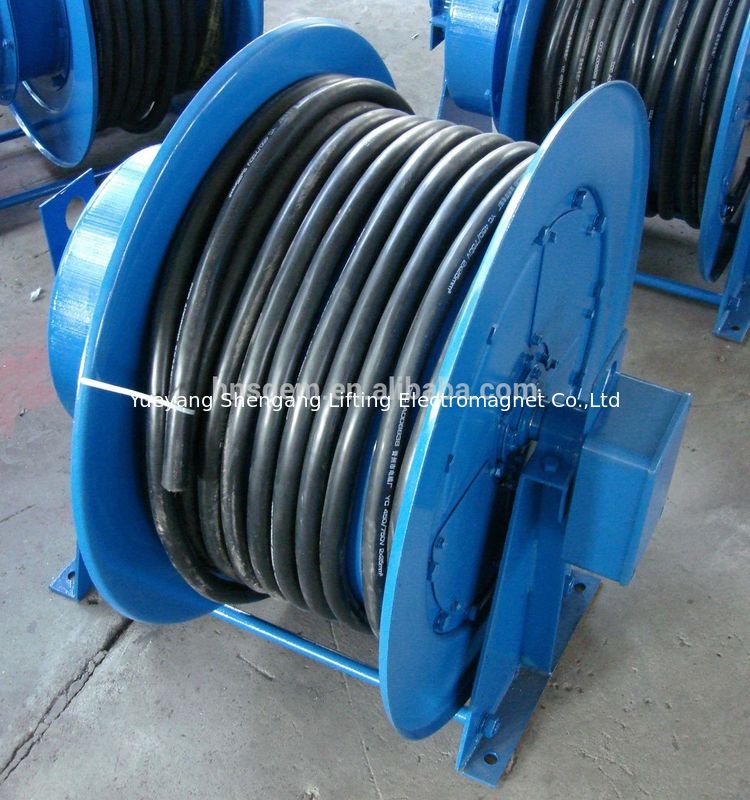

Electric Retractable Wire Cord Reel with Spring 5

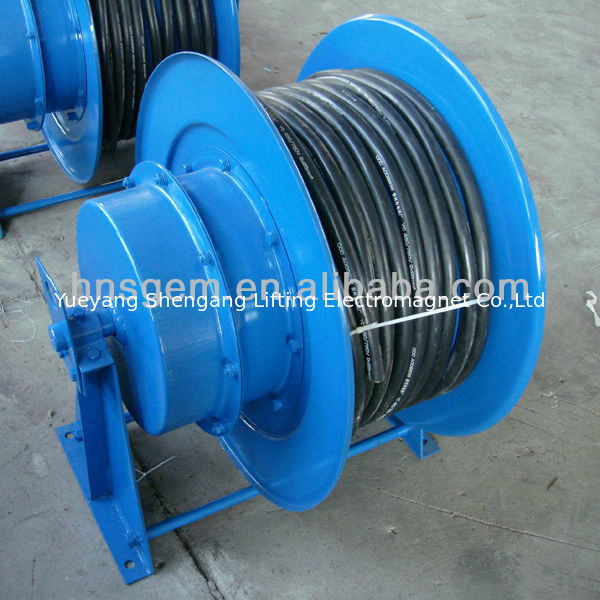

Electric Retractable Wire Cord Reel with Spring 6

We provide professional service for customers from over 30 countries. And we exported our main products as lifting magnet, cable reel, magnetic separator to the market as North America, South America, Europe, Southeast Asia/ Mideast,Africa, Australia and so on.



We are also looking for clients in different market to agent our products.Once you have interesting, welcome to contact with us at your convenient time.

Packaging & Shipping

Electric Retractable Wire Cord Reel with Spring 7

(fixed iron frame with five-plywoodboard packing to keep 300kg Lifting Electromagnet & Electromagnetic Lifting Device with a safety and long-distance transportation and no need fumigation when clear custom )

FAQ

 Electric Retractable Wire Cord Reel with Spring 8

Electric Retractable Wire Cord Reel with Spring 9

For select right model based on your needs, please kindly confirm us with below details for study, tks:



1.Do you have special requirement about the power types?

spring type / motor powered/hysteresis?



2.What is the cable specification?

cable core number and cross section, coil length of cable, electric current)?



3. What kind of mobile equipment will the cable reel be applied with?

lifting magnet, crane or others



4. What kind of installation patterns you prefer?

Vertical coiling or Horizontal coiling?
