| Place of Origin: | Hunan, China (Mainland) |
|---|---|
| Brand Name: | SHENGANG |
| Certification: | ISO9001 |
| Model Number: | RCDD-6 |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | standard export package(Electromagnetic Iron Separator) |
| Supply Ability: | 70 Piece/Pieces per Month electromagnetic iron |
| Condition: | New | Type: | Magnetic Separator, Electromagnet Type |
|---|---|---|---|
| Voltage: | DC-220V, DC-220 | Power(W): | 1.4KW |
| Dimension(L*W*H): | 2400*1150*520mm | Weight: | 1160kg, 2700kg |
| Product Name: | Electromagnetic Iron Separator | Color: | Red |
| Power: | 4.2kw | Duty Cycle: | TD-100% |
| Belt Width: | 1200mm | Standard Erection Height: | 310mm |
| Application: | Conveyor Belt Separator To Remove Magnetic Tramp Iron | Warranty: | 12months |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Port: | Shanghai/Shenzhen/Guangzhou |
| High Light: | permanent magnet alternator,magnetic lifting tool |
||
Electromagnetic Iron Separator
--- Series RCDD
Brief Introduction :
RCDD series is self-unloading type magnet separator in long-term system. It is added platform, iron removing belt and etc, which is suspended over the belt conveyer. Through the conveyance of the iron unloading belt, the separator will auto discarge the iron magnetic articles which are absorbed by the magnet into the iron collecting box. Thus removing the iron magnetic articles is gained. Which is the one of the most common used types of separator.
Application:
Most being suitable for removing iron magnetic articles from thicker bed and granularity of the materials as ores, coal, hard coke, limestone, spells, etc.
Features:
Improving and purifying non-magnetic materials; Recycling Iron
Technical Data:
International Standard model | Standard Erection T(mm) | width of Conveyer belt(mm) | Rated voltage (v) | Cold state Consumption Power(kw) | Weight (kg) | Overall dimension (mm) | Driving Motor capacity (kw) | Corollary control panel | |||||
| A | B | C | D | E | F | ||||||||
| RCDD-5 | 160 | 500 | 110 | 1.03 | 1074 | 2300 | 1330 | 1100 | 914 | 500 | 520 | 1.5 | SSTM-1.5D1-D |
| RCDD-6 | 170 | 500 | 110 | 1.4 | 1160 | 2400 | 1400 | 1150 | 1068 | 650 | 520 | 1.5 | |
| RCDD-6 | 220 | 650 | 110 | 1.8 | 1330 | 2400 | 1250 | 1250 | 1120 | 650 | 555 | 1.5 | SSTM-3.1D1-D |
| RCDD-8 | 250 | 800 | 110 | 2.6 | 1470 | 2750 | 1600 | 1360 | 1270 | 800 | 580 | 2.2 | |
| RCDD-8 | 250 | 800 | 110 | 2.9 | 2000 | 2750 | 1770 | 1465 | 1480 | 900 | 625 | 2.2 | |
| RCDD-10 | 260 | 1000 | 110 | 2.9 | 2000 | 2900 | 1770 | 1465 | 1480 | 900 | 625 | 2.2 | SSTM6.2D1-D |
| RCDD-12 | 310 | 1200 | 220 | 4.2 | 2700 | 3200 | 2000 | 1590 | 1680 | 1000 | 625 | 4 | |
| RCDD-16 | 410 | 1600 | 220 | 8.2 | 6020 | 3800 | 2620 | 1850 | 1990 | 1400 | 725 | 4 | SSTQ-12D1-D |
Overall Dimension Drawing :

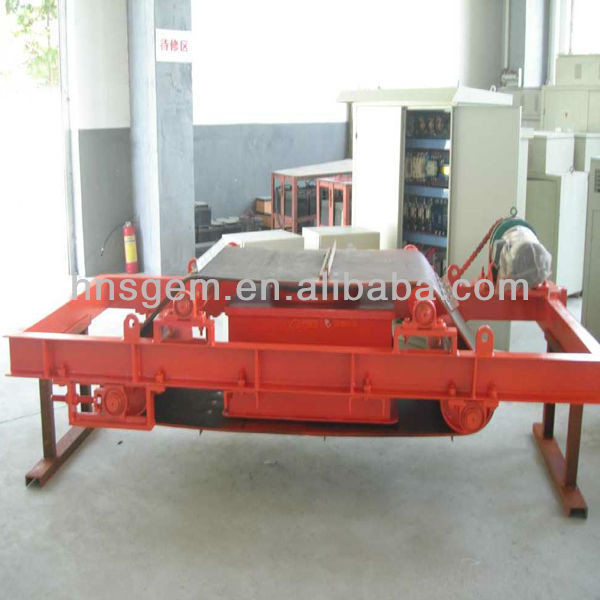

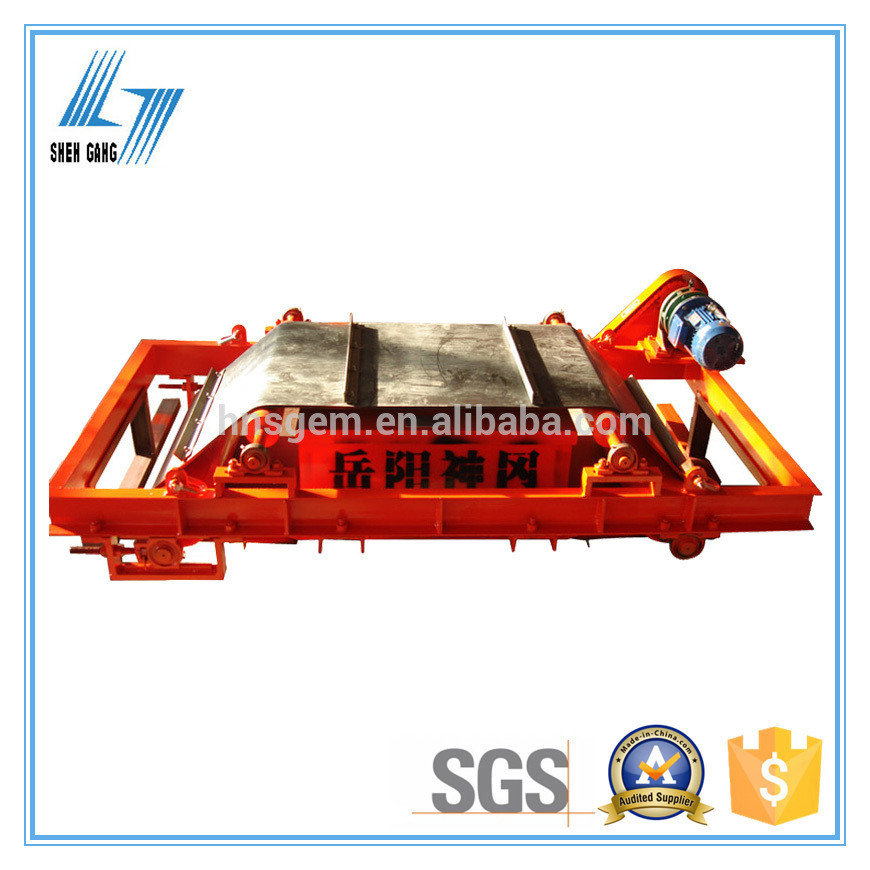

Physical Product Photo:
In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :
1.what kind of material need to process separation?
2.does it work with belt? if yes, how about the belt width? belt speed?
3.how about the handling capacity you require? and the separation material size?
4.do you need self-discharging type or manual discharge type?
5.rectangular shape or round shape? permanent magnet type or electromagnet type?
