Excellent Suspended Electromagnet Magnetic Separator

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO9001
Model Number: RCDD-8 Magnetic Separator
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Excellent Magnetic Separator)
Supply Ability: 70 Piece/Pieces per Month electromagnet magnetic separator
Condition: New Type: Magnetic Separator, Electromagnet Type
Voltage: DC-110, DC-110 Power(W): 2.6kw
Dimension(L*W*H): 2540*1480*865mm Weight: 1470kg, 1470kg
Product Name: Excellent Suspended Electromagnet Magnetic Separator Color: Red
Belt Width: 800mm Power: 2.6kw
Duty Cycle: TD-100% Standard Erection Height: 250mm
Application: Magnet Separator To Remove Magnetic Tramp Iron From Material Bed Warranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machinery Overseas Port: Shanghai/Shenzhen/Guangzhou
High Light:

small strong magnets


magnetic lifting tool

Excellent Suspended Electromagnet Magnetic Separator


--- Series RCDD


Brief Introduction :


RCDD series is self-unloading type magnet separator in long-term system. It is added platform, iron removing belt and etc, which is suspended over the belt conveyer. Through the conveyance of the iron unloading belt, the separator will auto discarge the iron magnetic articles which are absorbed by the magnet into the iron collecting box. Thus removing the iron magnetic articles is gained. Which is the one of the most common used types of separator.




Most being suitable for removing iron magnetic articles from thicker bed and granularity of the materials as ores, coal, hard coke, limestone, spells, etc.




Improving and purifying non-magnetic materials; Recycling Iron

  • made of aluminum coil and iron core,etc.
  • high gauss
  • self-discharing type

Technical Data:






Erection T(mm)

width of Conveyer belt(mm)

Rated voltage








Overall dimension (mm)





Corollary control




Overall Dimension Drawing :

Excellent Suspended Electromagnet Magnetic Separator 0


Excellent Suspended Electromagnet Magnetic Separator 1Excellent Suspended Electromagnet Magnetic Separator 2

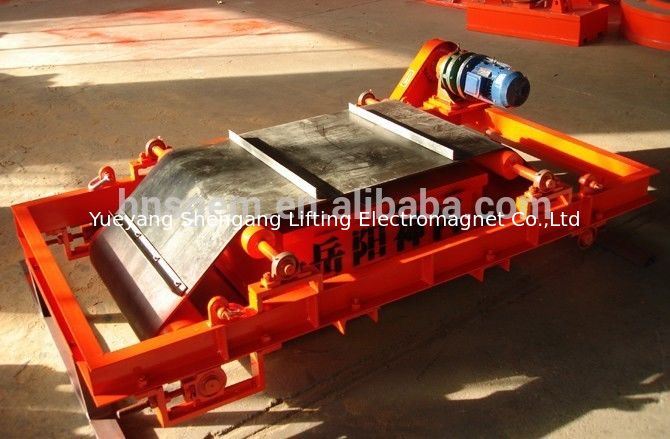

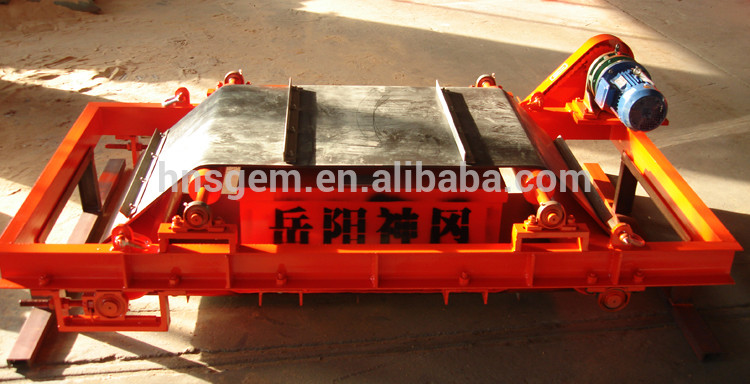

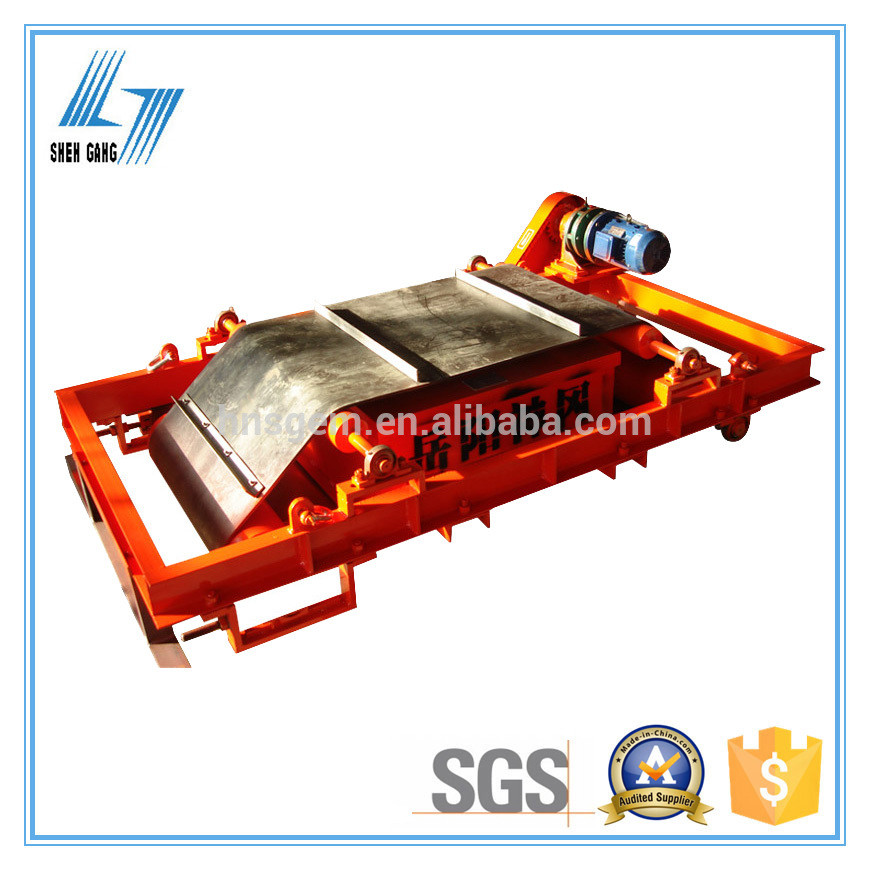

Physical Product Photo:


Excellent Suspended Electromagnet Magnetic Separator 3


Excellent Suspended Electromagnet Magnetic Separator 4



In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.what kind of material need to process separation?


2.does it work with belt? if yes, how about the belt width? belt speed?


3.how about the handling capacity you require? and the separation material size?


4.do you need self-discharging type or manual discharge type?


5.rectangular shape or round shapepermanent magnet type or electromagnet type?


For our relate products you may interested in, kindly click for details:


1. Manual Discharging Type Rectangular Electromagnetic Separator


2.Manual Discharging Type Circular Electromagnetic Separator


3. Self-Discharging Conveyor Belt Electromagnetic Separator


 4. Self- Discharging Oil Cooling Type Rectangular Electromagnetic Separator


5. Manual Discharging Type Rectangular Permanent Magnetic Separator


6. Self-discharging Type Conveyor Belt Permanent Magnetic Separator


7. Lifting Electromagnet for Billet Lifting


8. Lifting Electromagnet for Sheet Plate



*Lifting Magnet Series:

--application for transporating steel scraps, steel plates, billets,etc.

Excellent Suspended Electromagnet Magnetic Separator 5

*Cable Reel Series:

--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..

Excellent Suspended Electromagnet Magnetic Separator 7
