Fully Sealed Electric Lifting Magnets High Humidity Proof Great Suction Ability

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG LIFTING MAGNET
Certification: ISO9001:2008
Model Number: MW5-70L/1
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Standard export package (Lifting Magnet with Wire Rods and Coil Rods)
Supply Ability: 90 Piece/Pieces per Month lifting magnet with wire rods
Condition: New Dimension(L*W*H): 700*800*400mm
Product Name: Lifting Magnet With Wire Rods And Coil Rods Shape: Circular
Current: 15A Rated Voltage: 220V
Power: 3.3KW Lifting Capacity For Steel Scrap: 120/100kg
Lifting Capacity For Steel Ball: 2500kg Lifting Capacity For Cast Iron: 380/200kg
Weight: 490kg Application: Suitable For Transporting Steel Scraps Under Normal Temperature
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
Port: Shanghai/Shenzhen
High Light:

material handling equipment

,

heavy duty lifting magnets

Lifting Magnet with Wire Rods and Coil Rods



--MW5 Series Circular Magnet for Crane



Product Description



Main Features:

  • Adopt totally sealing structure with good property of moisture-proofing
  • Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy consumption
  • The energizing coils are processed by special technology to improve the electrical property and mechanical property. Heat-resistant grade of insulating material reaches grade C with long service life
  • Rated power-on sustaining rate of normal type electromagnet is increased from 50% to 80%,which improves the efficiency of the electromagnet
  • High temperature type electromagnet adopts unique method of heat protection, the temperature of the attached materials is increased from 600 °C to 700 °C, which expands application range of the electromagnet
  • Simple and convenient installation, operation and maintenance

Benifits:

  • STRONG ATTRACTION FORCE AND ENERGY SAVING
  • NORMAL & HIGH TEMPERATURE OPTIONAL
  • SIMPLE OPERATION AND MAINTENANCE

Application:



MW5 Series lifting magnet is suitable for transporting cast ingot, steel ball and various kinds of steel scraps.

Technical Data:



(Normal temperature type,Rated voltage DC-220v, Duty cycle TD-60%)



Model

Current(A)

Power(KW)

Lifting capability(KG)

Weight(KG)

Dimention(mm)

Steel ball

Steel ignot

Crop end

A

B

C

D

E

MW5-70L/1

15

3.3

2500

380/200

120/100

490

700

800

160

90

30

MW5-80L/1

18

3.96

3000

480/250

150/130

620

800

800

160

90

30

MW5-90L/1

26.6

5.9

4500

650/440

250/200

800

900

1090

200

125

40

MW5-110L/1

35

7.7

6500

1000/800

450/400

1350

1100

1140

220

150

45

MW5-120L/1

45.5

10

7500

1300/1000

600/500

1700

1200

1180

220

150

45

MW5-130L/1

54

12

8500

1400/1100

700/600

2010

1300

1240

250

175

50

MW5-150L/1

71.2

15.6

11000

1900/1500

1100/900

2830

1500

1250

350

210

60

MW5-165L/1

75

16.5

12500

2300/1800

1300/1100

3200

1650

1590

370

230

75

MW5-180L/1

102

22.5

14500

2750/2100

1600/1350

4230

1800

1490

370

230

75

MW5-210L/1

129

28.4

21000

3500/2800

2200/1850

7000

2100

1860

400

250

80

MW5-240L/1

154

33.9

28000

4800/3800

2850/2250

9000

2400

2020

450

280

90



Overall Dimension Drawing:

Fully Sealed Electric Lifting Magnets High Humidity Proof Great Suction Ability 0

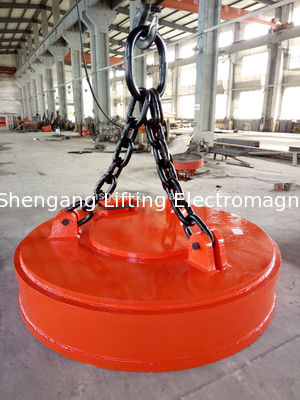

Physical Product Photo:



   Fully Sealed Electric Lifting Magnets High Humidity Proof Great Suction Ability 1 Fully Sealed Electric Lifting Magnets High Humidity Proof Great Suction Ability 2





Fully Sealed Electric Lifting Magnets High Humidity Proof Great Suction Ability 3

Fully Sealed Electric Lifting Magnets High Humidity Proof Great Suction Ability 4

FAQ

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1. What kind of the materials you want to lift?  Steel scraps /steel billet/ stell ingot / steel plate/ steel bar /others?



2. What' s the lifting capacity you expect per time?


3. What kind of working site does the magnet work? Indoor or outdoor? how about the working temperature?



4. Kindly provide your power supply information (__V, DC/AC, ___Hz), and information for crane (single beam or double beam, single hook or double hook, how about the loading capacity).



For our relate products you may interested in, kindly click for details:



1. Lifting Electromagnet for Excavator Installation



2. Circular Lifting Electromagnet for Steel Scrap Lifting



3. Oval Shape Lifting Electromagnet for Steel Scrap Lifting



4. Self-discharging Electromagnetic Separator



5. Manual Discharging Type Rectangular Electromagnetic Separator



6. Manual Discharging Type Circular Electromagnetic Separator



7. Lifting Electromagnet for Billet Lifting



8. Lifting Electromagnet for Sheet Plate





*Lifting Magnet Series:

--application for transporating steel scraps, steel plates, billets,etc.

Fully Sealed Electric Lifting Magnets High Humidity Proof Great Suction Ability 5

*Cable Reel Series:

--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..

Fully Sealed Electric Lifting Magnets High Humidity Proof Great Suction Ability 6

Company Information

We are a professionl lifting electromagnet equipment manufacturer and exporter with more than 15 years export experience. Very sincerely looking for long-term win-win business here!



Major exports include lifting electromagnet, magnetic lifter, electromagnetic separator, cable reel, control cabinet and magnetic stirr, etc. .



Our factory also pass the SGS audit per year with certification issued.



We warmly welcome you to enquiry or visit us, and also appreciate any of your comments!



We also have our own brand as "SHENGANG"



Fully Sealed Electric Lifting Magnets High Humidity Proof Great Suction Ability 7 Fully Sealed Electric Lifting Magnets High Humidity Proof Great Suction Ability 8

Fully Sealed Electric Lifting Magnets High Humidity Proof Great Suction Ability 9Fully Sealed Electric Lifting Magnets High Humidity Proof Great Suction Ability 10

Packaging & Shipping

 (fixed iron frame with five-plywoodboard packing to keep fting magnet with wire rods with a safety and long-distance transportation and no need fumigation when clear custom )

Fully Sealed Electric Lifting Magnets High Humidity Proof Great Suction Ability 11

Our Services

 Quick Response:

We highly appreciate your any enquiry by email, fax or instant message.

We will reply your email or fax within 24 hours.

Please fell free to call us at any time if there is any questions.



Convenient Transportation:



All available shipping ways could be applied, by courier, air or sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you till the goods arrive.
