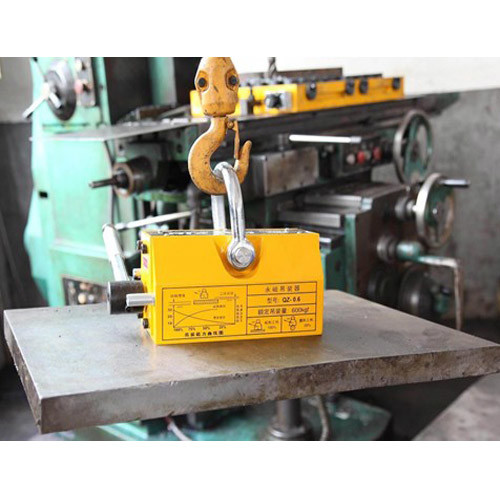

Mechanical Industry Steel Plate Lifting Magnets 10000KG Rated Load Capacity

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO9001:2008.CE,SGS,BV
Model Number: YC1-5
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(1 Ton Magnetic Lifter)
Delivery Time: 10 workdays after signed the contract
Payment Terms: L/C, T/T
Supply Ability: 80 Piece/Pieces per Month 1 ton magnetic lifter
Condition: New Product Name: High Quality 1 Ton Magnetic Lifter For Steel Plate
Color: Yellow Rated Lifting Capacity: 5000kg
Max.Attraction Force: 15000kg Weight: 220kg
Overall Dimension: 600*232*260mm Main Features: Safety Lift And Efficient Machine Loading
Safety Factor: 3X Application: Permanent Lifting Magnets Magnet Lifter To Lift Steel Plates
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
Port: Shanghai/Shenzhen/Guangzhou
High Light:

magnetic plate lifter

,

sheet metal lifting device

Handling Steel Sheet of Manual type Permanent Magnet Lifter Factory

Application:

1. Move plate steel, block or round steel and iron material easily and safely.

2. Load machines faster.
Load most work pieces to save time and boost production. It's perfect for loading or unloading press molds, plastic molds, machined parts and other ferrous parts and materials.

3. Fastest and safest way to lift without dangerous slings.

4. No electricity required.
Super-powerful "rare earth" neodymium iron boron magnets require no electricity. ?There is no risk in losing lifting force even during power failures.

5. It is used to lift and transfer the normal temperature steel plates in ship-making industry, engineering mechanical industry, automobile industry and so on. There have three series of YX and YC according to their material unloading modes.



Features:



  • Rated for loads up to 10000KG.

  • Powerful magnet tested to hold 3.5 TIMES the rated load for maximum safety.

  • Eliminates dangerous straps and slings.

  • For fast, safe, efficient machine loading and unloading



Operation:



First center the magnet on the piece to be lifted.  Then simply move the lever to the "ON" position to engage the magnet.  Spring-loaded lock keeps magnet engaged until you release it.



BENEFITS: SAFE MATERIAL HANDLING & INCREASED PRODUCTIVITY



MAXIMUM RATED LOADS:



Calculate that the magnet will safely lift your material.  The Maximum Load (ML) is different for plate and round materials and also depends upon stock thickness, carbon content, and surface finish.  Use these formulas and tables to calculate the ML for your material type.



Main Technical Data:



Model Rated Lifting Capacity(kg) Overall dimension drawing(mm) Test Max.attraction Force (kg) Weight
(kg)
Stee Plate Round Steel A B C D E F G H
YC1-0.1 100 50 115 87 64 69 140 155 30 68 350 4.1
YC1-0.3 300 150 218 178 88 85 130 185 53 52 1050 11.5
YC1-0.4 400 200 242 200 112 103 200 210 690 102 1400 17
YC1-0.6 600 300 268 222 111 116 217 235 69 102 2100 22
YC1-1 1000 500 325 295 143 143 270 265 82 140 3500 45
YC1-1.5 1500 750 365 355 155 155 280 350 100 134 5000 67
YC1-2 2000 1000 417 360 160 182 290 426 100 134 6000 78
YC1-3 3000 1500 517 467 160 182 300 520 100 134 9000 98
YC1-5 5000 2500   600 232 260 340 650 105 230 15000 220
YC1-10 10000     600 464 260         25000 450



Overall Dimension:

Mechanical Industry Steel Plate Lifting Magnets 10000KG Rated Load Capacity 0

Mechanical Industry Steel Plate Lifting Magnets 10000KG Rated Load Capacity 1


Mechanical Industry Steel Plate Lifting Magnets 10000KG Rated Load Capacity 2
FAQ



In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :



1. What kind of the materials you want to lift?  Steel plate( length*width*thickness)?

2. What' s the lifting capacity you expect per time?



Our Best Advantages:



1)Credited by CE,SGS,BV and ISO9001 certificate,with 29490m² total size of factory.
2)Adopt totally sealing structure with good property of moisture-proofing.
3)Simple and convenient installation, operation and maintenance.
4)optimized design ,reasonable structure, light dead-weight, strong lifting capacity,easy and safe operation



FAQ:



Q:Why customers choose us?
A:We are a professional lifting electromagnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.



Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.



Q:How long is your delivery time?
A:Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.



Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.
