Mining Permanent Magnetic Separator Rare Earth Advanced Techology Adopted

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: RCYD-6
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Magnetic Separators for Mining)
Supply Ability: 90 Piece/Pieces per Month Magnetic Separators for Mining
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Product Name: Magnetic Separators For Mining Color: Red
Type: Permanent Type Unload Trigger Spec.: 2.7
Duty Cycle: TD-100% Belt Width: 650mm
Standard Erection Height: 200mm Material: Made Of Rare Earth NdFeB
Weight: 880kg Application: Applied For Power Industry,metallurgical Industry,etc.
Port: Shanghai/Shenzhen/Guangzhou
High Light:

permanent magnet alternator

,

magnetic lifting tool

China Magnetic Separators for Mining

Product Description

Brief Introduction :

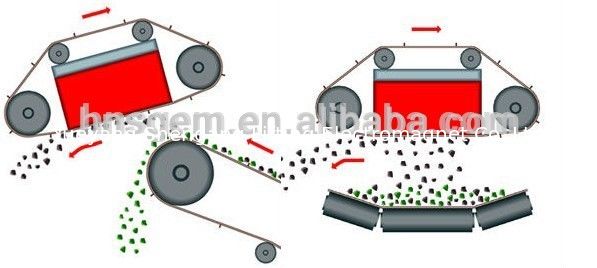

Self-discharge permanent-magnet separator series RCYD is energy

economizing type separator equipment using the latest third generation rare-earth permanent-magnet material NdFeB to form magnetic system which produces strong magnet field attraction. This product series links up with transferring equipments to form  a  complete set to remove the iron magnetic materials under weight of 0.1-25kg mixed among the non-magnetic materials.



Application:



It can be used for improving the material quality and purification as well as recovering the magnetic materials. This product series is widely applied for power industry, metallurgical industry, mining  industry, papermaking industry, building industry, food industry, cement industry, coal picking-up industry, chemical industry and so on.



Features:

  • High magnetic field intensity, usually used in occasions with plenty of iron.
  • The wholly sealed structure makes the separator water-proof, dust-proof and corrosion resisting.
  • Made of rare earth NdFeB
  • High gauss
  • Energy saving
  • Easy to install and convenient to use.
  • High efficiency and stable performance.
  • Good operational reliability and flexibility

Mining Permanent Magnetic Separator Rare Earth Advanced Techology Adopted 0

Mining Permanent Magnetic Separator Rare Earth Advanced Techology Adopted 1

Product Name Magnetic Separators for Mining
Series No. RCYD Series (Self-Discharge Magnetic Separator)
Belt Width 600mm
Hanging Height 200mm
Driving Motor Power 2.2KW
Duty Cycle 100%
Weight 880KG
Cooling Type Air Cooling Magnetic Separator
Composite Iron core, aluminum coil,Q235 steel plate, motor, belt,carbon steel,mica sheet,ethoxyline resin,etc.
Pakaging of Magnet fixed iron frame with five-plywoodboard and no need fumigation
Lead Time within 15 work days after deposit cofirmed
Payment T/T, Western Union, LC at sight
Warranty 12 months
Notes   1. Please let us know your belt width, separate material,we can make different dimension magnet based on your different requirements.
 2. Our MOQ is 1 set. (Different quantity will with different price.)



Series No.: RCYD

Keywords: Magnetic Separators for Mining



Application:
RCDD series used for removing iron magnetic articles from thicker bed and granularity of the materials as ores, coal, hard coke, limestone, spells, etc.



Classification:
--Electromagnetic Type (with control panel)
--Permanent Type (without control panel)


Discharging Type

--Manual Discharge Type (without motor and belt)

--Self-Discharging Type (with motor and belt)



Cooling Type:
--Air Cooling
--Oil Cooling

--Fan Cooling

(Power-on sustaining rate TD-100%)

Model

Usable belt

width (mm)

Standard erection

height(mm)

Mass(kg) Overall dimension(mm)

Unload

trigger

spec.

Driving motor

power(kw)

A B C D E
RCYD-6 650 200 880 2100 950 420 888 900 2.7 2.2
RCYD-8 800 250 1790 2050 1105 650 1038 1280 2.7 2.2
RCYD-10 1000 300 3060 2240 1310 785 1238 1370 3.3 2.2
RCYD-12 1200 350 4680 2440 1585 875 1512 1350 3.3 4
RCYD-14 1400 400 6600 2700 1765 970 1690 1550 4.1 4
RCYD-16 1600 450 8060 2900 1965 1050 1890 1750 4.2 4
RCYD-18 1800 500 10250 3150 2230 1150 2150 1960 6.8 5.5
RCYD-20 2000 500 12850 3380 2460 1280 2380 2170 16 5.5
Company Information

Mining Permanent Magnetic Separator Rare Earth Advanced Techology Adopted 2

Mining Permanent Magnetic Separator Rare Earth Advanced Techology Adopted 3



Mining Permanent Magnetic Separator Rare Earth Advanced Techology Adopted 4

We provide professional service for customers from over 30 countries. And we exported our main products as lifting magnet, cable reel, magnetic separator to the market as North America, South America, Europe, Southeast Asia/ Mideast,Africa, Australia and so on.



We are also looking for clients in different market to agent our products.Once you have interesting, welcome to contact with us at your convenient time.

Packaging & Shipping

Mining Permanent Magnetic Separator Rare Earth Advanced Techology Adopted 5

(fixed iron frame with five-plywoodboard packing to keep Magnetic Separators for Mining with a safety and long-distance transportation and no need fumigation when clear custom )

FAQ

 Mining Permanent Magnetic Separator Rare Earth Advanced Techology Adopted 6

Mining Permanent Magnetic Separator Rare Earth Advanced Techology Adopted 7

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :



1.what kind of material need to process separation?

2.does it work with belt? if yes, how about the belt width? belt speed?

3.how about the handling capacity you require? and the separation material size?

4.do you need self-discharging type or manual discharge type?

5.rectangular shape or round shape? permanent magnet type or electromagnet type?
