Overband Magnetic Separator for Conveyor Belts

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG Magnetic Separator
Certification: ISO9001:2008
Model Number: RCYB-8
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Standard Export Package(overband magnetic separator for sale)
Supply Ability: 70 Piece/Pieces per Month overband magnetic separator for sale
Condition: New Type: Magnetic Separator, Permanent Magnetic Type Separator
Production Capacity: TBD. Voltage: N.A.
Power(W): 2.2kw Dimension(L*W*H): 800*800*420mm
Weight: 580kg, 580kg Product Name: Overband Magnetic Separator For Conveyor Belts
Color: Red/Yellow Magnetic Source: NdFeB Magnet
Suitable For Belt Width: 800mm Standard Erection Height: 250mm
Suitable For Belt Speed: 2.5m/s Magnetic Field Intensity: 500-700Gs (after Erection Height)
Application: Eliminate Magnetic Tramp Iron From Mine,cement Etc Warranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machinery Overseas Port: Shanghai/Shenzhen/Guangzhou
High Light:

magnetic separator conveyor belts

,

magnetic roll separator

Overband Magnetic Separator for Conveyor Belts

Product Description

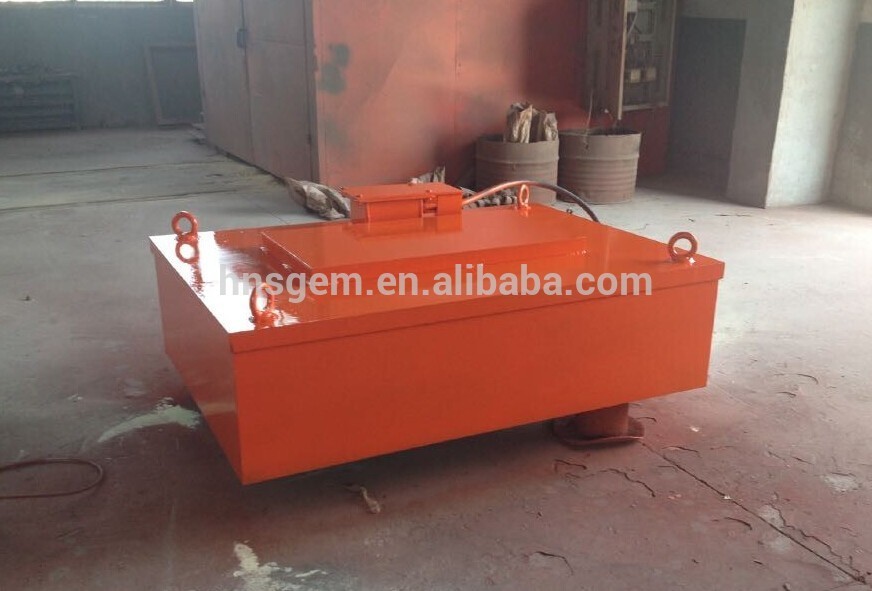

Magnetic Separator Physical Photo:

Overband Magnetic Separator for Conveyor Belts 0



Overband Magnetic Separator for Conveyor Belts 1



Overband Magnetic Separator for Conveyor Belts 2



Application:

RCYB series is suspended over conveyor belt.It is suitable for continuous-duty occasions and remove 0.1-30kg of ferromagnetic material which mixed in the raw material. This equipment has a high magnetic field intensity, no energy consumption and a long service life. It is easy to install and use without maintenance. This equipment is widely used for the iron removal from non-magnetic materials on belt conveyors, vibrating conveyors, vibrating feeders, chutes, etc.



Features:

  • NdFeB magnets for magnetic source of reliable magnetic properties
  • In the depths of non-magnetic materials can absorb up 0.1-0.30kg iron
  • Core guaranteed 10 years under normal circumstances;no more than 5% demagnetization
  • Artificial regularly dumping iron, and is of small size, light weight, easy installation features

Benifits:


-- Long term working
-- Suspending with hooks (height is adjustable
-- Equal magnetic field in the direction of width
-- Clean by hand



Technical Data and Overall Dimension Drawing:

Overband Magnetic Separator for Conveyor Belts 3



 Overband Magnetic Separator for Conveyor Belts 4







FAQ

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.what kind of material need to process separation?



2.does it work with belt? if yes, how about the belt width? belt speed?



3.how about the handling capacity you require? and the separation material size?



4.do you need self-discharging type or manual discharge type?



5.rectangular shape or round shape? permanent magnet type or electromagnet type?



For our relate products you may interested in, kindly click for details:



1. Manual Discharging Type Rectangular Electromagnetic Separator



2.Manual Discharging Type Circular Electromagnetic Separator



3. Self-Discharging Conveyor Belt Electromagnetic Separator



 4. Self- Discharging Oil Cooling Type Rectangular Electromagnetic Separator



5. Manual Discharging Type Rectangular Permanent Magnetic Separator



6. Self-discharging Type Conveyor Belt Permanent Magnetic Separator



7. Lifting Electromagnet for Billet Lifting



8. Lifting Electromagnet for Sheet Plate



*Lifting Magnet Series:

--application for transporating steel scraps, steel plates, billets,etc.

Overband Magnetic Separator for Conveyor Belts 5

*Cable Reel Series:

--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..

Overband Magnetic Separator for Conveyor Belts 7

Company Information

We are a professionl lifting electromagnet equipment manufacturer and exporter. Very sincerely looking for long-term win-win business here!



Major exports include lifting electromagnet, magnetic lifter, electromagnetic separator, cable reel, control cabinet and magnetic stirr, etc. with more than 15 years export experience.



Our factory also pass the SGS audit per year with certification issued.



We warmly welcome you to enquiry or visit us, and also appreciate any of your comments!



We also have our own brand as "SHENGANG"

Overband Magnetic Separator for Conveyor Belts 9 Overband Magnetic Separator for Conveyor Belts 10

Overband Magnetic Separator for Conveyor Belts 11Overband Magnetic Separator for Conveyor Belts 12

Packaging & Shipping

 (fixed iron frame with five-plywoodboard packing to keep overband magnetic separator for sale with a safety and long-distance transportation and no need fumigation when clear custom )

Overband Magnetic Separator for Conveyor Belts 13

Our Services

 Quick Response:

We highly appreciate your any enquiry by email, fax or instant message.

We will reply your email or fax within 24 hours.

Please fell free to call us at any time if there is any questions.



Convenient Transportation:



All available shipping ways could be applied, by courier, air or sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you till the goods arrive.



Overband Magnetic Separator for Conveyor Belts 14
