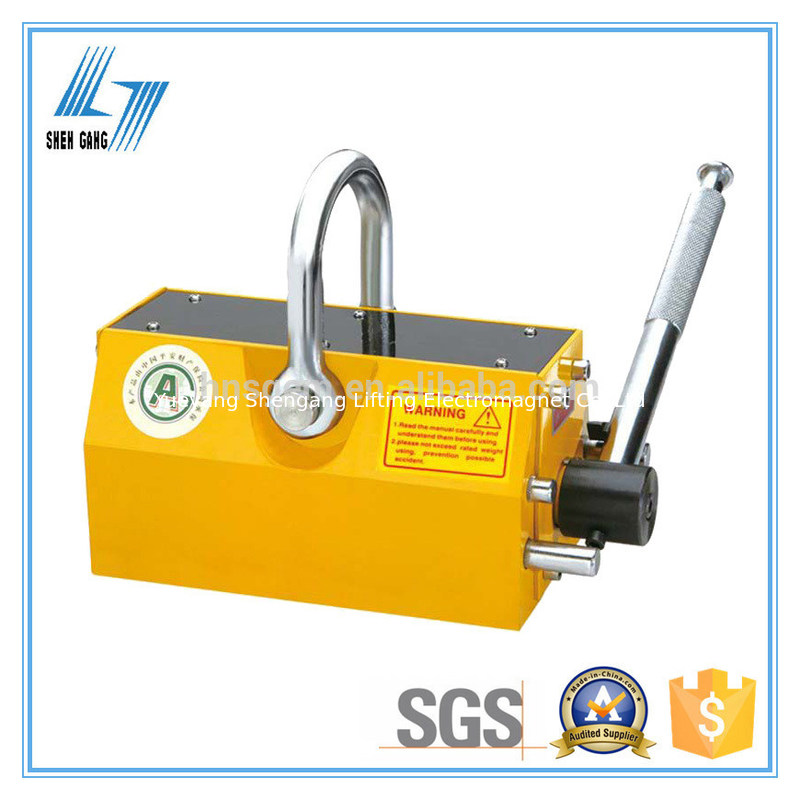

Permanent magnetic lifter, Magnet Lifter

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG Magnetic Lifter
Certification: ISO9001:2008
Model Number: YC1-1 Magnetic Lifter
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Magnetic Lifter)
Supply Ability: 80 Piece/Pieces per Month Magnetic Lifter
Condition: New Dimension(L*W*H): 263*180*219mm
Product Name: Permanent Magnetic Lifter, Magnet Lifter Color: Yellow
Type: Permanent Type Rated Lifting Capacity: 1000kg
Max.Attraction Force: 3000kg Weight: 68kg
Overall Dimension: 263*180*219mm Main Features: Safety Lift And Efficient Machine Loading
Safety Factor: 3.5X Application: Permanent Lifting Magnets Magnet Lifter To Lift Steel Plates
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
Port: Shanghai/Shenzhen/Guangzhou
High Light:

heavy lifting magnets

,

sheet metal lifting device

Permanent magnetic lifter, Magnet Lifter



         Is moving steel plate, rounds and blocks wasting precious time?  Is manual lifting causing back injuries?  Are slow machine set-ups cutting into machine output?



If the answer to any of these questions is "YES", SHENGANG-Lift lifting magnets are for you!



SHENGANG-Lift magnets are the fastest and safest way to transport raw stock and workpieces.



From theLittle SG weighting only 100kg that can safely lift 100kg, with a 3.5X safety factor!



    To the Big SG that lifts up to 2000kg with a 3.5X safety factor!



Product Description

 SHENGNG-LIFT LIFTING MAGNET APPLICATIONS:



Move plate steel, block or round steel and iron material in your shop easily and safely.



Load machines faster.  Load most work pieces to save time and boost production. It's perfect for loading or unloading press molds, plastic molds, machined parts and other ferrous parts and materials.



Fastest and safest way to lift without dangerous slings.



No electricity required. Super-powerful "rare earth" neodymium iron boron magnets require no electricity.  There is no risk in losing lifting force even during power failures.



It is used to lift and transfer the normal temperature steel plates in ship-making industry, engineering mechanical industry, automobile industry and so on. There have three series of YX and YC according to their material unloading modes.



SHENGANG LIFTING MAGNET FEATURES :



  • Rated for loads up to 1000KG.

  • Powerful magnet tested to hold 3.5 TIMES the rated load for maximum safety.

  • Eliminates dangerous straps and slings.

  • For fast, safe, efficient machine loading and unloading



SHENGANG PERMANENT LITING MAGNETS MAGNT LIFTER OPERATION:



First center the magnet on the piece to be lifted.  Then simply move the lever to the "ON" position to engage the magnet.  Spring-loaded lock keeps magnet engaged until you release it.



BENEFITS: SAFE MATERIAL HANDLING & INCREASED PRODUCTIVITY



MAXIMUM RATED LOADS:



Calculate that the magnet will safely lift your material.  The Maximum Load (ML) is different for plate and round materials and also depends upon stock thickness, carbon content, and surface finish.  Use these formulas and tables to calculate the ML for your material type.



YC-1 Permanent Lifting Magnets Magnet Lifter Main Technical Data:



Model    Max.Attraction Force(Kg)Rated Lifting Capacity(Kg)Overall Dimension(mm)Weight(Kg)
ABCD
YC1-0.260020013011012425012
YC1-0.390030018011012427016
YC1-0.5150050025811012438025
YC1-13000100026318021941268
YC1-260002000288220269552150



  YC-1 Permanent Magnetic Lifter Overall Dimension:

Permanent magnetic lifter, Magnet Lifter 0



Permanent magnetic lifter, Magnet Lifter 1

Permanent magnetic lifter, Magnet Lifter 2



FAQ



In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1. What kind of the materials you want to lift?  Steel plate( length*width*thickness)



2. What' s the lifting capacity you expect per time?
