| Place of Origin: | Hunan, China (Mainland) |
|---|---|
| Brand Name: | SHENGANG LIFTING MAGNET |
| Certification: | ISO9001:2008 |
| Model Number: | MW5-150L/1 Lifting Magnet |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard export package (200kg Lifting Magnet) |
| Delivery Time: | 10 workdays after signed the contract |
| Supply Ability: | 90 Piece/Pieces per Month |
| Condition: | New | Dimension(L*W*H): | 1500*1500*340mm |
|---|---|---|---|
| Product Name: | Powerful Circular Lifting Magnet For Scraps | Shape: | Circular Lifting Magnet |
| Current: | 71.2A | Rated Voltage: | 220V |
| Power: | 15.6KW | Lifting Capacity For Steel Scrap: | 1100/900kg |
| Lifting Capacity For Steel Ball: | 11000kg | Lifting Capacity For Cast Iron: | 1900/1500kg |
| Weight: | 2830kg | Application: | Suitable For Transporting Steel Scraps Under Normal Temperature |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 12 Months |
| Port: | Shanghai/Shenzhen,Guangzhou Etc. | ||
| High Light: | electromagnetic lifting magnet,magnetic lifting device |
||

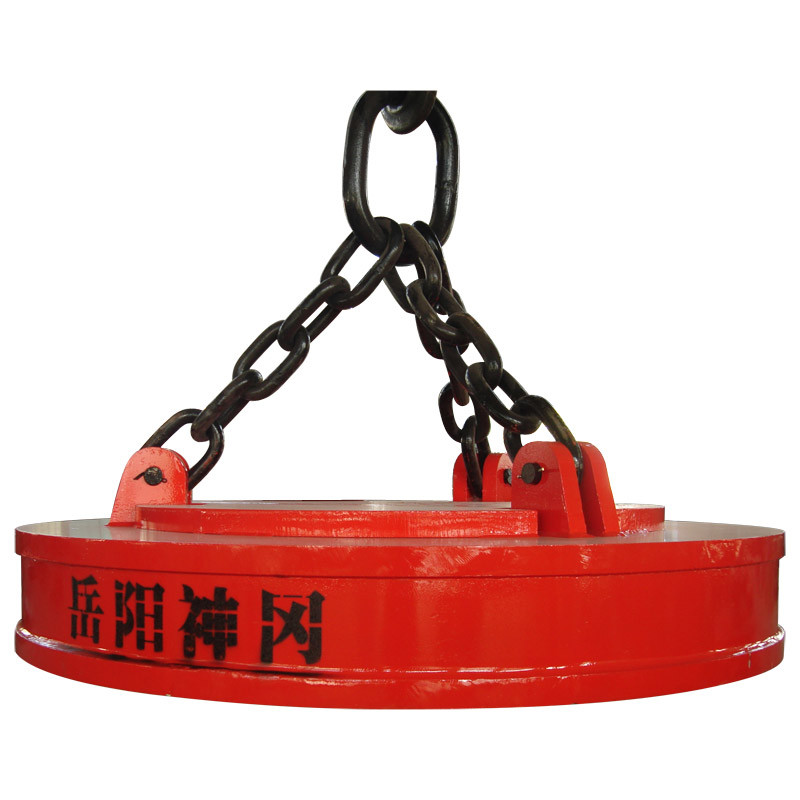

Powerful Circular Lifting Magnet for Scraps
Main Features:
Benifits:
Main Technical Data:
Voltage: DC-220V
Normal Temeprature:Below 100°c
Duty Cycle: TD-60%
|
Model |
Current(A) |
Power(KW) |
Lifting capability(KG) |
Weight(KG) |
Dimention(mm) |
||||||
|
Steel ball |
Steel ignot |
Crop end |
A |
B |
C |
D |
E |
||||
|
MW5-70L/1 |
15 |
3.3 |
2500 |
380/200 |
120/100 |
490 |
700 |
800 |
160 |
90 |
30 |
|
MW5-80L/1 |
18 |
3.96 |
3000 |
480/250 |
150/130 |
620 |
800 |
800 |
160 |
90 |
30 |
|
MW5-90L/1 |
26.6 |
5.9 |
4500 |
650/440 |
250/200 |
800 |
900 |
1090 |
200 |
125 |
40 |
|
MW5-110L/1 |
35 |
7.7 |
6500 |
1000/800 |
450/400 |
1350 |
1100 |
1140 |
220 |
150 |
45 |
|
MW5-120L/1 |
45.5 |
10 |
7500 |
1300/1000 |
600/500 |
1700 |
1200 |
1180 |
220 |
150 |
45 |
|
MW5-130L/1 |
54 |
12 |
8500 |
1400/1100 |
700/600 |
2010 |
1300 |
1240 |
250 |
175 |
50 |
|
MW5-150L/1 |
71.2 |
15.6 |
11000 |
1900/1500 |
1100/900 |
2830 |
1500 |
1250 |
350 |
210 |
60 |
|
MW5-165L/1 |
75 |
16.5 |
12500 |
2300/1800 |
1300/1100 |
3200 |
1650 |
1590 |
370 |
230 |
75 |
|
MW5-180L/1 |
102 |
22.5 |
14500 |
2750/2100 |
1600/1350 |
4230 |
1800 |
1490 |
370 |
230 |
75 |
|
MW5-210L/1 |
129 |
28.4 |
21000 |
3500/2800 |
2200/1850 |
7000 |
2100 |
1860 |
400 |
250 |
80 |
|
MW5-240L/1 |
154 |
33.9 |
28000 |
4800/3800 |
2850/2250 |
9000 |
2400 |
2020 |
450 |
280 |
90 |
Overall Dimension Drawing:
Complete set of Equipment:
· Lifting magnet;
· Spring type cable reel with Cable;
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type);
· Cable connector / Quick coupling.
Application:
Production:
Packaging & Shipping
Q: Why customers choose us?
A: We are a professional lifting electromagnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.
Q: Can I have product with our design and nameplate?
A: Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.
Q: How long is your delivery time?
A: Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.
Q: What is your warranty and after service?
A: Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.
About Enquiry:
To help you get the best lifting electromagnet for your application, please kindly provide the following information:
1. What are the materials you want to lift?
Steel scraps,ingot,ball,steel billet, plate, rebas etc. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information:Voltage(V), DC/AC,Frequency(Hz), and information for overhead crane: single beam or double beam, single hook or double hook, how about its loading capacity?
5.Do you need only magnet or full set equipment with cable reel, control cabinet and cable connector?
6.Do you prefer FOB or CIF price, which is the destination port?
(More details, please feel free to contact us directly. )
Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.
Convenient Transportation:
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
