Reasonable Design Industrial Strength Magnets Low Energy Consumption

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG Electromagnet for Excavator
Certification: ISO9001:2008
Model Number: MW5-180L/1 Electromagnet for Excavator
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Standard export package (Electromagnet for Excavator)
Supply Ability: 80 Piece/Pieces per Month Electromagnet for Excavator
Condition: New Dimension(L*W*H): 1800*1800*420MM
Product Name: Round Lifting Electromagnet For Excavator To Transport Scraps Shape: Circular Electromagnet For Excavator
Color: Red Rated Voltage: 220V
Power: 22.5KW Current: 102.4A
Lifting Capacity: 1600/1350kg Weight: 4230kg
Diameter: 1800mm Application: Excavator Lifting Magnet To Lift Steel Scraps On Excavator
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12months
Port: Shanghai/Shenzhen
High Light:

material handling equipment

,

magnetic lifting handle

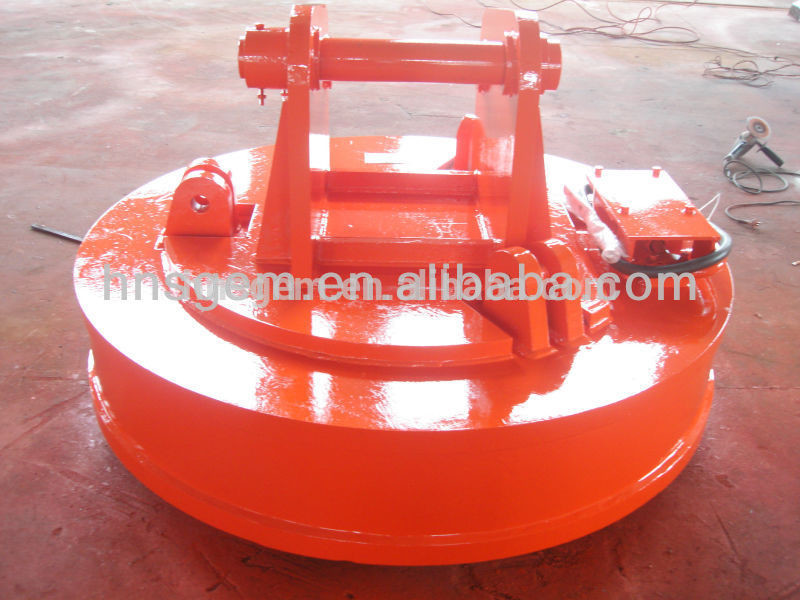

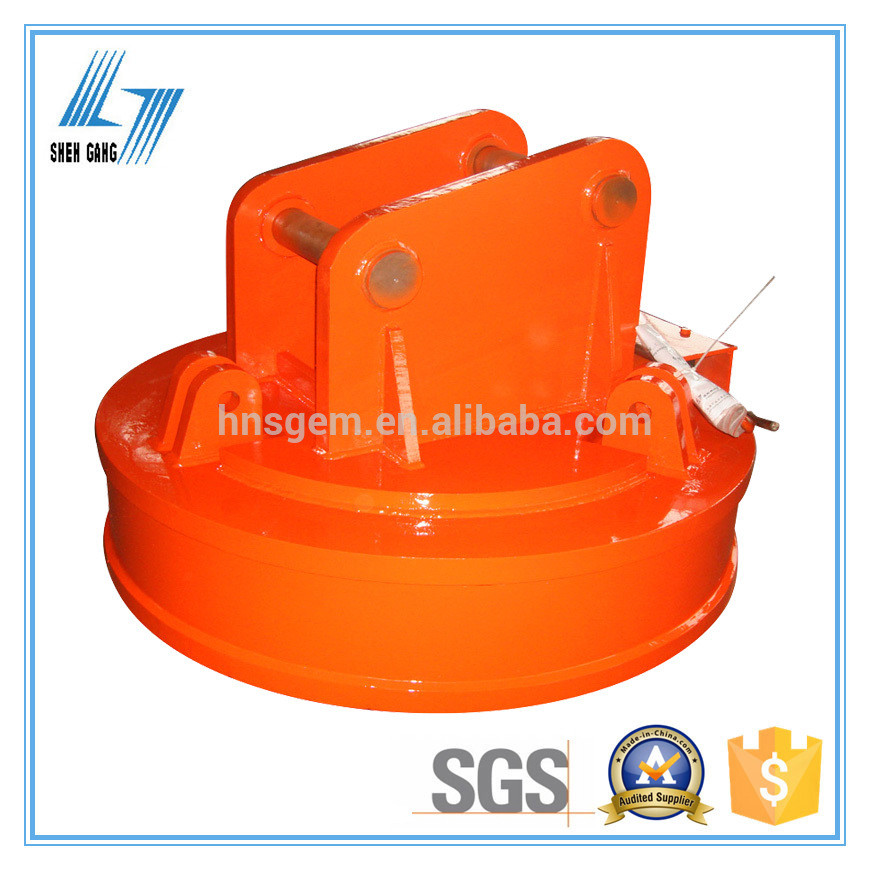

Round Lifting Electromagnet for Excavator to Transport Scraps



--MW5 Series



Product Description

 Main Features:

  • Adopt totally sealing structure with good property of moisture-proofing
  • Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy consumption
  • The energizing coils are processed by special technology to improve the electrical property and mechanical property. Heat-resistant grade of insulating material reaches grade C with long service life
  • Rated power-on sustaining rate of normal type electromagnet is increased from 50% to 80%,which improves the efficiency of the electromagnet
  • High temperature type electromagnet adopts unique method of heat protection, the temperature of the attached materials is increased from 600 °C to 700 °C, which expands application range of the electromagnet
  • Simple and convenient installation, operation and maintenance

Benifits:

  • STRONG ATTRACTION FORCE AND ENERGY SAVING
  • NORMAL & HIGH TEMPERATURE OPTIONAL
  • SIMPLE OPERATION AND MAINTENANCE

Application:



MW5 Series lifting magnet is suitable for transporting cast ingot, steel ball and various kinds of steel scraps.

Technical Data:



(Normal temperature type,Rated voltage DC-220v, Duty cycle TD-60%)

Model

Current(A)

Power(KW)

Lifting capability(KG)

Weight(KG)

Dimention(mm)

Steel ball

Steel ignot

Crop end

A

B

C

D

E

MW5-70L/1

15

3.3

2500

380/200

120/100

490

700

800

160

90

30

MW5-80L/1

18

3.96

3000

480/250

150/130

620

800

800

160

90

30

MW5-90L/1

26.6

5.9

4500

650/440

250/200

800

900

1090

200

125

40

MW5-110L/1

35

7.7

6500

1000/800

450/400

1350

1100

1140

220

150

45

MW5-120L/1

45.5

10

7500

1300/1000

600/500

1700

1200

1180

220

150

45

MW5-130L/1

54

12

8500

1400/1100

700/600

2010

1300

1240

250

175

50

MW5-150L/1

71.2

15.6

11000

1900/1500

1100/900

2830

1500

1250

350

210

60

MW5-165L/1

75

16.5

12500

2300/1800

1300/1100

3200

1650

1590

370

230

75

MW5-180L/1

102

22.5

14500

2750/2100

1600/1350

4230

1800

1490

370

230

75

MW5-210L/1

129

28.4

21000

3500/2800

2200/1850

7000

2100

1860

400

250

80

MW5-240L/1

154

33.9

28000

4800/3800

2850/2250

9000

2400

2020

450

280

90



Overall Dimension Drawing:

Reasonable Design Industrial Strength Magnets Low Energy Consumption 0

Reasonable Design Industrial Strength Magnets Low Energy Consumption 1



Reasonable Design Industrial Strength Magnets Low Energy Consumption 2
